Combined Rice Milling and Corn Crushing Machine

This combined machine mills rice and crushes corn. It features adjustable settings and a dual-hopper design for efficient processing.

Request a Quote Download PDFPDF

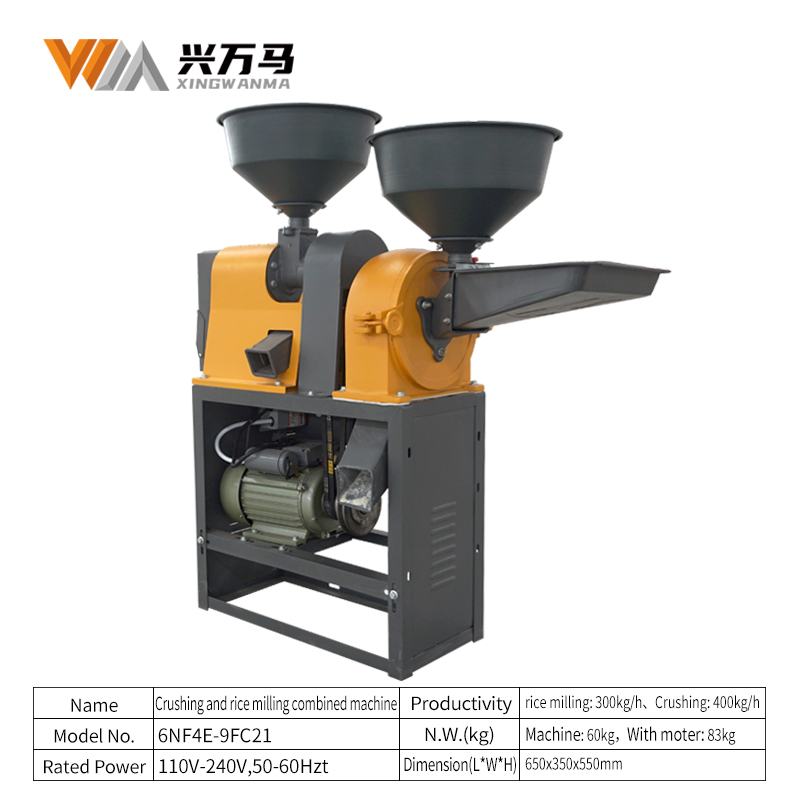

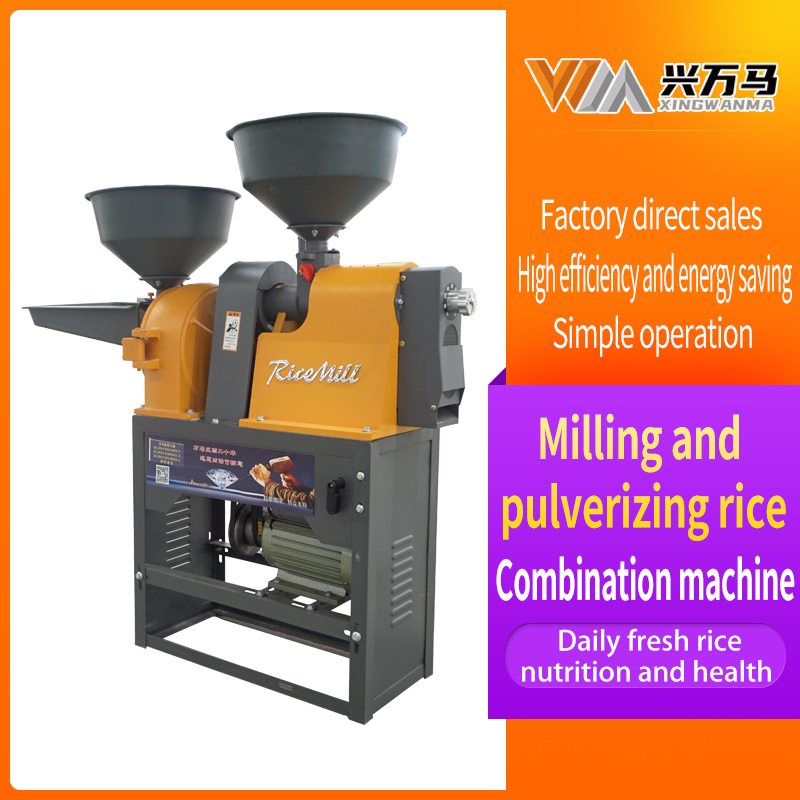

Diamond I 6NF4E-9FC21 combined rice machine - Image 1

Technical Specifications

Overview

Versatile 2-in-1 Agricultural Processing Solution

The 6NF4E-9FC is a mature, combined rice milling and crushing machine designed for high-efficiency primary processing of agricultural products. It features a unique integrated design that allows for automatic switching between milling and pulverizing without the need to change drive belts. Built for durability and ease of use, this machine is ideal for producing fresh rice and processing various grains for nutritional and medicinal applications.

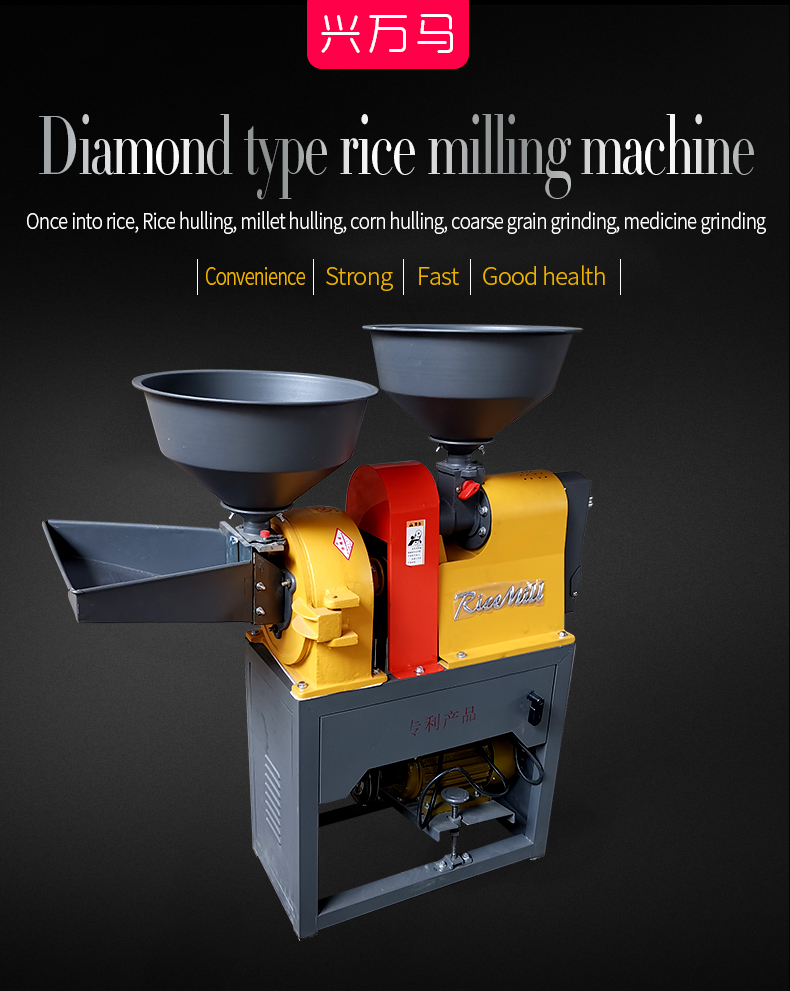

Diamond type rice milling machine overview — Multifunctional machine capable of rice hulling, millet hulling, and grain grinding in one pass.

Performance Metrics

Processing Capacity

160 kg/h

Rice Milling (Min)

220 kg/h

Rice Milling (Max)

180 kg/h

Crushing (Min)

200 kg/h

Crushing (Max)

Technical Specifications

Power & Electrical

Parameter	Value
Rated Power	2.2 kW
Rated Voltage	110V-240V (50-60Hz)
Motor Speed	2800 r/min
Power Consumption	0.9-1.2 kW.h/100kg

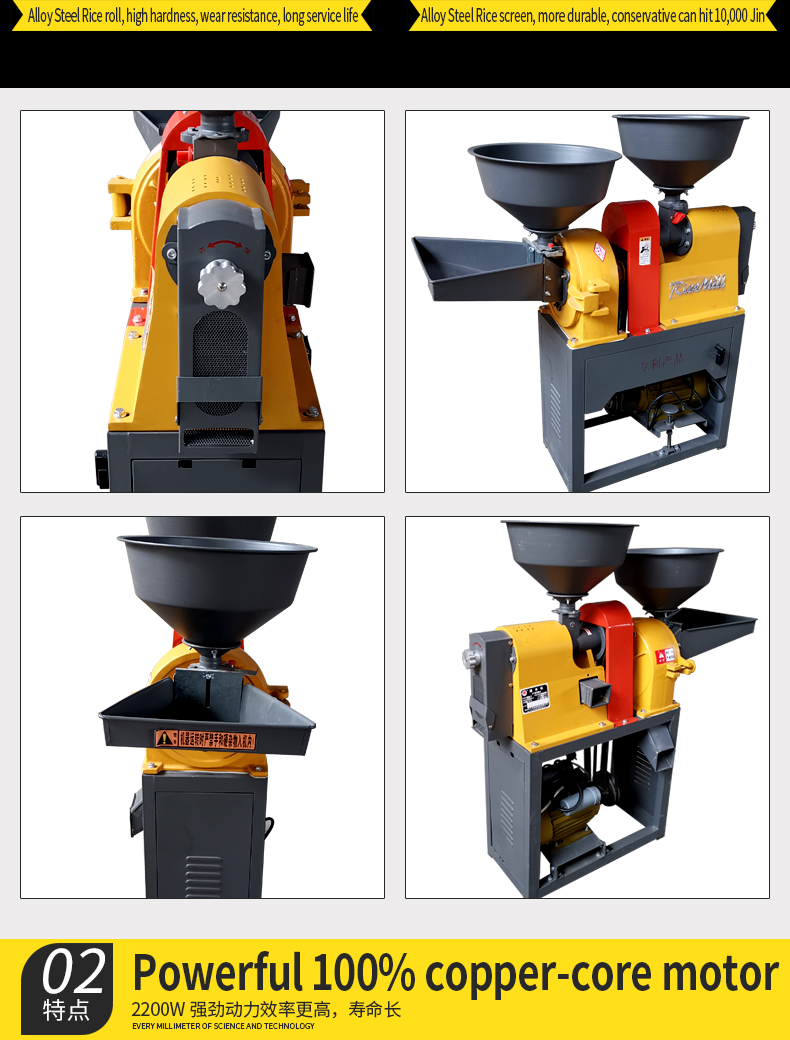

Motor Type	100% Copper-core

Operational Speeds

Component	Speed Range
Rice Milling Spindle	1400-1600 r/min
Powder Machine Spindle	5000-5500 r/min
Fan Speed	3600-4000 r/min

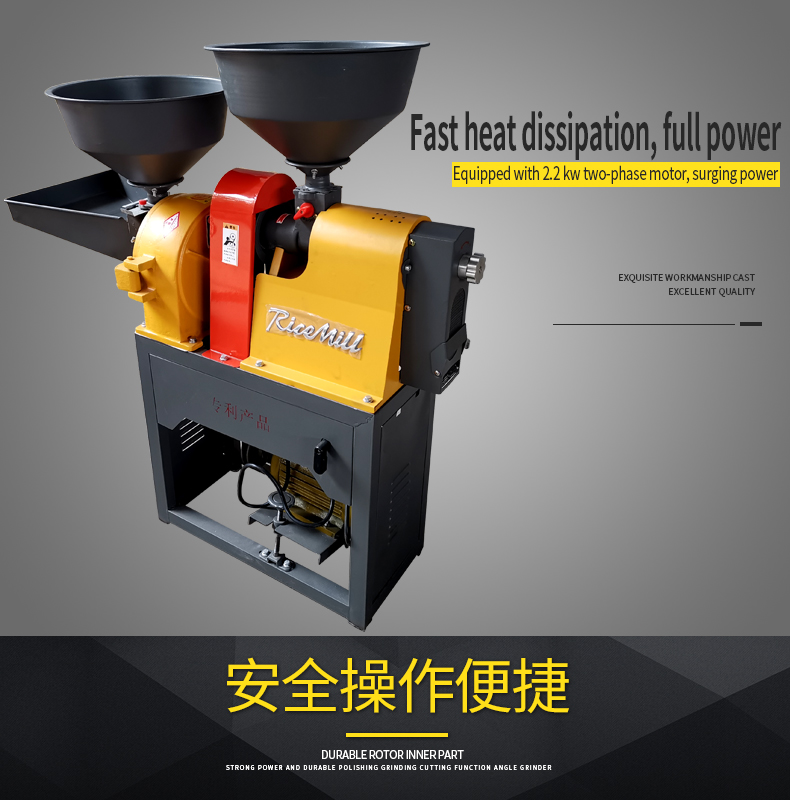

Motor and heat dissipation system — Equipped with a 2.2 kW two-phase motor featuring fast heat dissipation for continuous operation.

Application

Milling Applications: RiceCornCoffee BeansGranular MedicineMilletCoarse Grains
Crushing Applications: SoybeanLentilChiliPepperLotus SeedWheatSorghumLicoriceGanoderma
