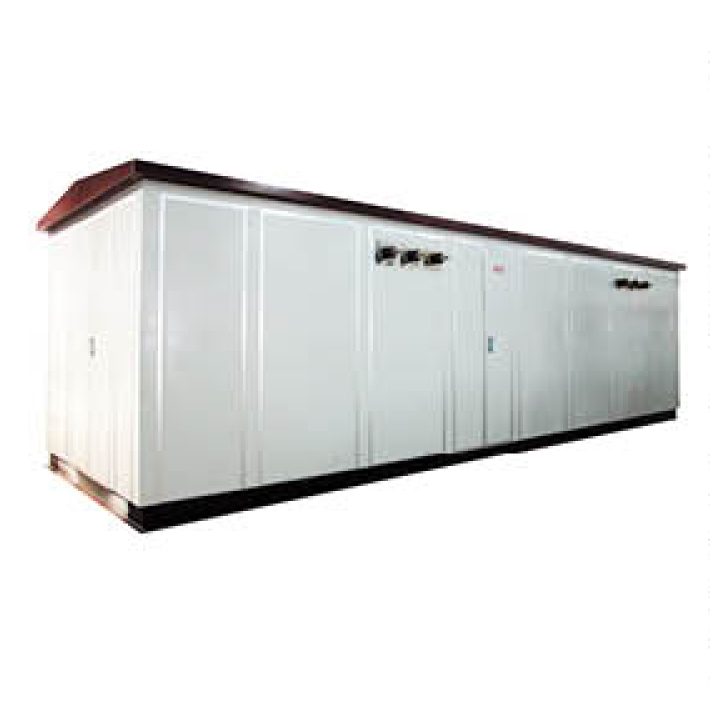

Combined Power Distribution Substation
This combined substation features a compact structure and high reliability for efficient power distribution. It allows for minimal on-site installation, a short installation period, and easy mobility.
Technical Specifications
Overview
Combined Power Distribution Substation
This prefabricated combined power distribution substation is an integrated solution designed for efficiency and reliability in modern electrical networks. Featuring a compact structure, it significantly reduces on-site installation time and workload, making it an ideal choice for urban, rural, and industrial power distribution applications. Engineered for mobility and robustness, the unit ensures high performance while maintaining a minimal footprint and adhering to environmental standards.
Operational Environment
Operating Environment Requirements
- Altitude: ≤1000m
- Ambient temperature range: -25°C to +40°C
- Relative humidity: Daily average ≤95%, Monthly average ≤90%
- Installation site: Indoor, no fire or explosion danger, free of corrosive gas or dust, and no sharp impacts
Technical Specifications
Technical Parameters
| Model | Rated Voltage (kV) | Rated Capacity (kVA) | Change (kV/kV) |
|---|---|---|---|
| SZ7 | 35 | 400-20000 | 35/10, 35/6.3, 35/0.4 |
| SZ9 | 35 | 400-20000 | 35/10, 35/6.3, 35/0.4 |
Product Features
- Key Features
- Compact StructurePrefabricated DesignHigh ReliabilityMobile ConfigurationLow Installation WorkloadWeatherproof Enclosure
