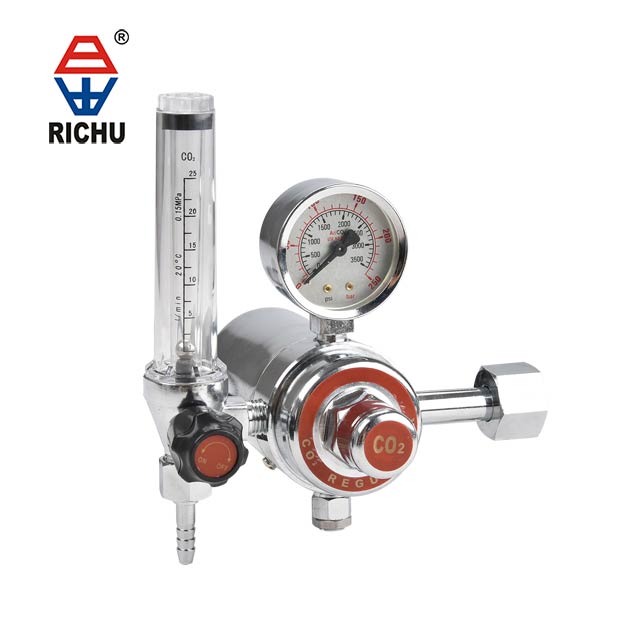

CO2 Gas Heater Regulator with Flow Control
This CO2 heater regulator is designed for accurate gas flow control. It features a pressure gauge, flow meter, and heating element to prevent freezing.
Technical Specifications
Product Overview
Precision CO2 Heater Regulator
This single-stage CO2 heater regulator is engineered for accurate gas flow control in demanding industrial environments. Constructed with a robust forged brass body and steel bonnet, it ensures long-term durability and reliable performance. The unit features a sintered metal inlet filter to protect against impurities and is designed for easy maintenance with no soldered joints, ensuring compliance with EN ISO 2503 standards.
Technical Specifications
- Model Number
- JTR-01B
- Gas Type
- CO2
- Outlet Pressure
- 3.5 Bar
- Voltage Options
- 220V110V36V
Performance Metrics
Performance Specifications
25 Lt./min
Max Flow Rate
200 Bar
Max Cylinder Pressure
Construction & Compliance
Construction Features
- Single stage construction
- Forged brass body
- Steel bonnet
- Sintered metal inlet filter
- No soldered joints for easy maintenance
Compliance Standards
EN ISO 2503
