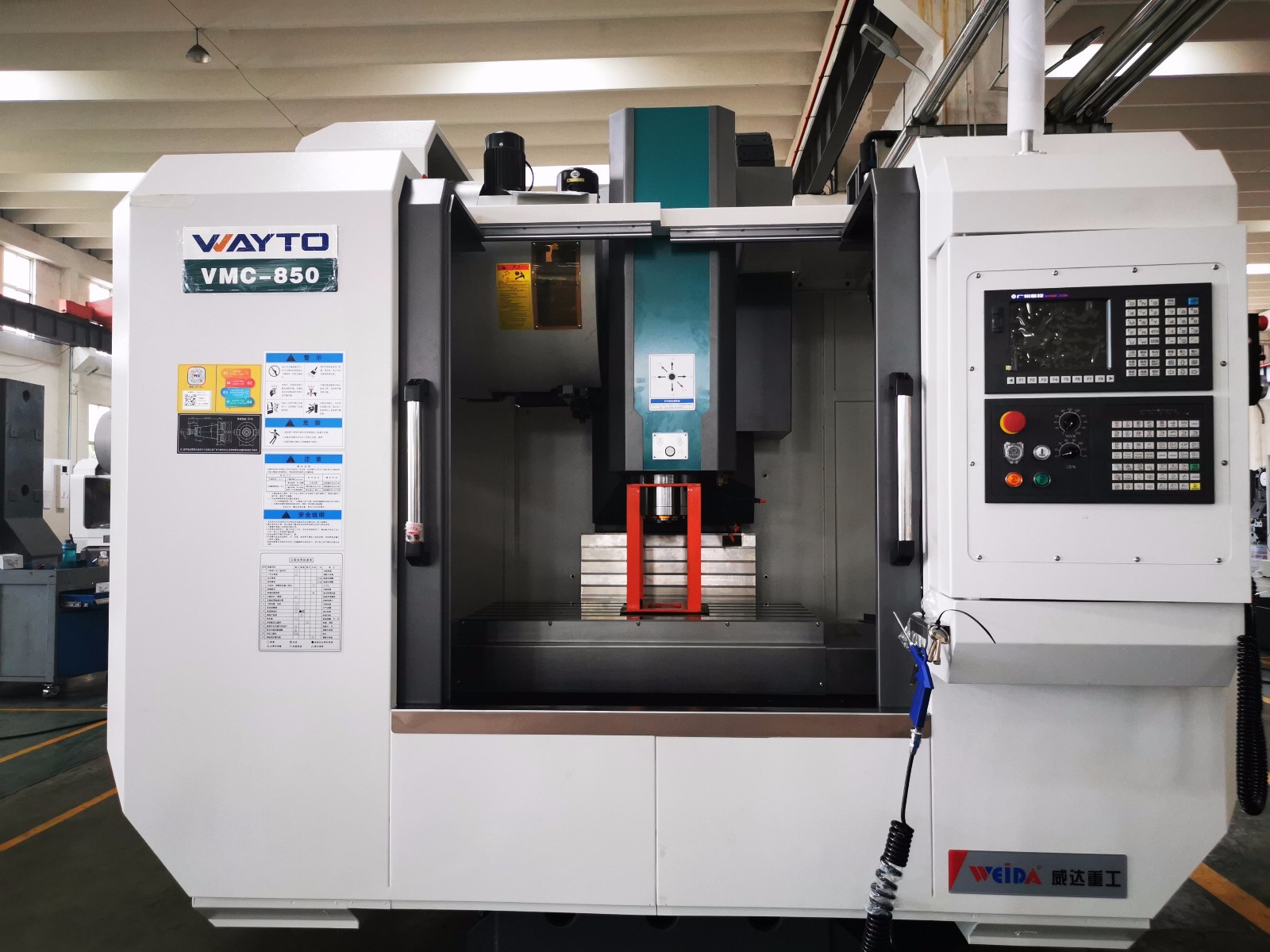

CNC Vertical Machining Center
This vertical machining center is designed for metal cutting, providing a robust frame and advanced CNC control. Its high-speed spindle facilitates efficient material removal, while the automatic tool changer enhances productivity.
Technical Specifications
Product Overview
High-Precision Vertical Machining Center
This CNC Vertical Machining Center is engineered for high-precision metal cutting operations, offering a rigid construction for enhanced stability. Equipped with advanced components like Hiwin linear guide ways and ball screws, it ensures reliable performance for complex part geometries. The integrated automatic tool changer and high-speed spindle system optimize productivity while maintaining tight tolerances in milling, drilling, and tapping tasks.
Performance Metrics
Key Performance Metrics
6,000 RPM
Spindle Speed
500 kg
Table Load
24 pcs
Tool Capacity
Machining Capacity
Worktable Specifications
| Parameter | Value |
|---|---|
| Table Size | 1000x500 mm |
| Max Load | 500 kg |
| T-Slot Number | 5 |
| T-Slot Width | 18 mm |
Travel Range
- Longitudinal (X): 800 mm
- Cross (Y): 500 mm
- Vertical (Z): 550 mm
- Spindle Nose to Table: 150-700 mm
Technical Specifications
Spindle System
- Taper: BT40
- Max Torque: 95 N.M
- Motor Power: 11/15 kw
- Accuracy Standards
- Positioning ±0.005/300mmRepeatability ±0.003mmJIS Standards
- Machine Dimensions
- 2500x2300x2700 mm
Safety and Features
Safety and Equipment Features
Safety Door LockAlarm LightAuto LubricationSpindle BlowingCoolant System
