CNC Vertical Machining Center
This CNC vertical machining center is designed for high-precision metal cutting applications. It features a rigid frame, powerful spindle motor, and advanced control system for efficient material removal and precise part creation.
Technical Specifications
Overview
High-Precision CNC Vertical Machining Center
This series of CNC vertical machining centers is engineered for high-precision metal cutting, including milling, drilling, tapping, and boring. Featuring a rigid cast iron bed and rectangular hardened guideways, these machines provide exceptional stability and accuracy for demanding production environments. With a variety of models available, they offer versatile solutions for professional workshops seeking efficient material removal and reliable performance.
Key Performance Metrics
Key Performance Metrics
0.005 mm
Positioning Accuracy
0.003 mm
Repeatability
24 Tools
Tool Capacity
12 m/min
Rapid Feed Rate
Model Comparison

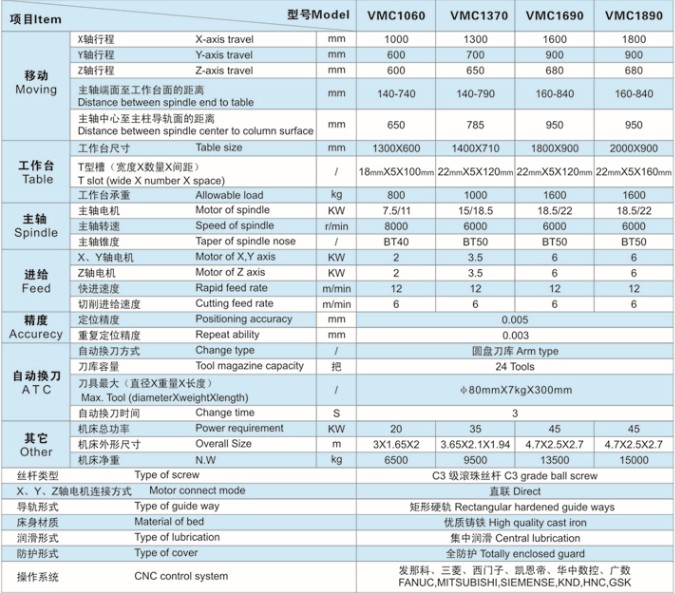

Technical Specifications by Model
| Model | X/Y/Z Travel (mm) | Table Size (mm) | Spindle Power (KW) | Net Weight (kg) |
|---|---|---|---|---|
| VMC1060 | 1000 / 600 / 600 | 1300 x 600 | 7.5 / 11 | 6500 |
| VMC1370 | 1300 / 700 / 650 | 1400 x 710 | 15 / 18.5 | 9500 |
| VMC1690 | 1600 / 900 / 680 | 1800 x 900 | 18.5 / 22 | 13500 |
| VMC1890 | 1800 / 900 / 680 | 2000 x 900 | 18.5 / 22 | 15000 |
Spindle & Tooling
Spindle Taper
BT40BT50
- Tool Changer Type
- Arm type (Disc magazine)
- Tool Change Time
- 3 s
Construction
- Bed Material
- High quality cast iron
- Guideway Type
- Rectangular hardened guide ways
- Ball Screw Grade
- C3 grade ball screw
Control & Systems
- Supported CNC Control Systems
- FANUCMITSUBISHISIEMENSEKNDHNCGSK
- Lubrication System
- Central lubrication
- Machine Protection
- Totally enclosed guard
