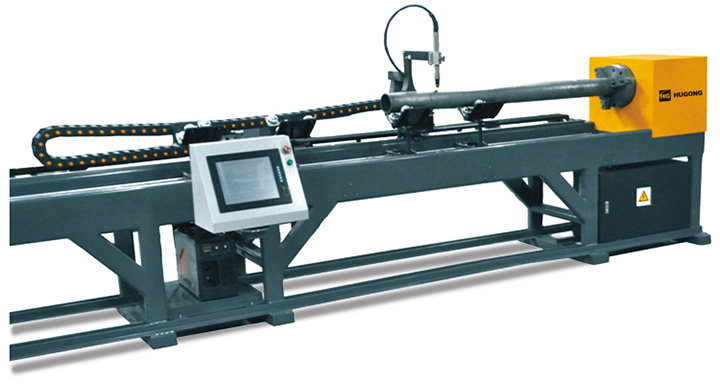

CNC Plasma Pipe Cutting Machine
This CNC plasma pipe cutting machine is engineered for precise and efficient cutting of metal pipes using plasma technology. It features a CNC control system for automated operation and high accuracy.
Technical Specifications
Overview
High-Precision Pipe Cutting Solution
This CNC plasma and flame pipe cutting machine is designed for efficient, automated metal fabrication. It features a robust steel structure and advanced control systems, making it suitable for high-quality, repeatable pipe cutting in industrial environments. With integrated nesting software and versatile cutting processes, it optimizes material usage and streamlines production workflows.
Cutting Capabilities
- Cutting Processes
- Plasma CuttingFlame Cutting
- Flame Cutting Gases
- AcetylenePropaneLPG - O2
Performance Metrics
Key Performance Metrics
6,000 mm/min
Positioning Speed
0.5 mm/1000mm
Positioning Accuracy
0.2 mm/1000mm
Repeating Accuracy
Technical Specifications
Pipe Handling Specifications
| Parameter | Value/Range |
|---|---|
| Diameter Range | 60-315 mm |
| Available Lengths | 3000 mm, 6000 mm |
| Max Loading Capacity | 500 kg (for 3000mm pipe) |
| Max Thickness | 15 mm |
Input Voltage Options
- 110V
- 220V
- 230V
- 240V
- 380V
- 400V
- 415V
Hardware & Control
Nesting Software
G-Code GenerationDrawing ModificationDesign Optimization

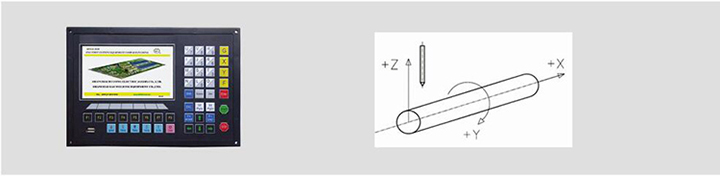

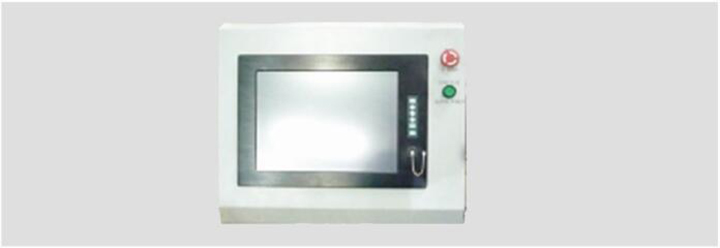

- Control System
- 3-Axis CNC Control with Servo Motor Drive
- Plasma Power Source Compatibility
- Powermax 45Powermax 65Powermax 85Powermax 105Powermax 125
