CNC Plasma and Flame Cutting Machine
The CNC plasma and flame cutting machine is designed for precision cutting of metal sheets, integrating both plasma and flame cutting capabilities. It features a CNC control system for automated path planning and execution, ensuring high accuracy and repeatability.
Technical Specifications
Overview
High-Precision CNC Cutting Solution
This CNC Plasma and Flame Cutting Machine is a versatile industrial solution designed for precision metal fabrication. It combines dual-mode cutting capabilities to handle a wide range of material thicknesses with high accuracy and repeatability. Engineered for reliability, the system integrates advanced CNC controls and robust gantry construction to meet the demanding needs of shipbuilding, automotive, and heavy manufacturing industries.
Performance Metrics
Key Performance Metrics
12,000 mm/min
Positioning Speed
0.5 mm/1000mm
Positioning Accuracy
0.2 mm/1000mm
Repeating Accuracy

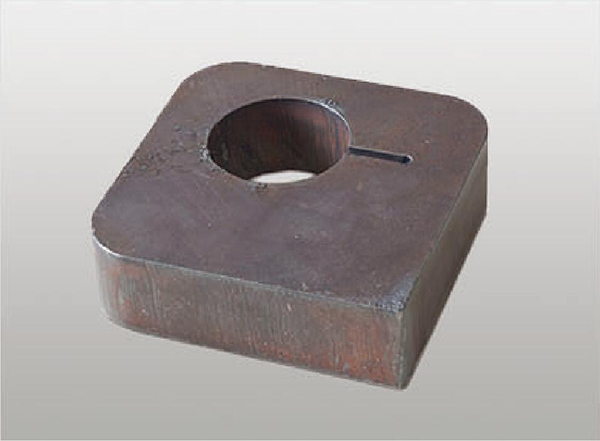

Cutting Capabilities

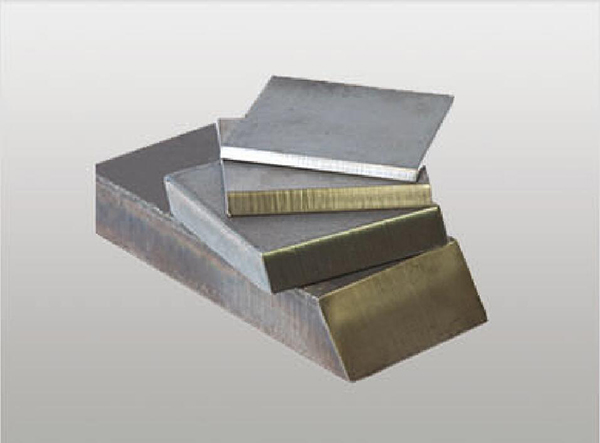

Flame Cutting Specifications
| Parameter | Value |
|---|---|
| Compatible Gases | Acetylene, Propane, LPG |
| Cutting Thickness | 5 - 150 mm |
| Cutting Speed | 50 - 750 mm/min |
- Plasma Cutting
- Thickness and speed are dependent on the specific plasma unit selected (e.g., Powermax, HSD, Maxpro, or HPRXD series).
Technical Dimensions
Rail and Work Area
| Feature | Range/Value |
|---|---|
| Rail Width | 3000 - 6000 mm |
| Effective Cutting Width | 800mm less than rail width (with 2 torches) |
| Standard Rail Lengths | 8000 / 12000 / 16000 mm |
| Effective Cutting Length | 2000mm less than rail length |
System Components
Premium Hardware
- Panasonic Servo Motors
- German NEUGART Gearbox
- TBI or HIWIN Linear Rails
- Schneider Breakers
- Omron Relays
- Automatic Torch Height Control (THC)
Software & Control
- Control System
- Standard HG613 with 17" color monitor and USB port; upgrades available for Micro Edge Pro or Edge Connect.
- Supported Nesting Software
- FastCAM PROLibellulaProNest LTSSigmaNest
Electrical Requirements
Input Voltage Options
- 110/220/230/240V (50/60Hz)
- 220/380/400/415V (50/60Hz)
Operational Workflow
Digital Workflow
- Design: AutoCAD, TEKLA, SolidWorks
- CAM Processing: FastCAM, Libellula, Hypertherm
- Transfer: USB Program Upload
- Execution: CNC Automated Cutting
