CNC Pipe Cutting Machine
This CNC pipe cutting machine is designed for precise and automated cutting of metal pipes. Its 3-axis control system enables efficient and accurate cuts for various industrial applications.
Technical Specifications
Overview

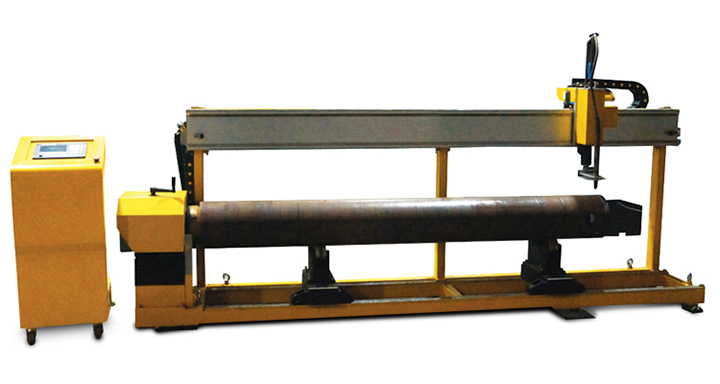

Professional CNC Pipe Cutting Solution
This 3-axis CNC pipe cutting machine is engineered for high-precision automated cutting of metal pipes, featuring a robust frame and a 3-axis gantry system. It supports both flame and plasma cutting modes, making it versatile for various industrial fabrication needs. With a user-friendly interface and integrated nesting software compatibility, it streamlines the workflow from CAD design to finished cut.
Key Performance Metrics
Performance Highlights
3
Control Axes
6,000 mm/min
Max Idle Speed
180 W
Input Power
300 mm
Max Pipe Diameter
Technical Specifications
Model Specifications
| Feature | Model 3 | Model 4 | Model 5 |
|---|---|---|---|
| Effective Cutting Size | 1220 x 2000 mm | 1220 x 3000 mm | 1500 x 3000 mm |
| Transverse Arm | 2000 mm | 2000 mm | 2300 mm |
| Rail Length | 2500 mm | 4000 mm | 4000 mm |
| Total Weight | 130 Kg | 145 Kg | 160 Kg |
Control System

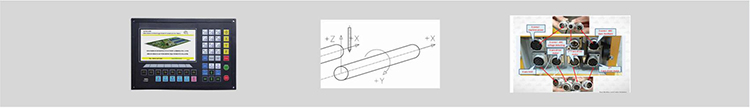

CNC Controller Capabilities
- 7-inch colorful LCD display with keyboard
- Multi-language support (English, Russian, Spanish, French, etc.)
- Built-in library with 44 pre-designed shapes
- USB port for program import/export
- Adjustable pierce time, pulse, and motion parameters

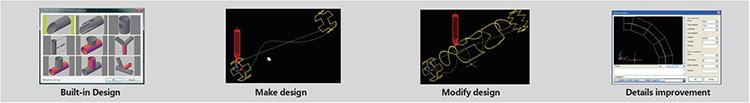

Software & Compatibility
- Software Compatibility
- FreePIPEFastCAMMTCPronest LTSAutoCADTeklaSolidWorks
Mechanical Design

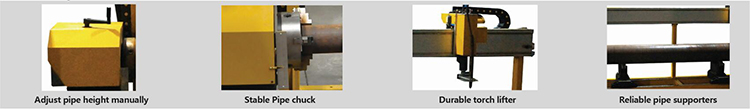

Mechanical Features
- Stable pipe chuck for secure rotation
- Manual pipe height adjustment
- Durable torch lifter for precise positioning
- Reliable pipe supports for stability
- Strong alloy structure for portability
Operation

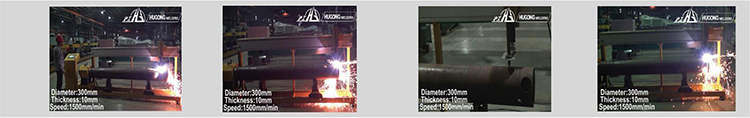

Cutting Parameters
- Flame cutting speed: 6-750 mm/min
- Maximum cutting thickness: 10mm
- Compatible gases: Acetylene, Propane, LPG-O2
- Dual mode: Flame and Plasma cutting supported
- Quick installation: Setup in approximately 30 minutes
- Input Voltage
- 220V (Customizable)
