Overview

Professional CNC Pipe & Tube Cutting Solution

This CNC pipe and tube cutting equipment is a high-precision solution designed for automated industrial fabrication. It features a robust steel structure and a versatile multi-axis control system capable of handling complex geometries including miter joints, branch connections, and saddle cuts. With support for both plasma and oxy-fuel processes, it offers a flexible and efficient workflow for construction, shipbuilding, and manufacturing applications.

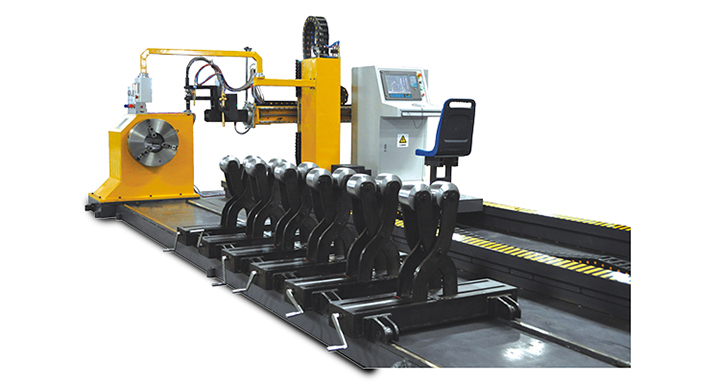

CNC pipe cutting machine with gantry system and rotary chuck — The robust gantry system and rotary chuck allow for high-precision processing of various pipe lengths.

Key Performance Metrics

Performance Highlights

1,200 mm

Max Pipe Diameter

6,000 mm/min

Positioning Speed

0.5 mm/m

Pos. Accuracy (±)

6 Axes

Max Control Axes

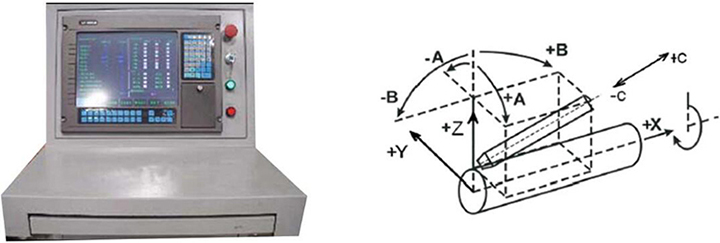

Multi-axis cutting head control diagram — The system supports up to 6 axes for precision beveling and intricate joint preparation.

Technical Specifications

Machine Parameters

Parameter	Details
Cutting Processes	Plasma, Flame (Oxy-fuel)
Pipe Diameter Range	60 - 1200 mm
Available Pipe Lengths	3000, 6000, 12000, 20000 mm
CNC Controller	HG812 (English/Chinese support)
Drive System	Servo Motor
Repeating Accuracy	±0.2 / 1000 mm
Flame Cutting Fuel	Acetylene, Propane, LPG with O2

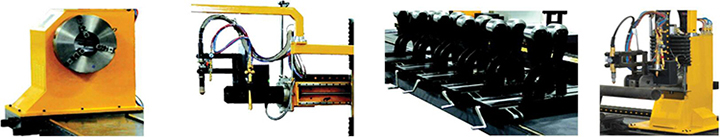

Mechanical structure of the pipe cutting equipment — Industrial-grade mechanical components ensure stability and long-term accuracy in heavy-duty environments.

Control & Software

Software Capabilities

FreePIPE functional suite
Direct input of existing drawings
Easy drawing modification and optimization
Visual representation of programmed cuts
Support for miter, branch, elbow, and saddle cuts
User-friendly interface for real-time monitoring

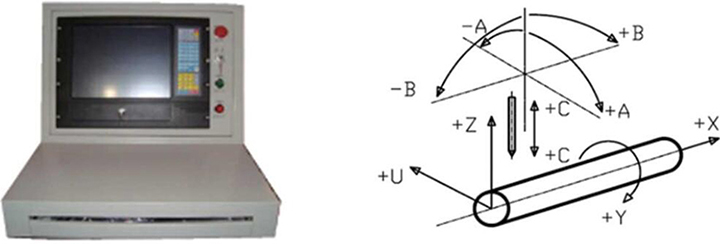

CNC control interface showing multi-axis movement — Advanced multi-axis control (X, Y, Z, A, B, C, U) enables complex geometric cutting paths.

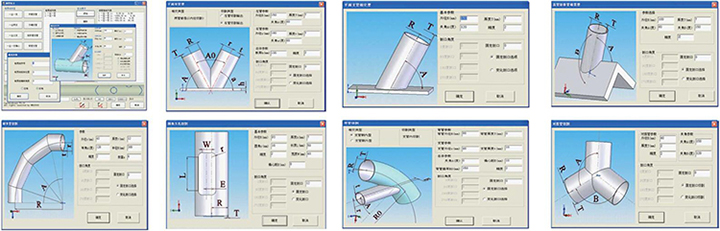

Software interface for pipe joint configuration — Intuitive software for configuring miter joints, branch connections, and saddle cuts.

Operational Features

Operational Benefits: Easy InstallationPortable DesignMulti-Axis Bevel CuttingAutomated Loading/UnloadingHigh RepeatabilityContract Production Ready
