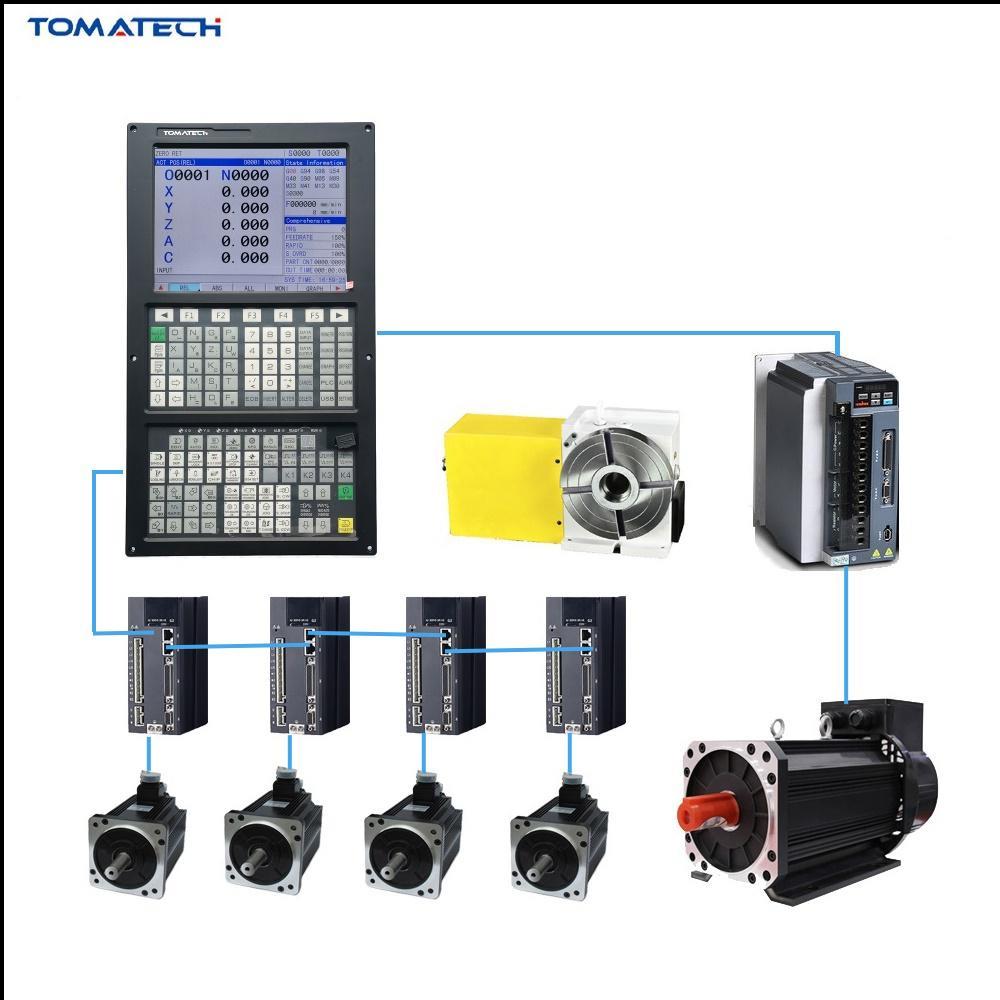

CNC Milling Machine Controller with Vertical Screen
This CNC milling machine controller utilizes stable hardware and an advanced motion control algorithm. It provides a flexible platform for secondary development via PLC Ladder and supports international standard G/M code for 2-5 axis interpolation.
Technical Specifications
Overview
High-Performance CNC Milling Control
This CNC milling controller is built on stable hardware and advanced motion control algorithms, providing a reliable platform for 2-5 axis interpolation. It features a vertical 10.4-inch color screen and a user-friendly interface designed to streamline machine operations. With support for international standard G/M codes and flexible PLC ladder development, it offers a versatile solution for professional milling applications.
Core Processing
- Processor Architecture
- ARM9 + FPGA high-performance processor
Control Performance
Key Performance Metrics
1 ms
Interpolation Cycle
0.1 µm
Control Precision
2 MHz
Command Pulse
System Capacity
- Axis Support
- 3-5 axis optional
- I/O Channels
- 32 Inputs / 32 Outputs
Display & Interface

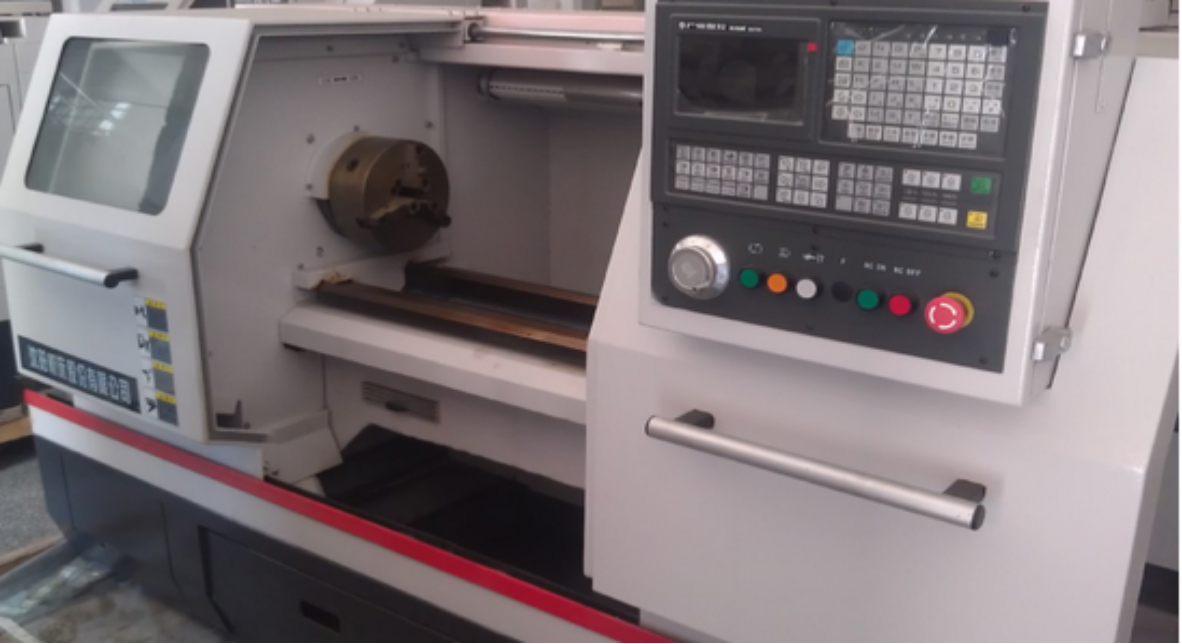

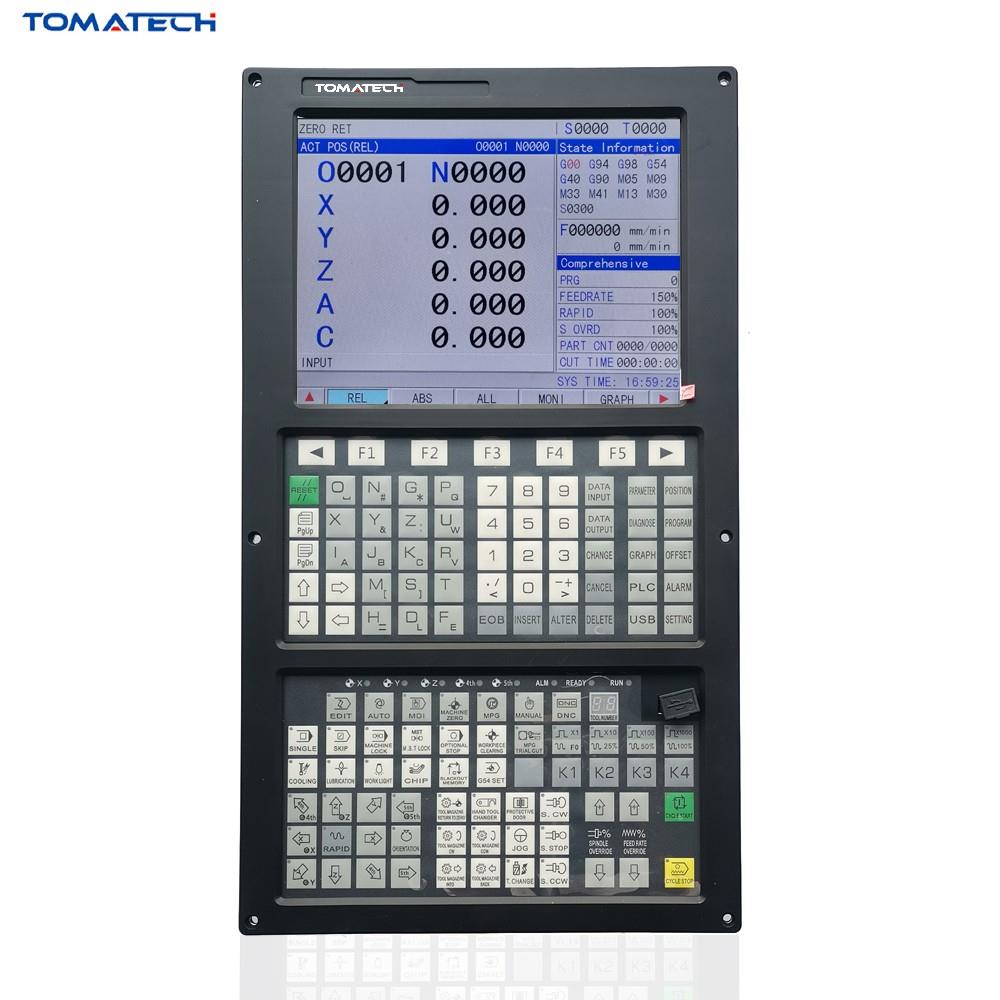

Display Specifications
- 10.4-inch high-resolution color screen
- Vertical orientation for ergonomic viewing
- Real-time graphic simulation and tool path preview
- Comprehensive status monitoring (Position, Feedrate, Spindle)
Software & Programming
- Programming Features
- International G/M CodePLC Ladder LogicRigid TappingFlexible TappingSpiral InterpolationPolar CoordinatesScaling
Advanced Functions
System Capabilities
- Online PLC display and real-time signal tracking
- Multi-level password protection for maintenance
- Optional absolute system connectivity
- Support for band switch panels
- Feedback mechanism for precise motor control
Operational Controls
- Physical Controls
- QWERTY KeyboardEmergency StopFeedrate OverrideSpindle OverrideMPG ModeDNC Support
