CNC Metal Cutting Band Saw
This CNC metal cutting band saw offers easy operation and high efficiency. It is designed for precise and automated cutting of metal materials with a robust frame and programmable control.
Technical Specifications
Overview
High-Precision CNC Metal Cutting Solution

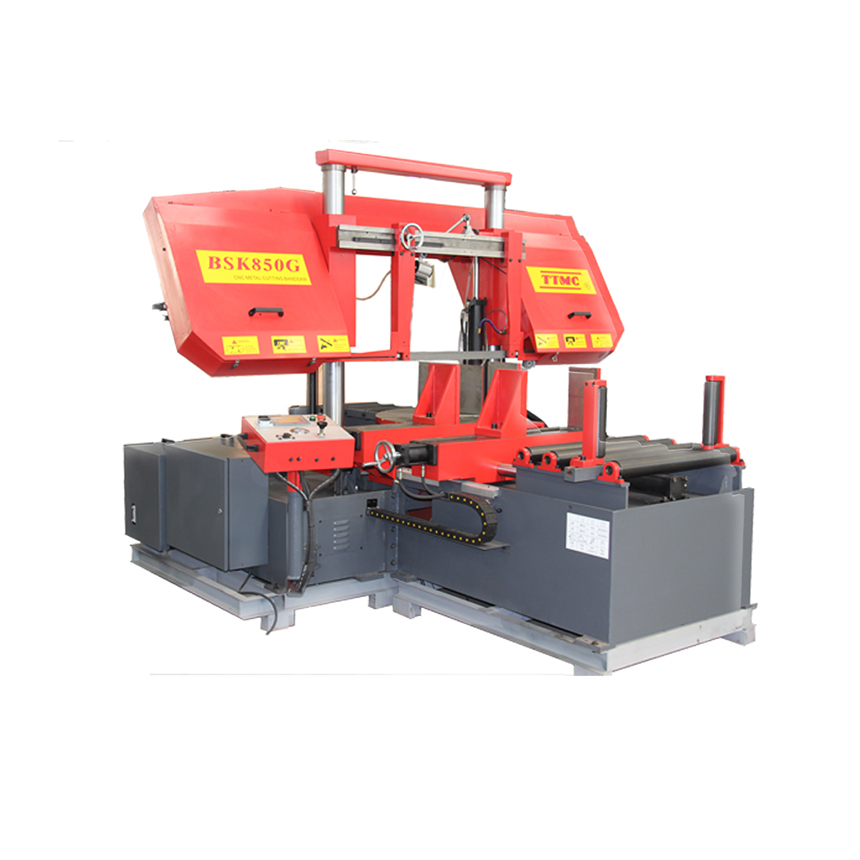

The BS-850G is a heavy-duty CNC automatic band saw designed for high-volume industrial metalworking. Featuring PLC control and a servo-driven variable speed system, it ensures precise feeding and efficient cutting of large-scale metal stock. Its robust construction, integrated chip conveyor, and automatic rotary saw bow make it an ideal choice for professional environments requiring repeatability and accuracy.
Key Performance Metrics
Key Performance Metrics
600 mm
Max Circular Capacity (90°)
5.5 kW
Servo Motor Power
600 mm
Single Feed Distance
Cutting Capacity
Cutting Capacity Details
| Angle | Circular Profile | Rectangular Profile |
|---|---|---|
| 90° | 600 mm | 850 x 600 mm |
| 45° (Right) | 400 mm | 400 x 600 mm |
Technical Features
Automation & Control
- CNC automatic feeding and cutting
- PLC control with touch screen interface
- Servo motor for variable saw speed
- Linear scales for precision feeding guarantee
- Automatic rotary saw bow up to 45°
Mechanical Systems
- Hydraulic clamping vice
- Adjustable operation board position
- Automatic chip conveyor system
- Integrated coolant system
Specifications
- Blade Dimensions
- 54 x 1.6 x 6685 mm
- Item Number
- 388128
- Model
- BS-850G
Logistics & Dimensions
Packing Sizes
- Body: 355 x 212 x 266 cm
- Feeder: 179 x 172 x 149 cm
- Net Weight
- 3945 kg
- Gross Weight
- 4235 kg
Standard Accessories
- Included in Package
- Saw BladeHydraulic Clamping VicePLC Touch ScreenAutomatic Chip Conveyor
