CNC Machine Center

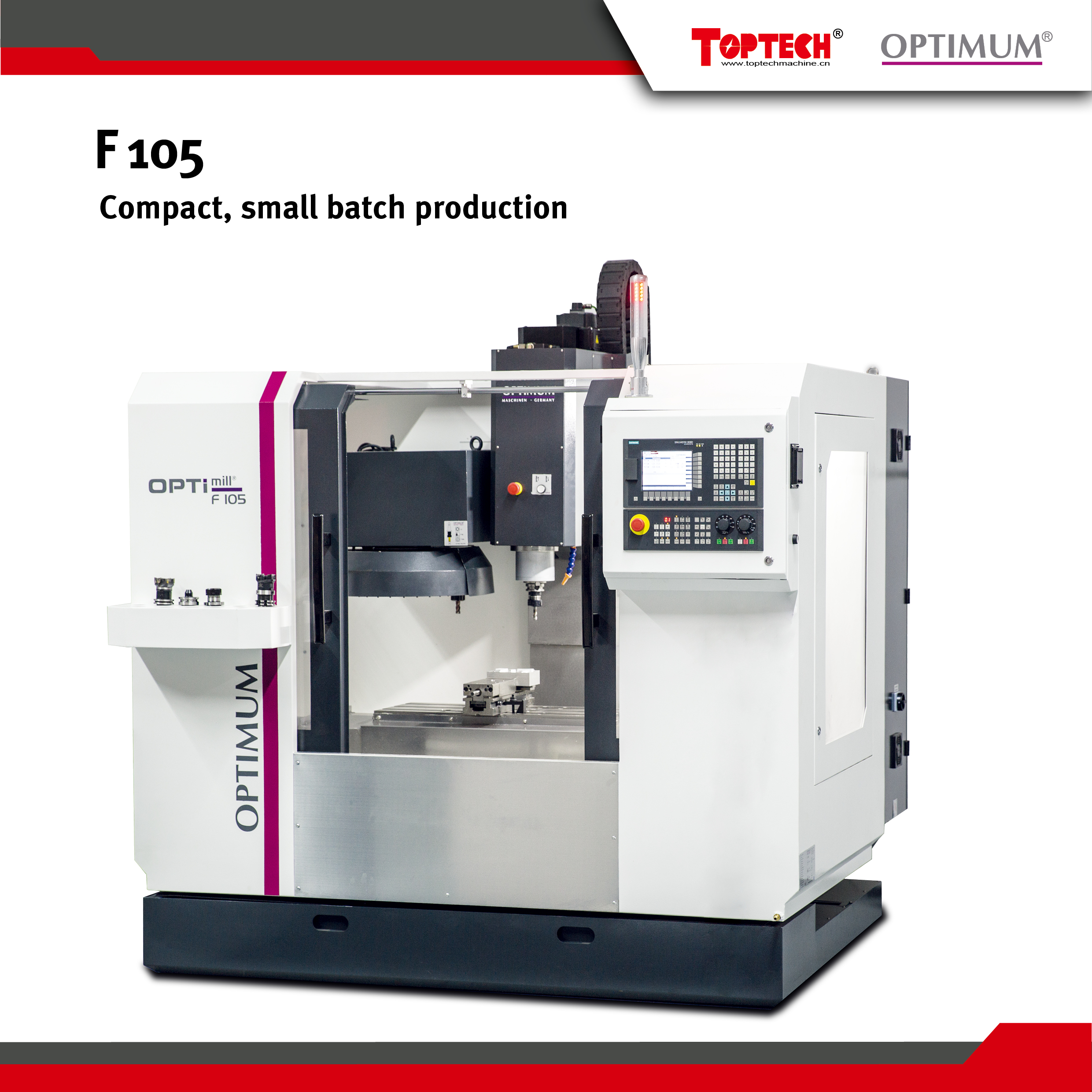

This CNC machine center features imported moving parts for stability and precision. It is equipped with a high-speed servo spindle and a carousel-type tool changer.
Technical Specifications
Overview
High-Precision CNC Machining Center
This compact CNC machining center is engineered for precision metal cutting and small batch production. Featuring high-rigidity German technology and a 10,000rpm servo spindle, it delivers exceptional stability and high-speed performance. Designed to meet EU safety standards, it combines a robust machine bed with advanced linear guides to ensure long-term accuracy and efficiency in demanding industrial environments.
Performance Metrics
Key Performance Metrics
10,000 rpm
Spindle Speed
15 m/min
Rapid Feed Rate
12 tools
Tool Capacity
300 kg
Max Table Load
Technical Specifications
Electrical & Power
| Parameter | Value |
|---|---|
| Total Power | 10 kW |
| Main Motor Power | 5.5 kW |
| Electrical Connection | 400 V / 50 Hz / 3 PH |
| Coolant Pump | 370 W |
Machining Capabilities
Axis Travel
| Axis | Travel Distance |
|---|---|
| X-axis | 550 mm |
| Y-axis | 330 mm |
| Z-axis | 460 mm |
- Spindle Taper
- BT40
Tool Management

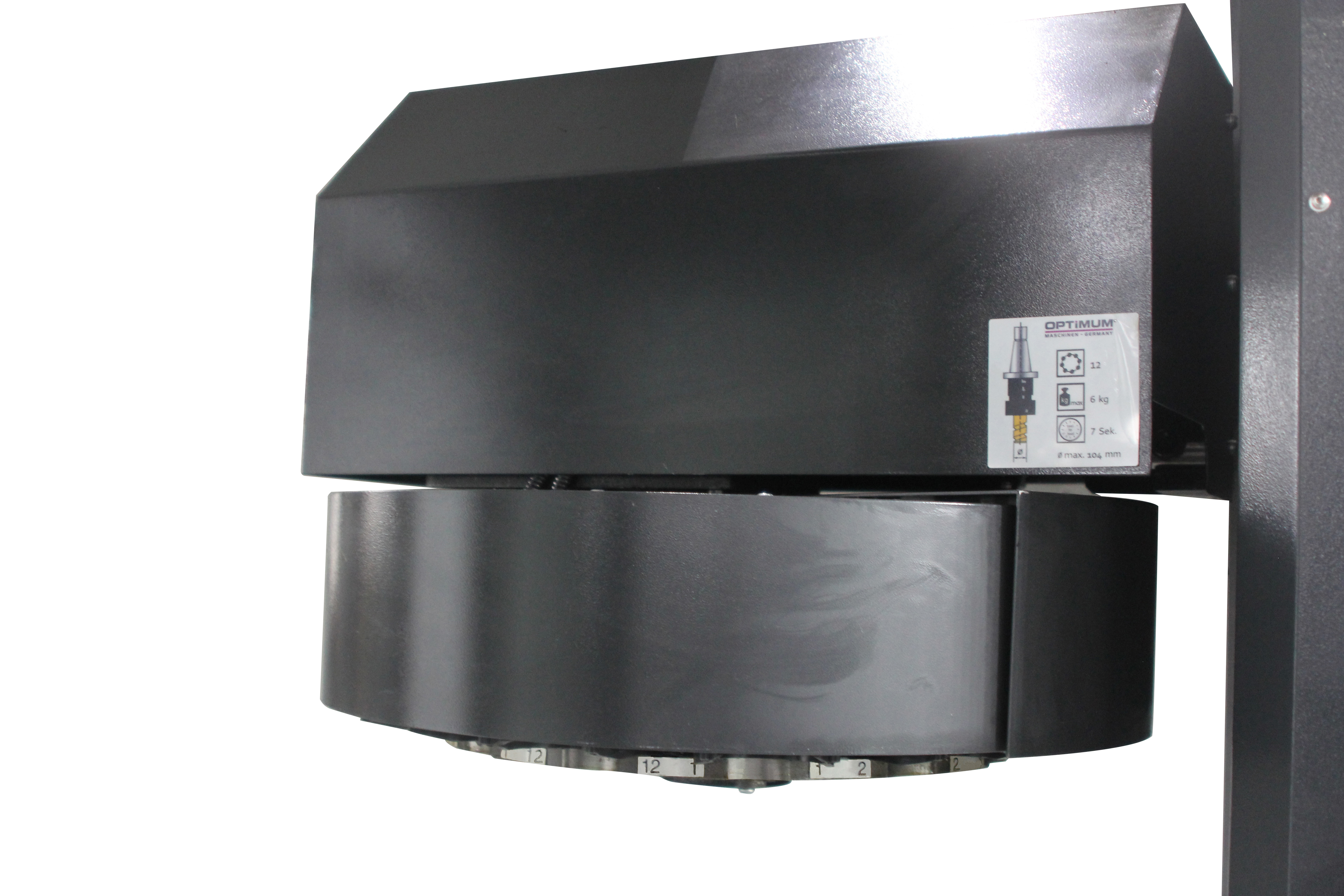

Automatic Tool Changer
- Carousel type tool changer
- 12 tool positions
- 6 second tool change time
- Max tool weight: 6 kg
- Max tool diameter: 104 mm (adjacent)
Precision & Accuracy
Accuracy Standards
| Metric | Value |
|---|---|
| Positioning Accuracy | ±0.01 mm |
| Repeat Positioning Accuracy | ±0.008 mm |
Physical Dimensions
Dimensions & Weight
- Overall dimensions: 2161 x 1856 x 2200 mm
- Net weight: 2800 kg
- Gross weight: 3200 kg
- Tank capacity: 200 L
Compliance & Safety
- Standards & Safety
- CE CertifiedEU Safety StandardsGerman TechnologyLED Lighting
