Technical Specifications
Overview
Industrial CNC Cutting Solution

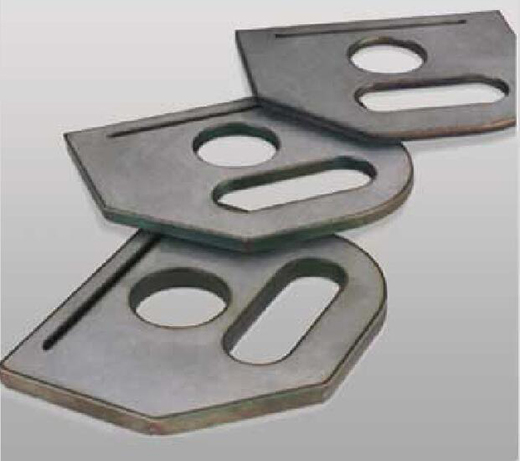

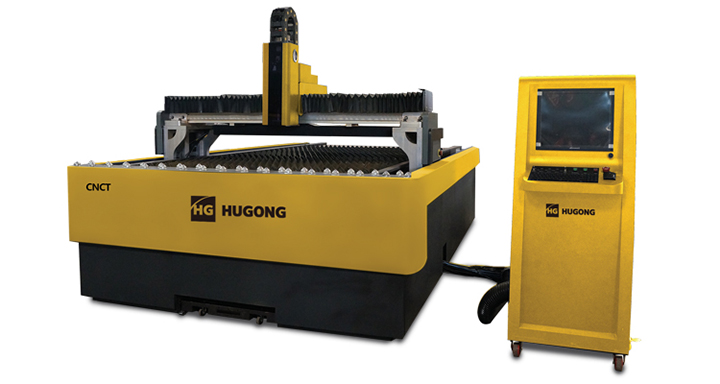

This CNC Flame and Plasma Cutting Machine is a versatile, precision-engineered solution designed for demanding metal fabrication environments. By integrating both flame and plasma cutting capabilities, it offers high efficiency and consistent performance across a wide range of materials, including steel, stainless steel, and aluminum. The system features advanced motion control and automated torch height regulation to ensure high-quality, repeatable cuts for complex industrial applications.
Technical Specifications
Cutting Dimensions
| Parameter | Available Options |
|---|---|
| Cutting Width (mm) | 1500, 2000 |
| Cutting Length (mm) | 3000, 4000, 5000, 6000 |
Performance Metrics
12,000 mm/min
Max Travel Speed
0.5 mm/1000
Positioning Accuracy
0.2 mm/1000
Repeatability
- Power Supply
- 110V220V230V240V380V400V415V50Hz60Hz
System Components
CNC Controller Options
- Standard: Micro Edge Pro
- Upgrade: Edge Pro
- Upgrade: Edge Connection
Torch Height Control (THC)
- Standard THC
- Upgrade: Sensor THC
- Upgrade: ARCGLIDE
- ARC Voltage THC
Nesting Software Options
- Standard: FastCAM
- Upgrade: Libellula
- Upgrade: ProNest2017 LTS
Key Hardware Components
Servo MotorPrecision Gear BoxLinear Rail SystemIndustrial RelaySchneider Breaker
