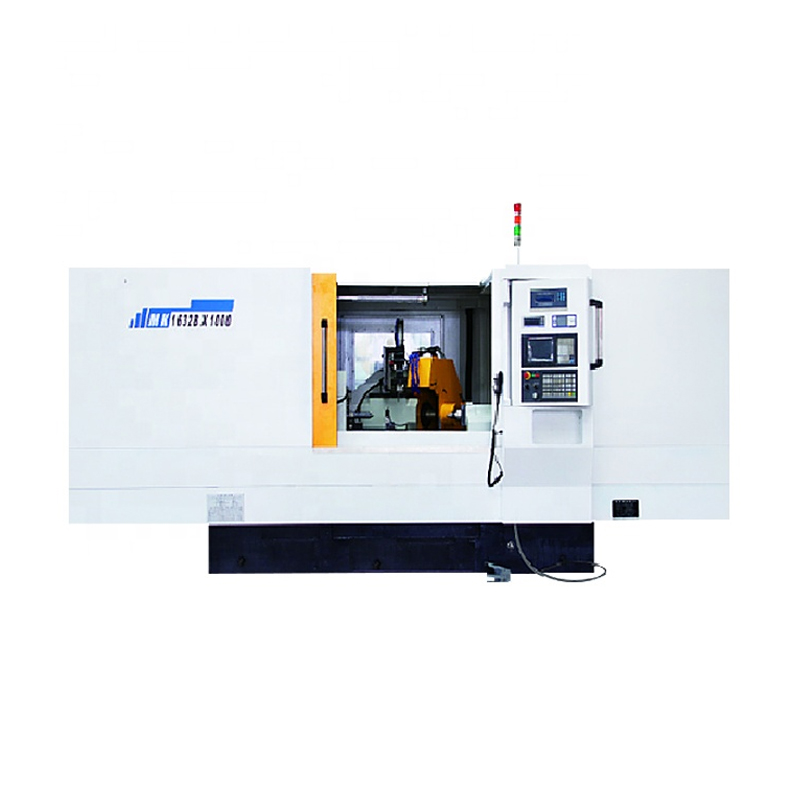

CNC Cylindrical Grinding Machine
This CNC cylindrical grinding machine is designed for accurate and efficient grinding of cylindrical workpieces. It features a robust construction and advanced CNC control system for achieving tight tolerances and excellent surface finishes.
Technical Specifications
Product Overview
High-Precision CNC Cylindrical Grinding
This CNC cylindrical grinding machine is engineered for high-precision grinding operations, offering exceptional accuracy and efficiency for demanding industrial environments. It features a robust, modular design that ensures stability and consistent results, while the advanced CNC control system allows for precise control over grinding parameters. Ideal for batch processing, the machine is perfectly suited for critical components in the automotive, aerospace, bearing, and military industries.
- Key Applications
- AutomotiveAerospaceBearing ManufacturingMilitaryAir CompressorGeneral Engineering
Technical Specifications
Capacity & Dimensions
| Feature | Range/Value |
|---|---|
| Distance Between Centers | 500 - 1500 mm |
| Center Height | 135 - 270 mm |
| Grinding Diameter (OD) | 5 - 500 mm |
| Grinding Diameter (ID) | 25 - 200 mm |
| Max Workpiece Weight | 100 - 1000 kg |
Workhead Specifications
- Swiveling angle up to ±90°
- Center taper (MT): 4 or 6
- Spindle speed: 18 - 380 r/min (model dependent)

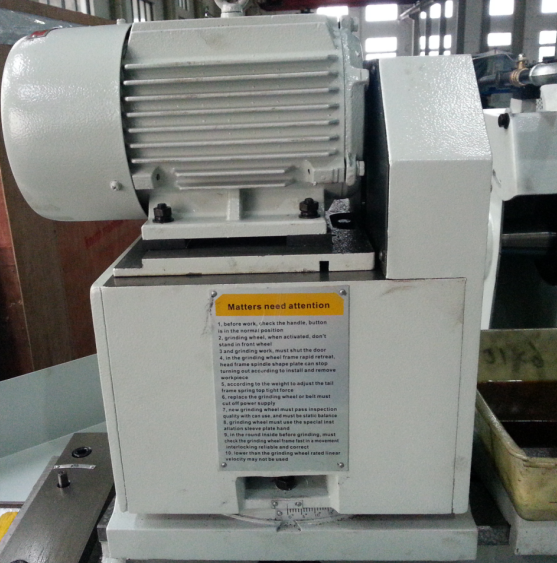

Grinding Wheel Data
- Wheel spindle speed: 665 - 1670 rpm
- Wheelhead rapid travel: 50 - 100 mm
- Available wheel sizes: 400x50x203mm to 750x75x305mm
Service & Logistics
Service Highlights
3 weeks
Typical Lead Time (Weeks)
1 year
Warranty Period
Certifications
CE Certified
