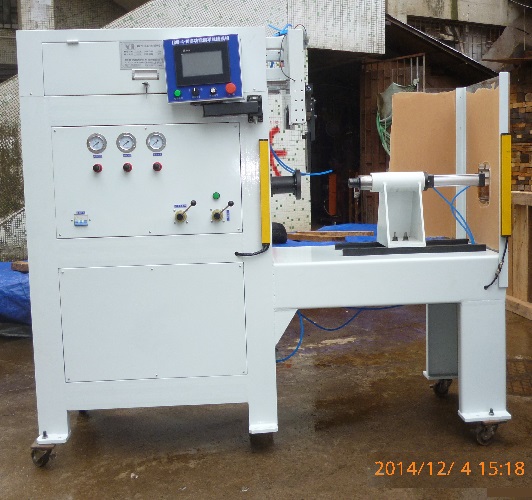

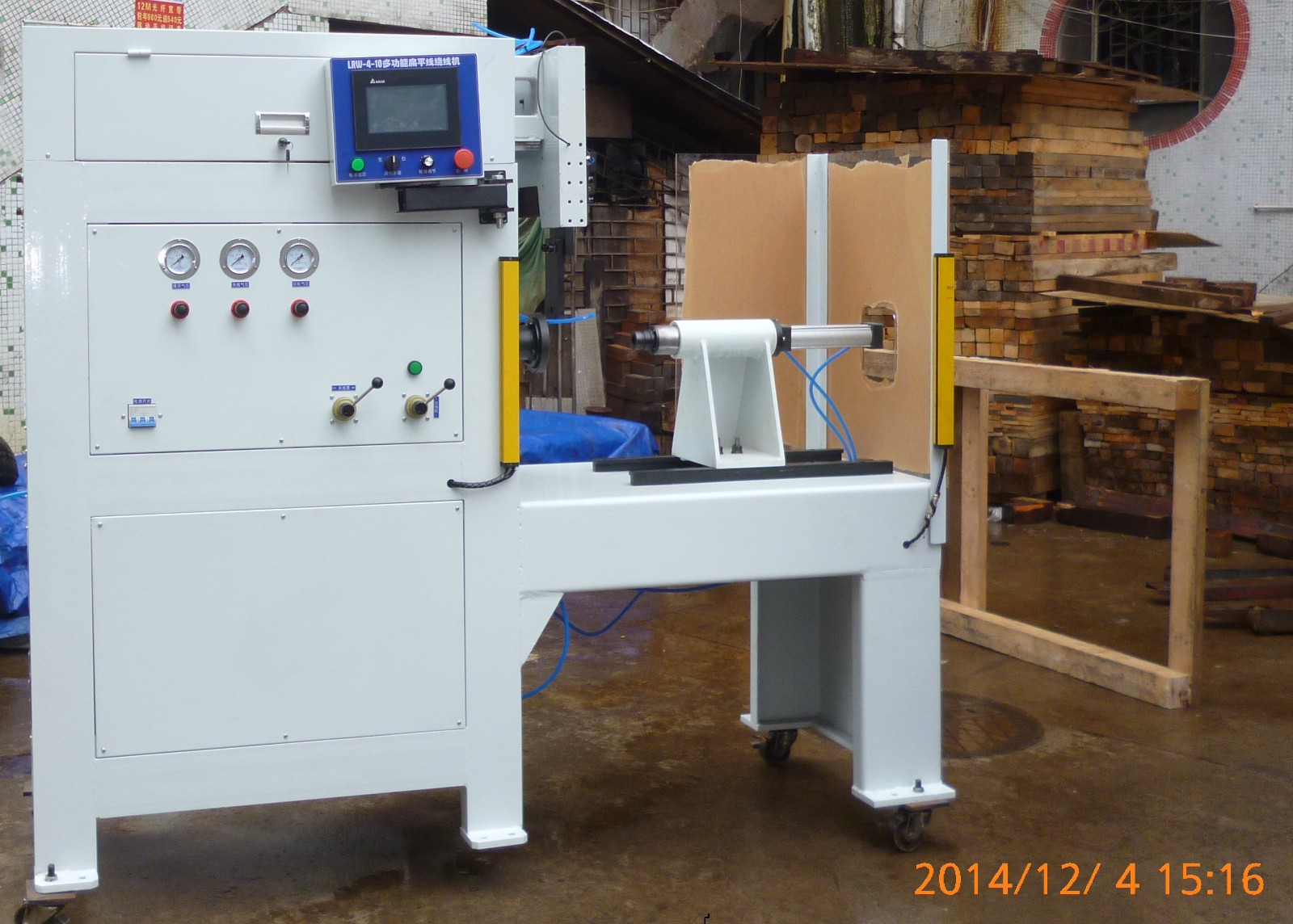

CNC Coil Winding Machine
This CNC winding machine is used for producing inductors, reactors, and transformer coils. It supports various wire types, including copper, aluminum, enameled, and paper-covered wires, with a wire section area of 0.18 to 180mm^2.
Technical Specifications
Overview
High-Precision CNC Winding Solutions
This CNC winding machine is engineered for the production of high-quality inductances, reactors, and transformer coils. It supports a wide range of wire materials including copper and aluminum, with the capability to handle both round and flat wire profiles. Designed for versatility, the system allows for integrated coating of insulating layers such as glue, paper, and ribbons during the winding process.
Technical Capabilities
Wire Section Area
0.18 mm²
Min Wire Area
180 mm²
Max Wire Area
Flat Wire Orientations
- Lying winding
- Erected winding (Vertical)
- Compatible Wire Types
- Bare WireEnameled WirePaper Covered WireSilk Covered WireRound WireFlat Wire
Materials & Insulation
Conductor Materials
CopperAluminum
Integrated Insulation Materials
- Glue coating
- Paper wrapping
- Ribbon wrapping
Applications
- Target Components
- Inductance CoilsReactorsTransformer CoilsElectromagnetic Components
Control System
System Features
- Programmable CNC control
- Precision tension control
- Automated layer winding
- Pitch adjustment
- Pneumatic clamping system
- Safety Equipment
- Safety light curtains for operator protection
