Centrifugal Fan
This centrifugal fan is designed for ventilation and air purification systems. Its optimized impeller ensures efficient airflow and quiet operation.
Technical Specifications
Product Overview

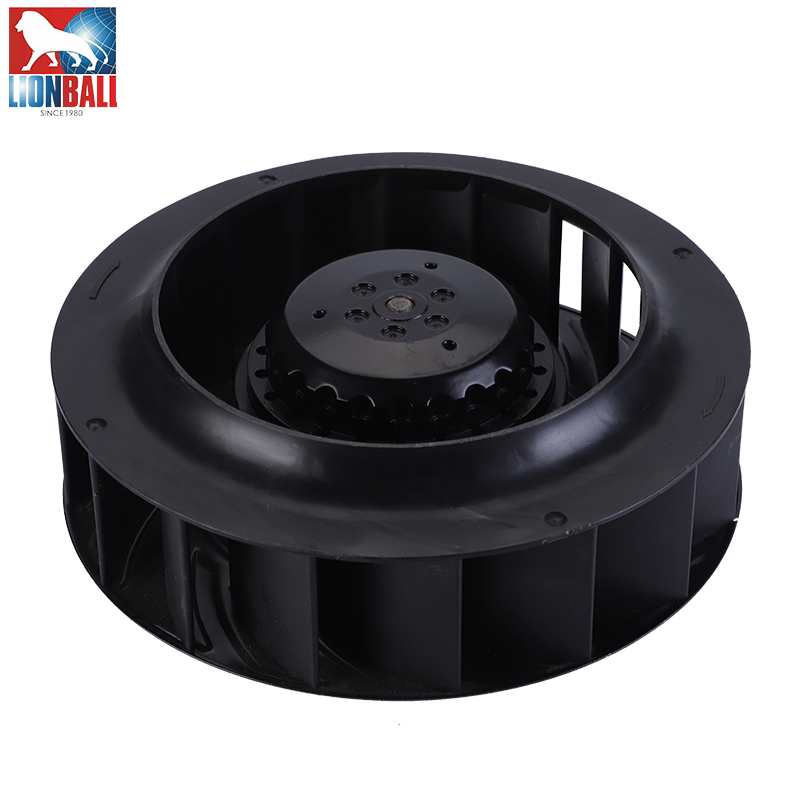

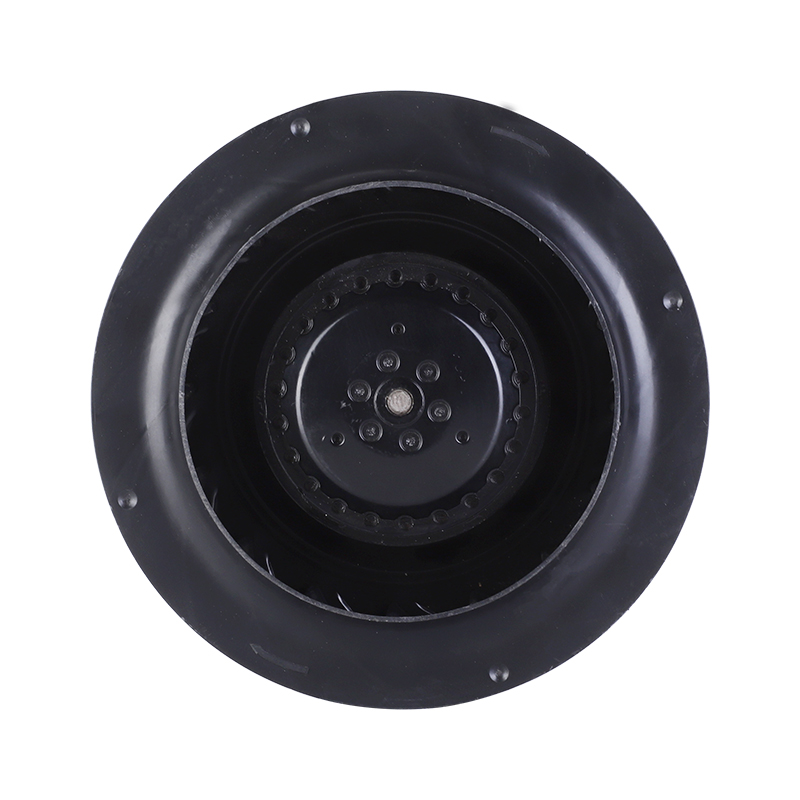

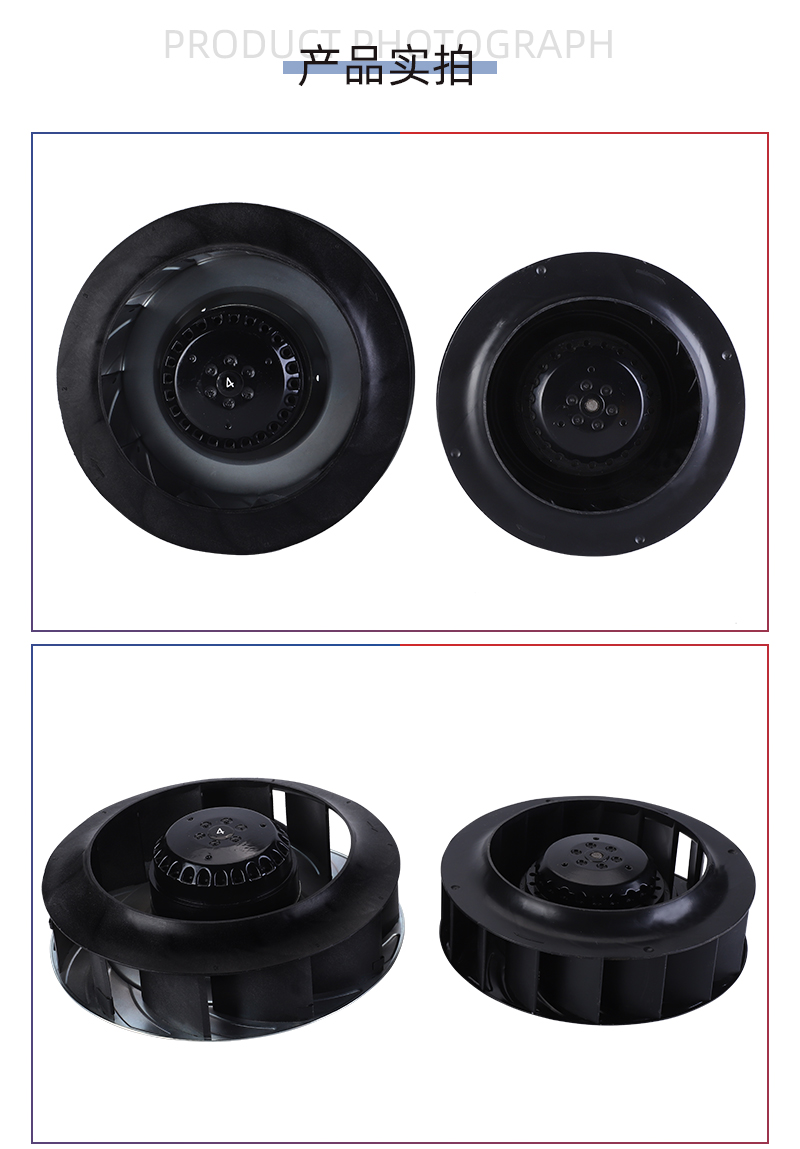

High-Performance Centrifugal Fan
The YWFB133 series is a professional-grade centrifugal fan designed for demanding ventilation and air purification applications. Featuring a compact structure and an aerodynamically optimized impeller, it delivers efficient airflow with minimal noise levels. Its robust construction and fine process control ensure a long service life and reliable operation in various HVAC&R environments.
Key Features
- Compact and space-saving structure
- Professional aerodynamic design
- Fine process control for durability
- Easy installation process
- High efficiency with low noise output
- Long operational service life
Technical Specifications
Performance Ratings (Model YWFB2E133)
270 m³/h
Max Air Flow (50Hz)
320 m³/h
Max Air Flow (60Hz)
2,800 RPM
Rated Speed (50Hz)
55 dB(A)
Noise Level
Electrical Parameters
| Parameter | Value (50Hz / 60Hz) |
|---|---|
| Rated Voltage | 230V |
| Rated Current | 0.22A / 0.25A |
| Input Power | 35W |
| Capacitor | 1.0 µF |
Applications
- Primary Applications
- Air PurificationHVAC SystemsCommercial RefrigerationMedical CentrifugesKitchen VentilationIndustrial AutomationResidential Ventilation
Compliance & Quality
Certifications & Standards
CEULVDERoHSCCCISO 9001ISO 14001
Purchase Information
Ordering Process
- Style selection and project communication
- Design draft submission
- Detail confirmation and quotation
- Form validation and verification
- Payment and proofing
- Bulk production

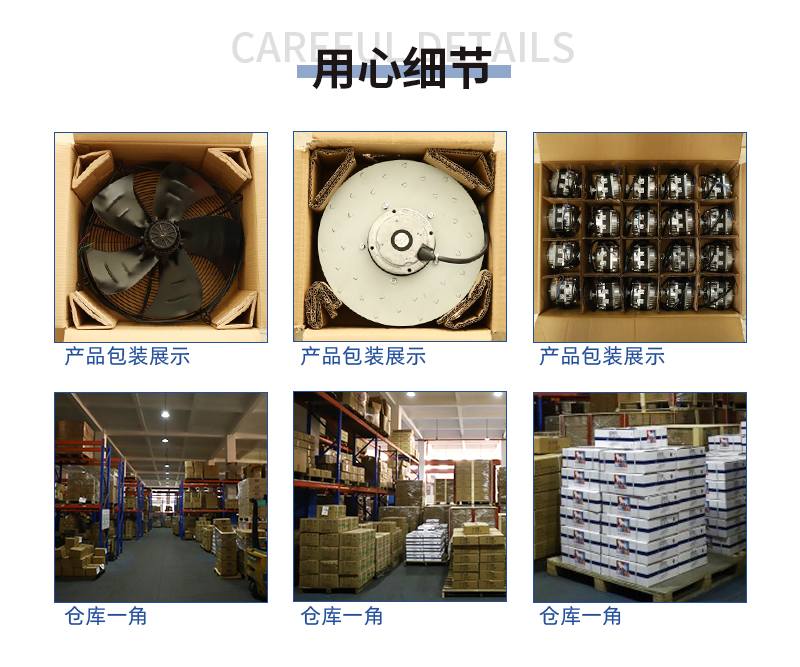

- Quality inspection, packaging, and shipment
