Product Overview

High-Efficiency Centrifugal Compression

This centrifugal air compressor is engineered for continuous operation in demanding industrial environments, making it an ideal choice for air separation plants and large-scale industrial processes. The unit features advanced multi-stage compression and optimized impeller designs to ensure maximum efficiency and precise performance management. Available in both H-type (dual spindle) and DA-type (single axle) configurations, these compressors offer versatile solutions for single-machine setups or integrated plant operations.

Technical Specifications

Available Configurations: H Type (Dual Spindle)DA Type (Single Axle)
Compression Stages: 4 stages

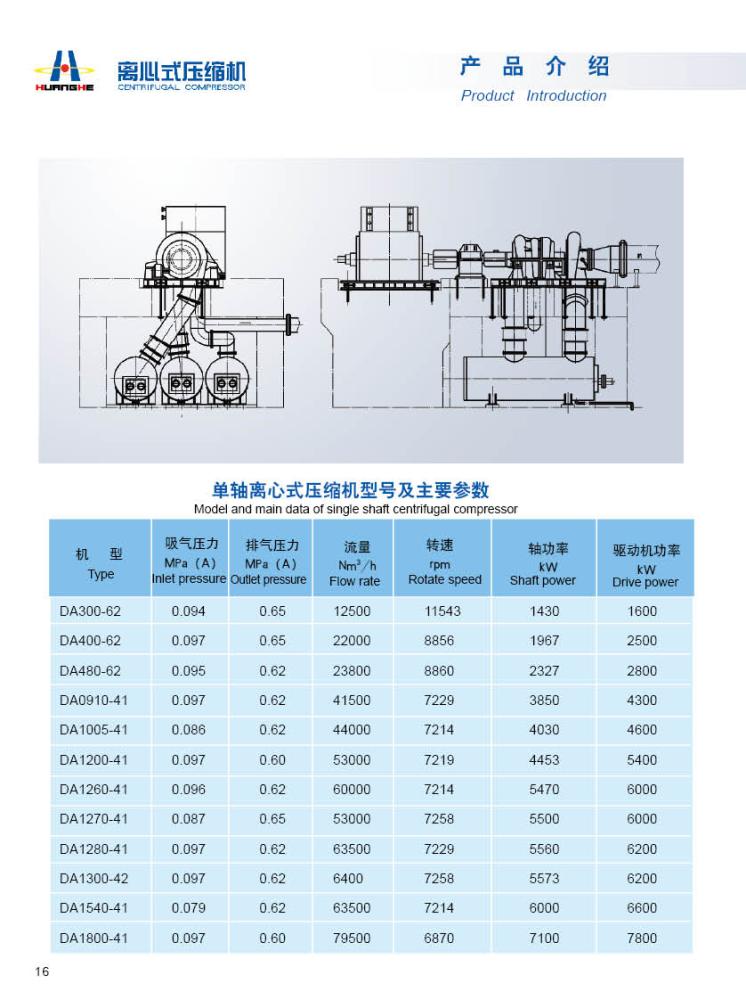

Performance Data - Single Shaft (DA Type)

DA Type Performance Metrics

Model	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Flow Rate (Nm³/h)	Drive Power (kW)
DA300-62	0.094	0.65	12,500	1,600
DA400-62	0.097	0.65	22,000	2,500
DA480-62	0.095	0.62	23,800	2,800
DA0910-41	0.097	0.62	41,500	4,300
DA1005-41	0.086	0.62	44,000	4,600
DA1200-41	0.097	0.6	53,000	5,400
DA1260-41	0.096	0.62	60,000	6,000
DA1270-41	0.087	0.65	53,000	6,000
DA1280-41	0.097	0.62	63,500	6,200
DA1300-42	0.097	0.62	6,400	6,200
DA1540-41	0.079	0.62	63,500	6,600
DA1800-41	0.097	0.6	79,500	7,800

Performance Data - Double Shaft (H Type)

H Type Performance Metrics

Model	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Flow Rate (Nm³/h)	Drive Power (kW)
H510-6.2/0.98	0.098	0.62	23,500	2,500
H590-6.7/0.85	0.085	0.67	23,500	2,800
H690-6.5/0.96	0.096	0.65	32,000	3,200
H700-6.0/0.96	0.096	0.6	32,500	3,200
H700-6.2/0.98	0.098	0.62	32,500	3,200
H750-6.0/0.98	0.098	0.6	34,000	3,400
H750-6.2/0.92	0.092	0.62	32,500	3,400
H830-6.4/0.90	0.09	0.64	34,000	3,900
H830-6.2/0.79	0.079	0.62	32,500	3,700
H890-6.4/0.90	0.09	0.64	39,500	4,100
H748-6.5/0.084	0.084	0.65	32,500	3,400
H840-6.1/0.82	0.082	0.61	35,000	3,700
