Technical Specifications
Overview

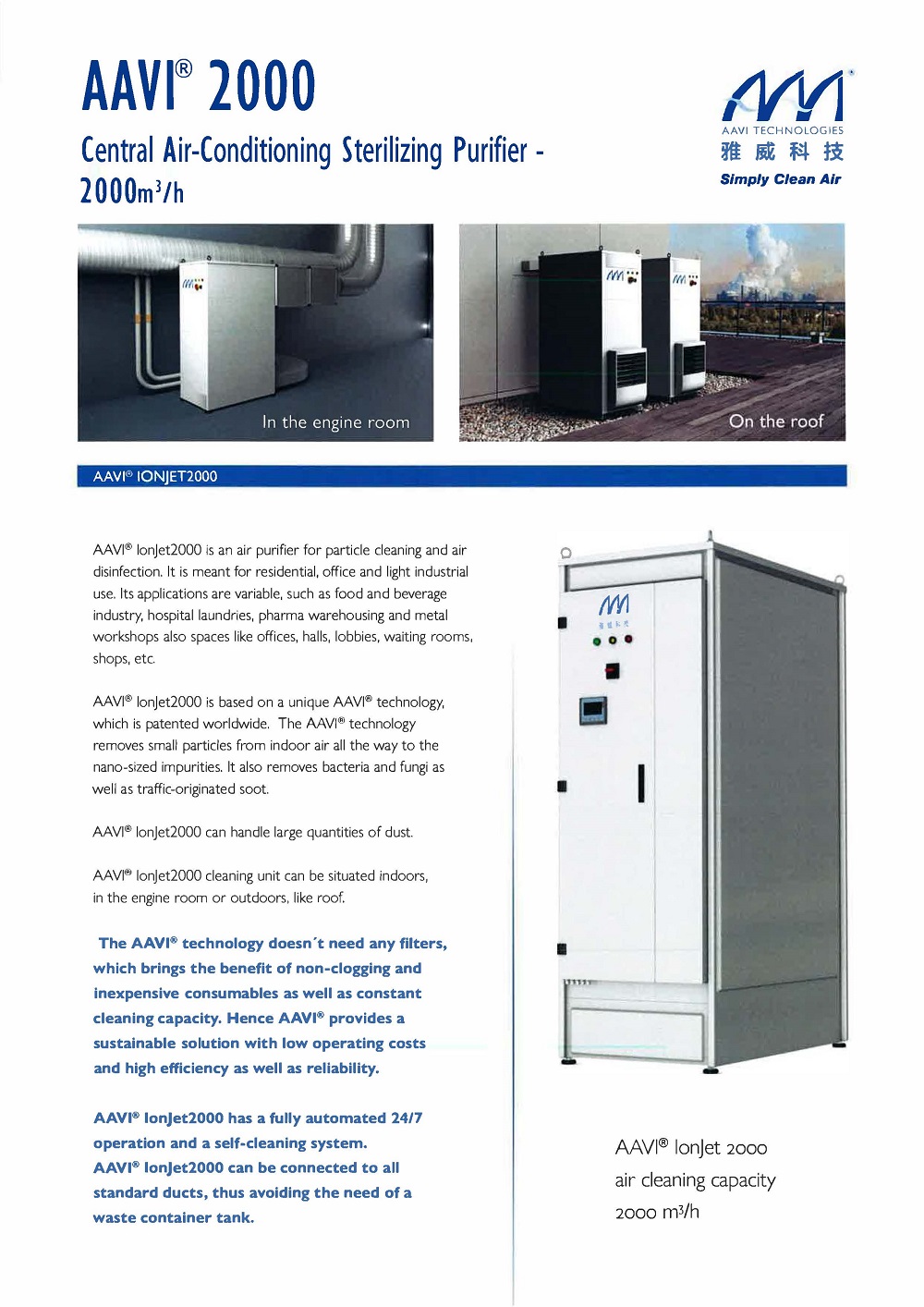

Advanced Central Air Sterilization

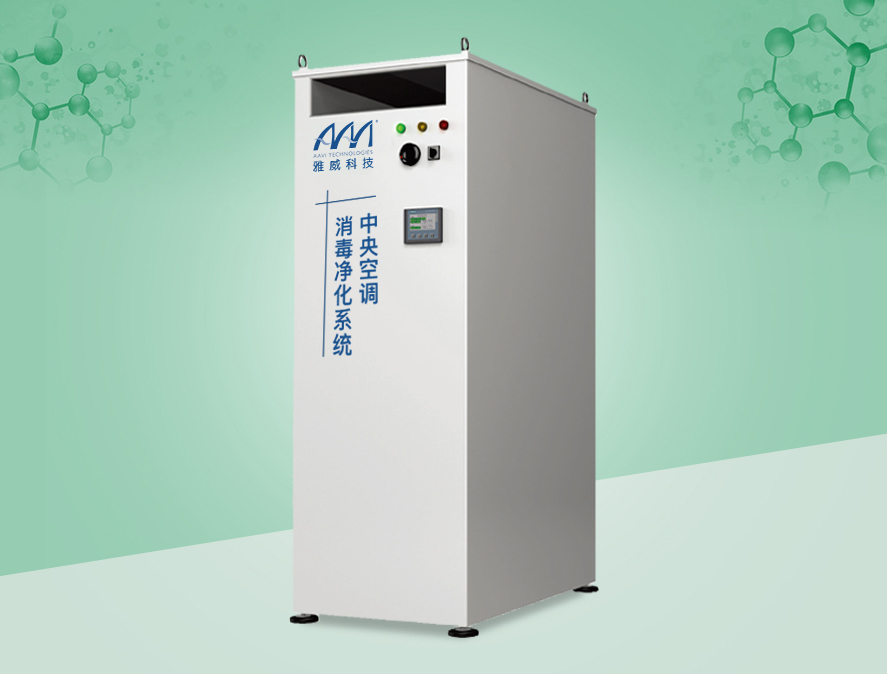

This high-capacity air purification system is designed for integration with central air conditioning to provide medical-grade sterilization across spaces up to 800㎡. Utilizing patented IonJet technology, it effectively eliminates particles as small as 0.001um, including bacteria and viruses, with a sterilization rate of 99.99%. Engineered for long-term reliability, the unit features a 20-year auto self-cleaning system and filter-free operation to ensure low maintenance costs and consistent performance.
Performance Metrics
Performance Highlights
2,000 m³/h
Air Flow Capacity
99.99 %
Sterilization Rate
0.001 um
Min Particle Size
Technical Specifications
- Purification Technology
- IonJet Ionization & Water Mist Purification
- Cleaning Efficiency
- > 99% for particles ≥ 0.0025μm
- Recommended Cleaning Area
- 400-800 m²
- Max Noise Level
- 50 dB(A)
- Pressure Drop
- 113 Pa (250 Pa with ACF)
Electrical & Physical
- Power Consumption
- Max 0.6 kW (1 kW in cold climates below +5°C)
- Operating Voltage
- 380-400 V, 50 Hz, 3-level AC
- Dimensions (W x D x H)
- 1314 x 794 x 2378 mm
- Unit Weight
- 300 kg
- Operating Temperature
- -15°C to +45°C

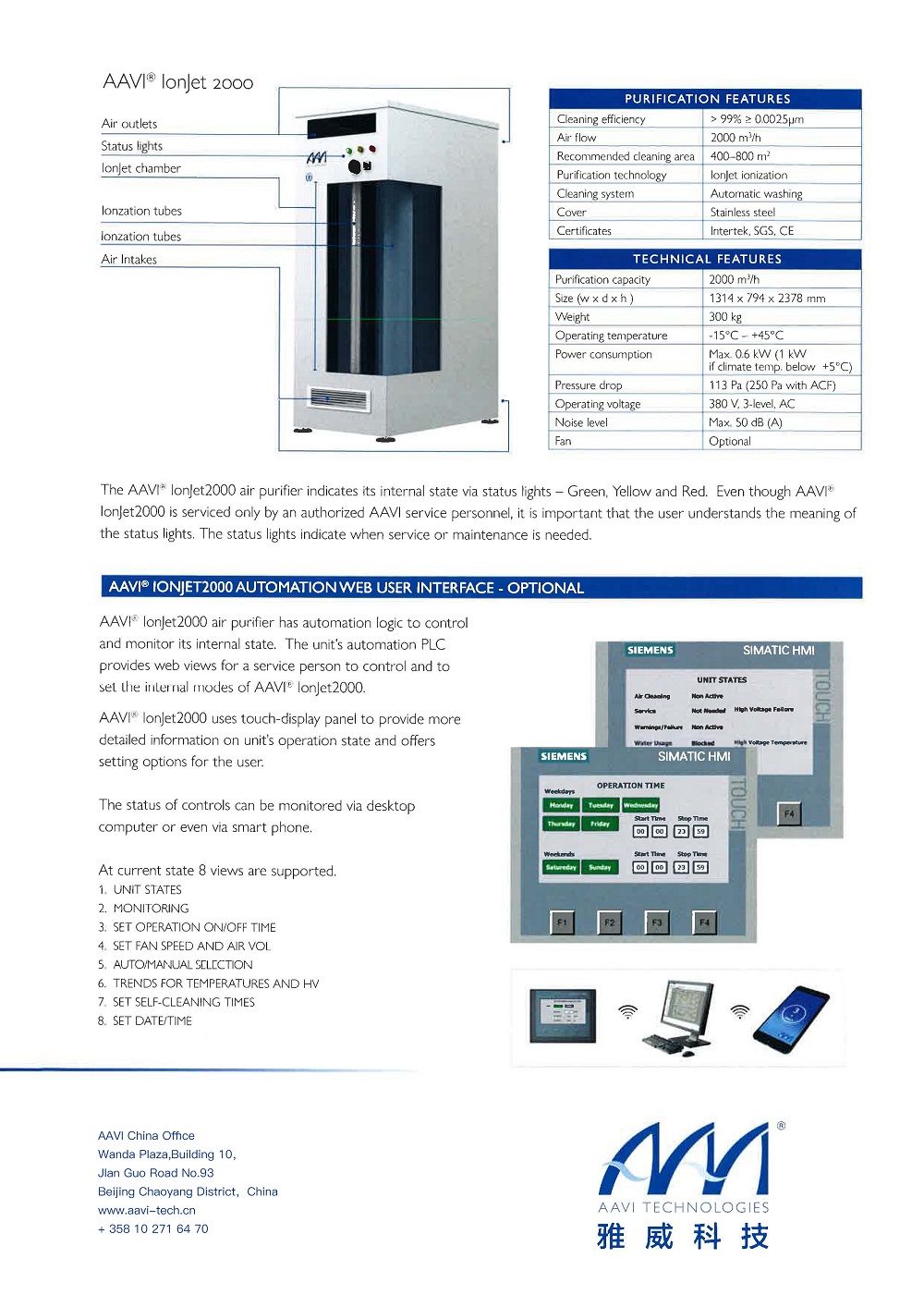

Control & Automation
Control System
- Siemens PLC Automation
- Touch-display panel
- Web-based remote monitoring
- Smartphone/Desktop status tracking
- 8-view system state monitoring
- Programmable self-cleaning times
Compliance & Construction
Maintenance Features
Filter-FreeNon-CloggingAuto Self-Cleaning24/7 Operation
- Housing Material
- Stainless Steel

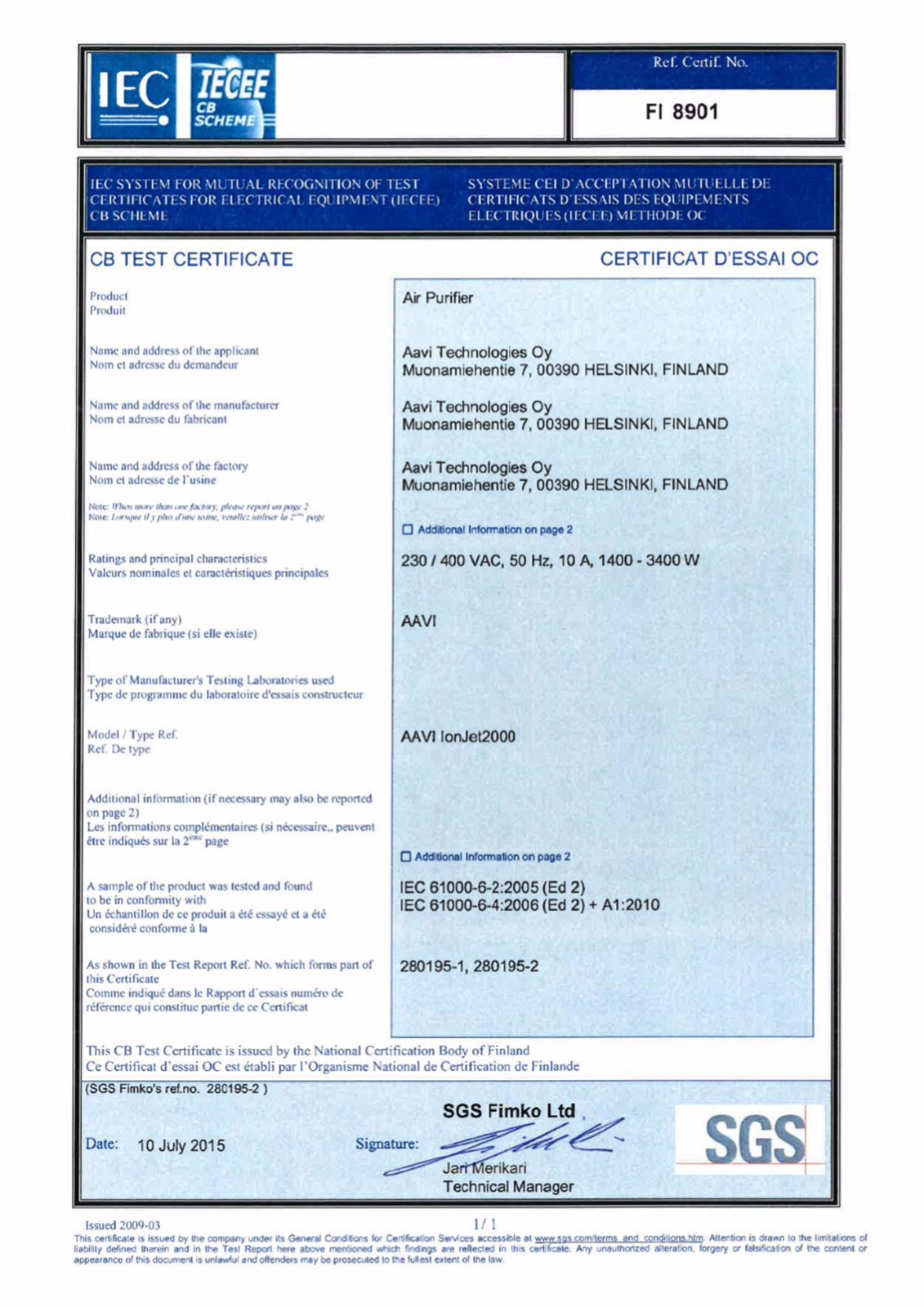

- Certifications
- CECB SchemeIEC 61000-6-1IEC 61000-6-2IEC 61000-6-3IEC 61000-6-4SGSIntertek
