Transformers

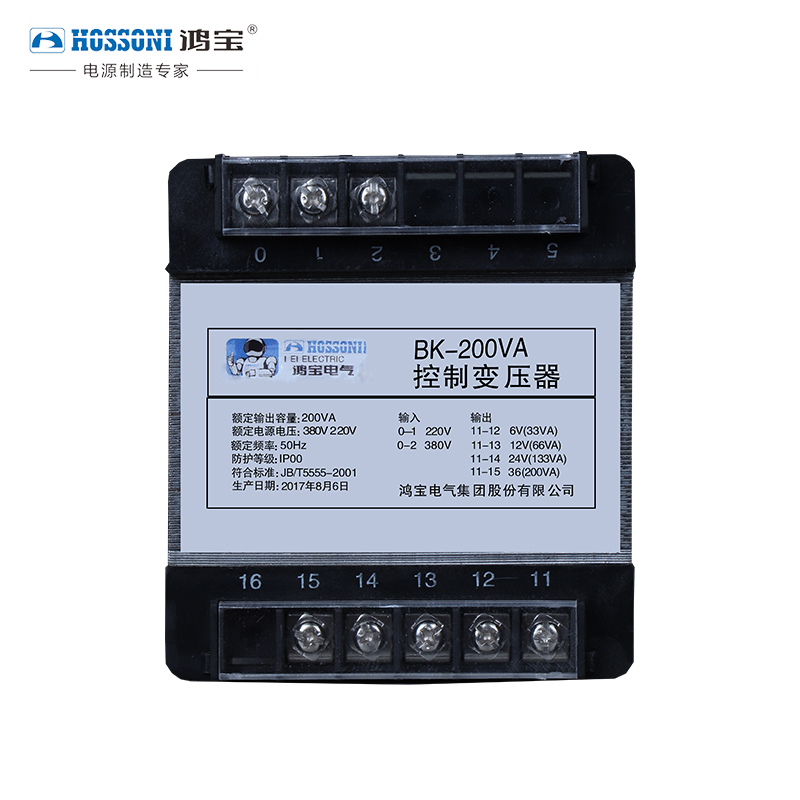

Industrial control transformers are the backbone of electrical panels and automation systems, providing safe, isolated voltage to critical components. Sourcing these units in volume means navigating volatile commodity markets while ensuring absolute reliability. A compromised core or undersized winding does not just reduce efficiency; it risks thermal overload, premature degradation, and total system failure in the field.

Critical Specifications for Bulk Procurement

When negotiating with manufacturers, vague specifications invite cost-cutting. You must define every parameter to ensure the transformer performs reliably under continuous industrial loads.

• Capacity (VA/kVA): Specify the continuous power rating and the inrush capability. Control circuits often experience high momentary currents from contactors and solenoids.

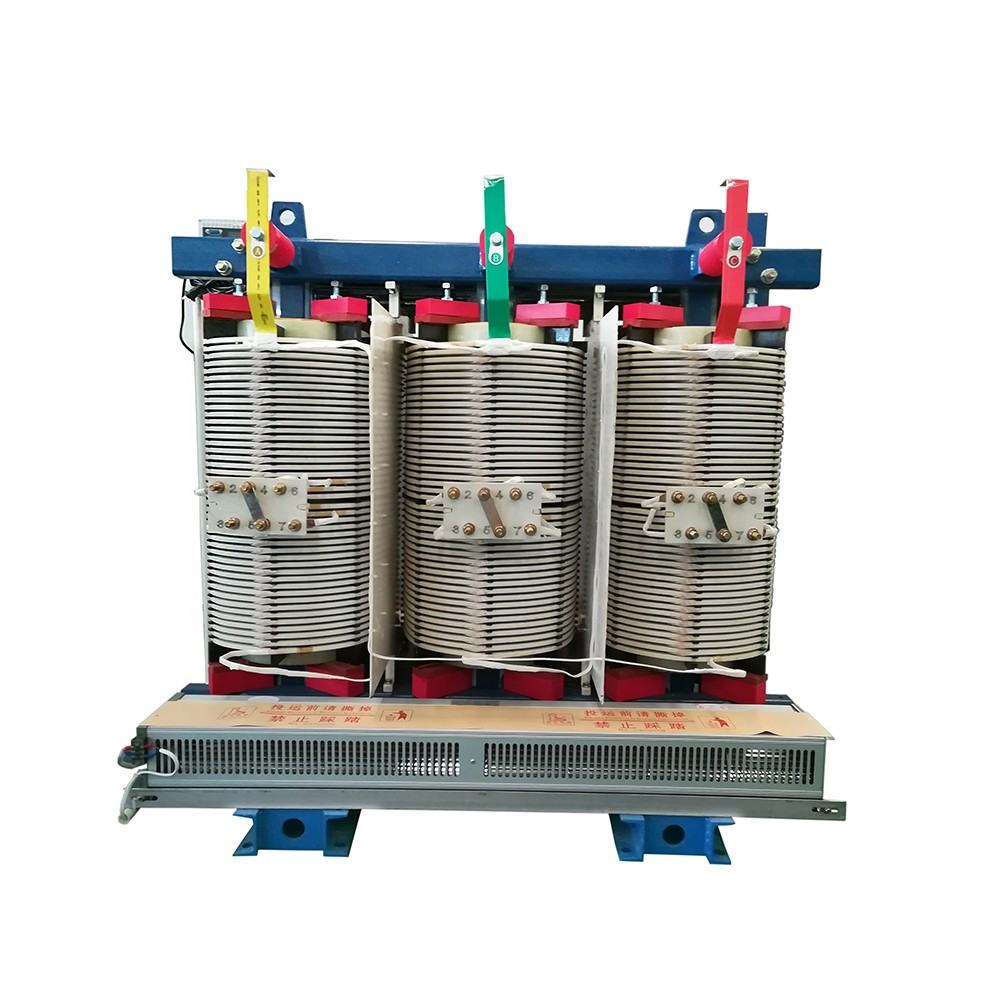

• Insulation Class: Standard industrial applications typically require Class F (155°C) or Class H (180°C) insulation. Ensure the factory specifies the maximum temperature rise allowed above ambient.
• Core Material: High-grade, grain-oriented silicon steel minimizes hysteresis and eddy current losses. Inferior steel results in higher operating temperatures and wasted energy.

Manufacturing and Quality Control

The durability of a dry-type control transformer is largely determined on the factory floor during the winding and insulation phases. Sourcing reliable units requires rigorous quality control and inspection before shipment.

The VPI Process

Vacuum Pressure Impregnation (VPI) is non-negotiable for industrial transformers. The process removes air and moisture from the windings under vacuum, then forces polyester or epoxy resin deep into the coils under pressure. This eliminates microscopic voids that cause corona discharge and mechanical vibration (humming).

If you are developing custom configurations for specific machinery, utilizing structured OEM/ODM services ensures your proprietary winding ratios and enclosure designs are accurately translated into mass production.

Sourcing Realities: Pricing, MOQs, and Lead Times

Transformer pricing is heavily dictated by the London Metal Exchange (LME) prices for copper and global steel indexes. Quotes are typically only valid for 7 to 14 days.

Because transformers are heavy, logistics costs form a significant percentage of the landed price. Maximize container utilization and ensure packaging is rated for heavy-density freight to prevent core shifting during transit. Furthermore, ensure the factory holds the necessary UL, CE, or CSA certifications for your target market, or factor in the cost of independent compliance and testing before importing.

Buyer FAQ

Securing a reliable supply of industrial transformers requires more than just comparing unit prices; it demands strict material verification and rigorous factory-level testing. By locking down your technical specifications and enforcing pre-shipment inspections, you can protect your equipment and your reputation from the hidden costs of subpar manufacturing.
