Thimbles
Source high-quality wire rope thimbles directly from vetted manufacturers and wholesale suppliers in Asia. Built for rigging equipment distributors, marine hardware wholesalers, and industrial importers buying in bulk, our network delivers reliable standard and heavy-duty thimbles engineered for secure load protection and strict dimensional tolerances.

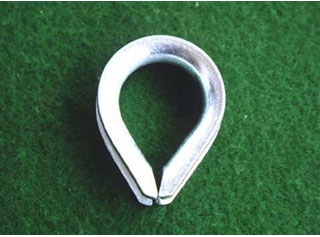

Sourcing wire rope thimbles at scale requires strict adherence to dimensional tolerances, material grades, and surface finish standards. Whether you are importing hardware for marine rigging, architectural tensioning, or general lifting applications, a thimble's core job is protecting the wire rope eye from friction, deformation, and crushing. Sourcing failures here—such as inadequate zinc coating, sharp stamping burrs, or brittle metal—compromise the entire wire rope assembly.
Engineering Specifications and Standards
When communicating with manufacturers, vague requests for "wire rope thimbles" will result in mismatched quotes. Factories categorize production lines by regional standards and duty ratings. You must specify the standard, the rope diameter fit, and the manufacturing method.
| Specification | Light Duty (Commercial) | Heavy Duty (Industrial) |
|---|---|---|

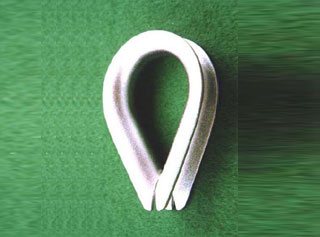

| Typical Standards | DIN 6899A, DIN 6899B | US Fed Spec FF-T-276b Type III, BS 464 |
| Manufacturing Method | Cold stamped sheet steel | Hot forged or heavy cast |
| Material Profile | Thinner gauge, shallow groove | Thick gussets, deep rope groove |
| Primary Applications | Fencing, static tie-downs, light guy wires | Overhead lifting, towing, heavy marine |
For stainless steel variants, specify the exact grade (e.g., AISI 304 or 316) rather than just "stainless," as the price and corrosion resistance vary significantly.
Manufacturing Processes and Quality Control
The manufacturing method dictates both the unit cost and the structural integrity of the thimble. Stamped thimbles are punched and formed from sheet coil, making them highly economical for high-volume commercial applications. Heavy-duty thimbles are often drop-forged or cast to achieve the necessary thickness at the crown and gussets to resist crushing under high loads.
Need to verify a factory's forging capabilities or material testing protocols? We help buyers source from certified hardware manufacturers.
Talk to our teamCritical Defect Areas to Monitor
Quality control on the factory floor should focus heavily on the finishing stages. Small finishing defects can cause catastrophic failure in the field by damaging the very wire rope the thimble is designed to protect. Implementing rigorous Quality Control & Inspection before shipment is essential.
Pre-Shipment Inspection Focus Areas
- Burr Removal: Ensure all stamped edges inside the groove are fully deburred to prevent rope abrasion.
- Galvanization Thickness: Test hot-dip galvanized (HDG) coatings to ensure zinc thickness meets the required standard (typically over 40 microns for marine use).
- Groove Width Tolerance: Verify the inner groove width precisely matches the intended wire rope diameter to prevent pinching or slipping.
- Symmetry and Alignment: Check that the two ends of the thimble meet symmetrically without overlapping or twisting.
Surface Finish: HDG vs. Electro-Galvanized
Buyers often face a choice between Hot-Dip Galvanized (HDG) and Electro-Galvanized (EG) finishes. EG provides a bright, shiny finish that looks appealing but offers minimal corrosion resistance (often under 10 microns of zinc). HDG yields a dull, rougher finish but provides robust, long-term rust prevention suitable for outdoor and marine environments. Always specify HDG for structural or outdoor rigging hardware.
Pricing, MOQs, and Lead Times
Hardware manufacturing is heavily volume-dependent, with pricing driven primarily by global steel costs, zinc prices, and the specific manufacturing method.
When planning your procurement, factor in the time required for independent material verification. If you are developing custom rigging hardware or proprietary sizes, tooling costs for new stamping dies or forging molds are generally inexpensive (often under $1,000), but sample approval will add 15 to 20 days to your initial timeline. Managing these timelines across multiple hardware suppliers requires tight Supply Chain Management to prevent stockouts.
Consolidating hardware shipments from multiple Asian factories? Let us streamline your supply chain and handle the quality control.
Get a free consultationFrequently Asked Questions
Securing a reliable supply of wire rope thimbles means looking past the lowest unit price and verifying the factory's material controls, tooling maintenance, and finishing standards. Conducting proper Factory Audits ensures you partner with manufacturers capable of delivering consistent, safe hardware order after order.
