What is the difference between Imax and In?

In (Nominal Discharge Current) is the peak current the SPD can withstand 15 times without degrading. Imax (Maximum Discharge Current) is the absolute maximum current the SPD can handle exactly once before it is destroyed. Buyers should size and specify SPDs based on In, not just the headline Imax figure.

Can we customize the modular cartridges for our brand?

Yes. Most manufacturers offer custom pad printing or laser engraving on modular cartridges for OEM clients. However, changing the physical shape or pin layout of the cartridge requires new tooling, which increases lead times and upfront costs.

How do we ensure the thermal disconnect works properly?

The thermal disconnect relies on precise low-temperature solder and a mechanical spring. Verifying this requires destructive testing of samples. Pre-shipment quality control inspections should include spot-checking these connections and reviewing the factory's batch test data.

Surge Protection Devices

Source commercial and industrial Surge Protection Devices (SPDs) directly from vetted manufacturers and wholesale suppliers. Designed for importers, electrical distributors, and brands seeking reliable OEM/ODM production, our network delivers certified surge protectors for demanding low-voltage applications.

Get a free consultation

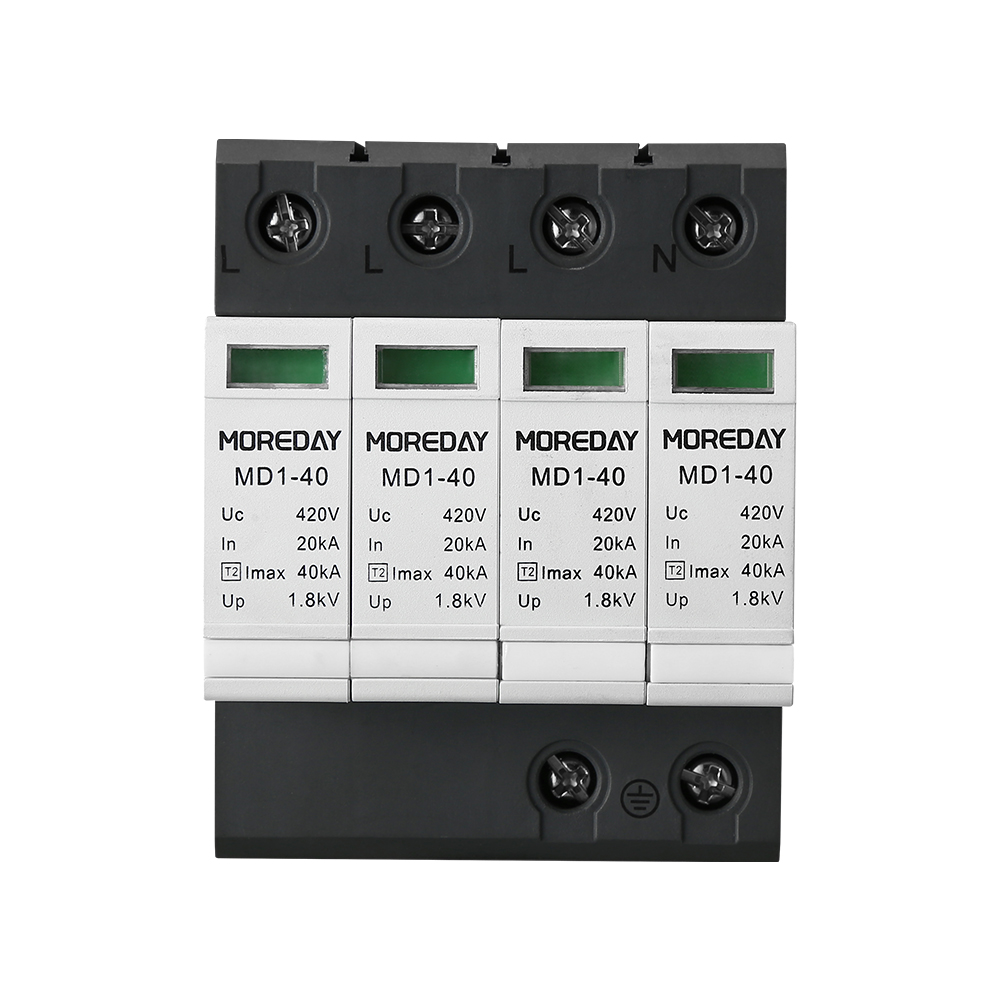

AC Power Surge Protection Device 40kA

Surge protection devices are installed in electrical switchboards to protect against transient surge conditions. These devices prevent the spread of overvoltages in electrical installations, protecting loads from damage.

View Details →

Automatic Over and Under Voltage Protection Device

This device automatically cuts off the load when mains supply voltage exceeds or falls below the rated voltage, protecting electrical equipment. When the voltage returns to normal, it automatically reconnects the power supply.

View Details →

Surge Protection Device

This surge protection device protects electrical systems from transient overvoltages. It features a modular design for easy installation and ensures the safety of sensitive electronic equipment.

View Details →

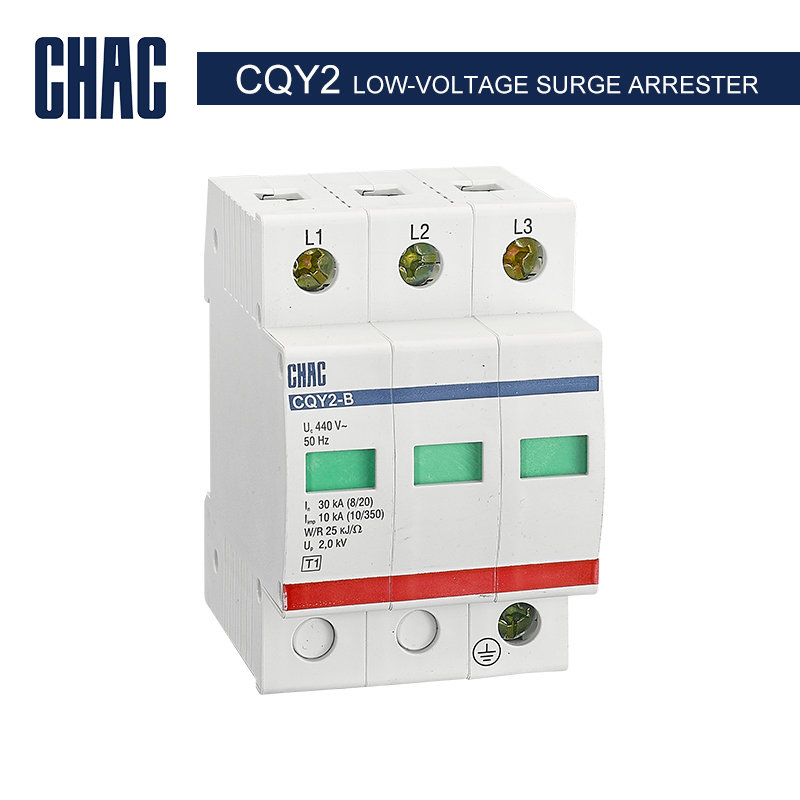

Low-Voltage Surge Arrester

This surge arrester is designed for power supply systems using AC 50Hz and a rated voltage below 400V. It provides protection against lightning strikes or surge overvoltage, meeting the protection requirements of power equipment.

View Details →

Sourcing surge protection devices (SPDs) at volume requires navigating a complex supply chain where external housing often masks the true quality of internal components. For bulk buyers and private-label brands, the primary challenge is verifying that critical elements like metal oxide varistors (MOVs) and thermal disconnect mechanisms will perform reliably under extreme transient overvoltages without catastrophic failure.

Specifying SPDs for Manufacturing

Defining exact technical parameters is critical before approaching any factory. Minor misalignments in voltage ratings or discharge capacities can render a production batch unusable for your target market or application.

Parameter	Type 1 (Main Board)	Type 2 (Distribution Board)	Type 3 (Terminal)
Application	Direct lightning strike protection	Indirect lightning & switching surges	Local protection for sensitive electronics
Test Waveform	10/350 microsecond	8/20 microsecond	Combination wave (1.2/50, 8/20)
Typical Imax	50kA to 100kA+	20kA to 40kA	Up to 10kA

Ensure your RFQ explicitly details the Maximum Continuous Operating Voltage (Uc) and the Voltage Protection Level (Up). A lower Up value provides better protection for downstream equipment but often requires higher-grade, more expensive internal components to achieve without sacrificing the lifespan of the device.

Component Quality and Factory Floor Realities

The performance of an SPD is almost entirely dictated by its MOVs, gas discharge tubes (GDTs), and the integrity of the thermal disconnect mechanism. Low-tier manufacturers frequently cut costs by sourcing generic MOVs that degrade rapidly or lack the thermal capacity to handle repeated surges safely.

Critical QC Checkpoints for SPD Production

MOV Sourcing: Verify the origin of the MOVs (e.g., reputable Tier-1 brands vs. unverified local suppliers).
Thermal Disconnect: Ensure the internal solder joints are calibrated to melt and safely disconnect the circuit at the exact failure temperature.
Housing Material: Confirm the use of UL94 V-0 rated flame-retardant plastics to prevent fires during catastrophic MOV failure.
Cartridge Tolerances: For modular SPDs, check the insertion and extraction force of the plug-in cartridges to ensure secure contact.

Before committing to a large order, conducting comprehensive Factory Audits is essential. You must verify the supplier's incoming material inspection processes and their in-house surge testing capabilities, such as their impulse current generators.

Need help verifying SPD manufacturers? We audit factories and validate their component supply chains before you place an order.

Talk to our team

Navigating Global Standards and Compliance

SPDs are strictly regulated life-safety devices. Importing non-compliant units carries severe liability and risks customs seizure. Your manufacturer must be able to provide valid, verifiable test reports for the specific market you are targeting.

Certification Verification

Do not accept generic CE or UL marks at face value. Always verify the actual test reports against IEC 61643-11 (for Europe and International markets) or UL 1449 4th Edition (for North America). If you are unsure of a factory's claims, rigorous Compliance & Testing services can validate the product at an independent, accredited laboratory.

Wholesale Pricing, MOQs, and Lead Times

Factory pricing for SPDs scales directly with the discharge capacity (kA rating), the quality of the internal components, and the level of customization required.

500 - 2,000

Typical MOQ (Units)

Standard range for custom branding or specific configurations.

30 - 45

Lead Time (Days)

Average production time after sample approval and deposit.

15% - 30%

Cost Variance

Typical price difference when specifying premium MOVs versus standard generics.

When utilizing OEM/ODM Services to launch a private-label line, expect higher initial MOQs to cover the cost of custom injection molds for the housing or custom-printed modular cartridges. Standard white-label products utilizing existing factory molds can often be negotiated down to 500 units per SKU, making it easier to test new markets.

Looking to source reliable, certified SPDs at scale? Let us handle the price negotiation, factory vetting, and quality control on your behalf.

Get a free consultation

Frequently Asked Questions

Successfully sourcing surge protection devices requires a rigorous approach to component validation and factory vetting. A single misstep in MOV quality or thermal protection design can lead to catastrophic product failure in the field. By partnering with experienced sourcing professionals, you ensure your supply chain delivers safe, highly reliable, and cost-effective electrical protection.
