What is the difference between a TIR lens and a standard reflector?

A standard reflector only controls the light that hits its sides, allowing spill light to escape directly from the center. A TIR (Total Internal Reflection) lens captures nearly all the light emitted by the LED using a refractive center and reflective outer walls, resulting in a much more controlled, focused beam with higher optical efficiency.

How do I ensure a lens matches my LED chip?

Lenses must be matched to the Light Emitting Surface (LES) of the specific LED package (e.g., 3030 SMD, 5050 SMD, or a specific COB diameter). A mismatch will result in optical artifacts, glare, or a distorted beam pattern. Always specify the exact LED chip model when requesting lens samples.

Why do some plastic lenses turn yellow over time?

Yellowing is typically caused by UV degradation or thermal stress. This occurs when manufacturers use non-UV-stabilized resins, incorporate recycled regrind plastic into the mix, or expose standard PMMA to operating temperatures exceeding its thermal limits.

LED Lenses & Reflectors

Source bulk LED Lenses & Reflectors from vetted suppliers and manufacturers across China and Asia. Designed for lighting brands, commercial distributors, and importers requiring precision optics, custom beam angles, and OEM production capabilities to meet strict architectural and industrial lighting standards.

Get a free consultation

Linear Fresnel Lens for Light Focusing

This linear Fresnel lens focuses light into a narrow strip. Its smooth surface and concentric grooves efficiently refract light to a common focal point.

View Details →

Plano Concave Optical Lens

This plano concave lens is designed for optical applications requiring beam divergence. The lens is manufactured from high-quality optical materials and finished with precision for minimal distortion.

View Details →

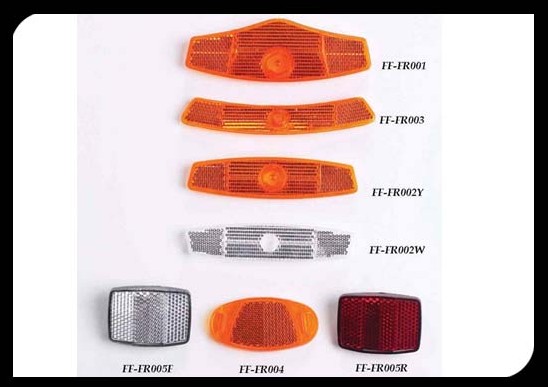

Lighting Reflector

Lighting reflectors are used in illumination systems to direct and focus light. They come in assorted shapes, sizes, and colors, including amber, white, and red.

View Details →

Reflector Flood Light Bulb

This reflector flood light bulb has a standard screw base. The bulb is designed to direct light in a focused beam and is suitable for accent lighting, task lighting, and general illumination.

View Details →

Energy-Saving Lamp Tube Reflector

This energy-saving lamp tube reflector features single-chip microcomputer automatic control and automatic thermal insulation. The pipe's reflective properties improve illumination, offering an energy-saving rate of up to 70%.

View Details →

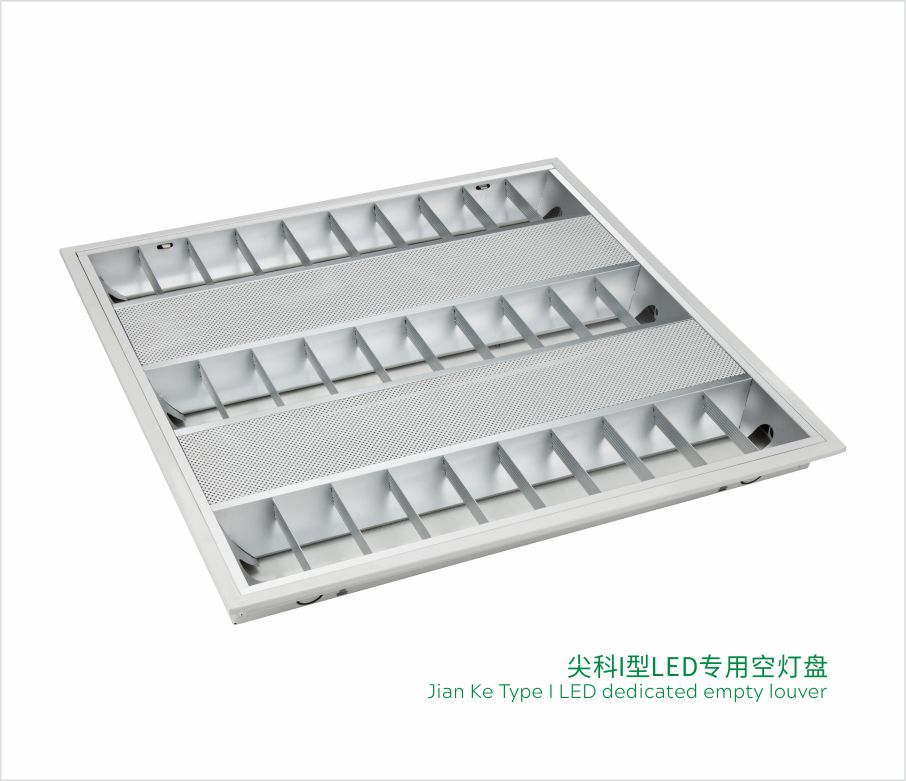

I-Type LED Empty Louver

This I-Type LED empty louver is designed for lighting equipment, specifically within the LED lighting category. It provides efficient light diffusion and glare reduction when integrated into lighting fixtures.

View Details →

Sourcing secondary optics for LED fixtures requires a strict balance of light transmittance, thermal stability, and precise beam control. Whether you are assembling architectural downlights, outdoor street luminaires, or industrial high bays, the lens or reflector dictates the final photometric performance. Securing reliable bulk supply means navigating material specifications, tooling precision, and rigorous quality control.

Material Selection for LED Optics

The choice of material fundamentally impacts the efficiency, durability, and application suitability of the optic. Manufacturers primarily utilize three materials, each with distinct thermal and optical properties.

Material	Transmittance	Thermal Limit	Primary Application
Optical PMMA (Acrylic)	Up to 93%	Approx. 90°C	Indoor architectural, high optical efficiency
Polycarbonate (PC)	Up to 89%	Approx. 120°C	Outdoor, street lights, impact resistance
Borosilicate Glass	Up to 95%	Over 400°C	Industrial, extreme heat, high-power COB arrays

When specifying materials, ensure the factory uses raw optical-grade resins (such as specific grades from Bayer or Teijin for PC, or Mitsubishi for PMMA) rather than regrind materials, which severely degrade light output and cause premature yellowing.

Need help finding a manufacturer with verified access to premium optical-grade raw materials?

Talk to our team

Manufacturing Precision and Tooling

For custom beam angles or unique fixture designs, you will likely engage in product development to create proprietary molds. The performance of a Total Internal Reflection (TIR) lens relies entirely on the micro-structures of the mold.

High-quality optical injection molding requires specialized equipment. Standard injection machines often fail to maintain the consistent holding pressure required to prevent sink marks or flow lines in thick lenses. Tooling for optics also demands ultra-precision CNC machining and diamond polishing to achieve the necessary surface finish. When evaluating a factory's capability for OEM/ODM services, their tooling workshop and molding environment (ideally dust-free) are critical indicators of final product quality.

Critical Quality Control Checkpoints

Optical defects are often invisible to the naked eye but ruin the photometric distribution. A robust quality control protocol must include:

Dimensional accuracy (crucial for IP-rated fixture sealing and PCB alignment)
Surface inspection for flash, sink marks, black spots, or flow lines
Transmittance and beam angle verification using a goniophotometer
Thermal cycling and UV aging tests to ensure long-term stability

Typical MOQs, Pricing, and Lead Times

Optical components are high-volume, low-unit-cost items. Pricing is driven by material weight, resin grade, and mold complexity.

3,000 - 5,000

Standard MOQ (Pieces)

For existing off-the-shelf molds.

10,000+

Custom OEM MOQ

Often required to offset setup costs.

25 - 40 Days

Tooling Lead Time

For new custom mold development.

Factories will often amortize tooling costs over large production runs or rebate the mold fee once a specific order volume is reached. Negotiating mold ownership upfront is essential if you are investing in custom optical designs.

Optimize your optical component supply chain and streamline your custom tooling process.

Get a free consultation

Frequently Asked Questions

When sourcing LED optics, the upfront investment in precise tooling and premium resins pays off in the photometric compliance and longevity of your fixtures. Having a partner on the ground to audit injection molding facilities and verify optical performance before shipment ensures your lighting products perform exactly as engineered.
