Crystals

Quartz crystals serve as the critical timing heartbeat for nearly all modern electronic devices. When sourcing these passive components in high volumes, procurement goes far beyond matching a nominal frequency. Reliability in the field depends heavily on the manufacturer's cleanroom standards, precision in the lapping process, and the integrity of the final hermetic seal.

Securing a stable supply chain for frequency control components requires vetting factories for their testing infrastructure and raw material consistency, ensuring your production lines never stall due to out-of-spec components.

Critical Specifications for Bulk Sourcing

Procurement managers must align with engineering teams to specify exact parameters before approaching manufacturers. A minor oversight in load capacitance or drive level can lead to oscillator startup failures or accelerated aging in the end product.

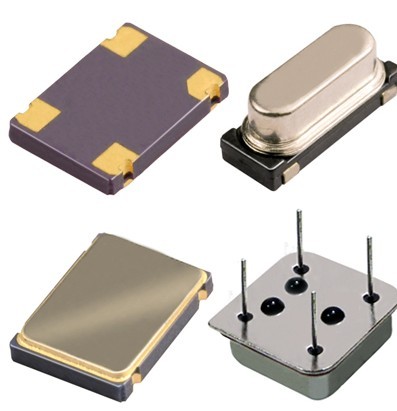

Beyond these electrical specs, package size (e.g., SMD 3225, 2016, 1612) dictates the manufacturing technology required. Smaller footprint SMD crystals require advanced photolithography techniques rather than traditional mechanical cutting, limiting the pool of capable suppliers.

Manufacturing Quality and Factory Vetting

The reliability of a quartz crystal is largely determined by the strictness of the manufacturer's environmental controls. Airborne particulates trapped inside the package during sealing will alter the crystal's mass, causing unpredictable frequency drift over time.

When evaluating a new supplier, look beyond the datasheet and focus on their production floor:

• Blank Preparation: Does the factory use high-grade synthetic quartz? The angle of the cut (AT-cut for MHz, tuning fork for kHz) must be exceptionally precise to maintain temperature stability.
• Cleanroom Standards: Electrode deposition and sealing must occur in strictly controlled cleanrooms (Class 100 or better).
• Sealing Methods: Seam sealing (welding) generally offers superior hermeticity and lower aging rates compared to glass sealing, especially for miniaturized SMD packages.
• 100% Final Testing: Reputable factories do not rely solely on batch sampling. They utilize automated testing lines to verify frequency, ESR, and drive level on every single unit before taping and reeling.

Because quality is invisible from the outside of the component, executing rigorous factory audits is essential to verify a supplier's cleanroom classifications and calibration of their network analyzers and temperature chambers.

Pricing, MOQs, and Supply Chain Realities

The electronic component market is subject to fluctuating lead times and raw material costs. Sourcing crystals directly from Asian manufacturers offers significant cost advantages, provided you can meet the volume requirements.

Cost Drivers

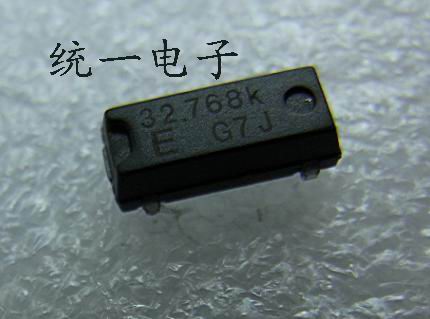

1. Frequency Customization: Standard frequencies (e.g., 32.768 kHz, 16 MHz, 24 MHz) are produced in massive batches, keeping costs low. Custom frequencies require dedicated lapping and tuning setups, drastically increasing MOQs and unit costs.
2. Package Miniaturization: Transitioning from a 3225 package to a 1612 package increases the unit price due to the advanced photolithography required for smaller quartz blanks.
3. Tolerance and Temperature Range: Industrial (-40°C to 85°C) and automotive (AEC-Q200) grades command a premium over standard commercial grades due to lower yield rates and extensive temperature cycling tests.

To mitigate defect risks before components reach your assembly lines, implementing strict quality control and pre-shipment inspections at the factory level is a highly recommended safeguard.

Buyer FAQs

Consistent electronic production relies entirely on the predictability of your passive components. By partnering with vetted manufacturers who maintain strict cleanroom protocols and automated testing, buyers can secure aggressive bulk pricing without compromising the long-term reliability of their end products. Integrating professional product sourcing strategies ensures your supply chain remains resilient, even in volatile markets.
