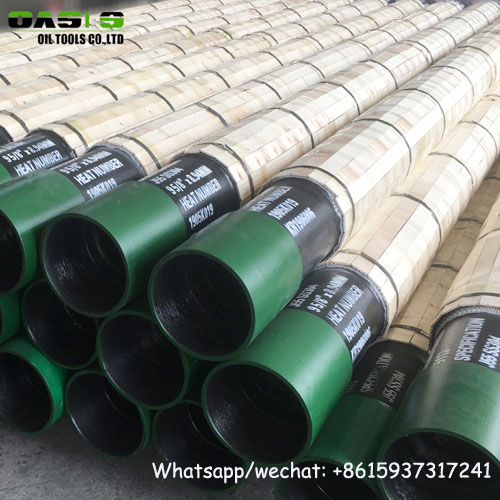

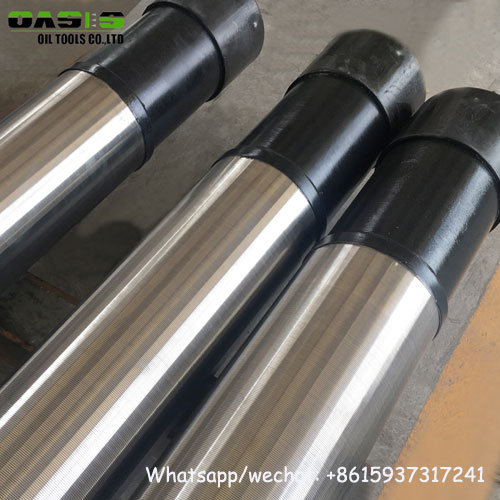

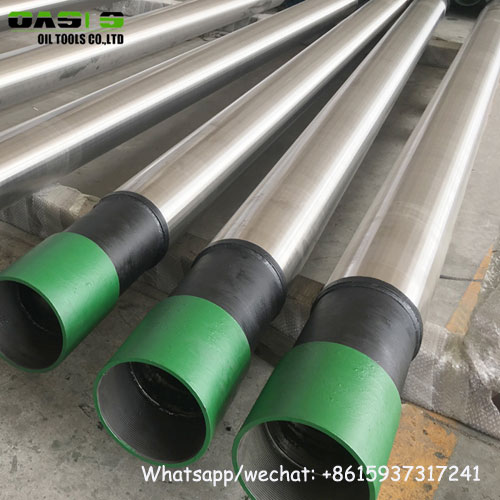

Casing Pipe Based Well Screen with Johnson Screen Jacket
These API casing pipe based well screens feature a Johnson screens jacket. They are designed for efficient sand control and maximized well productivity.
Technical Specifications
Product Overview
High-Performance Well Filtration
This API casing pipe-based well screen features a Johnson screen jacket designed for optimal sand control and fluid intake in demanding oil and gas applications. The dual-layer construction combines a high-strength perforated base pipe for structural integrity with a precision-engineered wire-wrapped jacket to maximize open area. These screens are engineered to ensure long-term well productivity and durability in harsh downhole environments.
Technical Construction
Construction Design
- Perforated base pipe for internal support
- External Johnson-type wire-wrapped screen jacket
- Welded assembly with coupling length
- Multilayer screen configuration available
Base Pipe Type
- API Casing Pipe
- Seamless Pipe
- Welded Pipe
Key Dimensions
9.625 in
Outer Diameter
8.94 mm
Wall Thickness
Material Specifications
- Available Materials
- Stainless Steel 304Stainless Steel 304LStainless Steel 316Stainless Steel 316LCarbon Steel Q235Stainless Steel 201J55
Connection & Installation
Connection Types
STC ThreadedLTC ThreadedBTC ThreadedWeld Collar
Applications
Primary Applications
- Oil and Gas Well Exploitation
- Water Well Filtration
- Sand Control Systems
- Environmental Remediation Projects
Logistics & Quality
- Packaging
- Bubble bags and wooden pieces used to protect Johnson screen jackets during transit.
- Traceability
- Yes
