Cantilever CNC Machining Center
This cantilever CNC machining center is designed for heavy-duty machining. It features a robust frame, advanced control system, and versatile tooling capabilities for precise and efficient material processing.
Technical Specifications
Overview

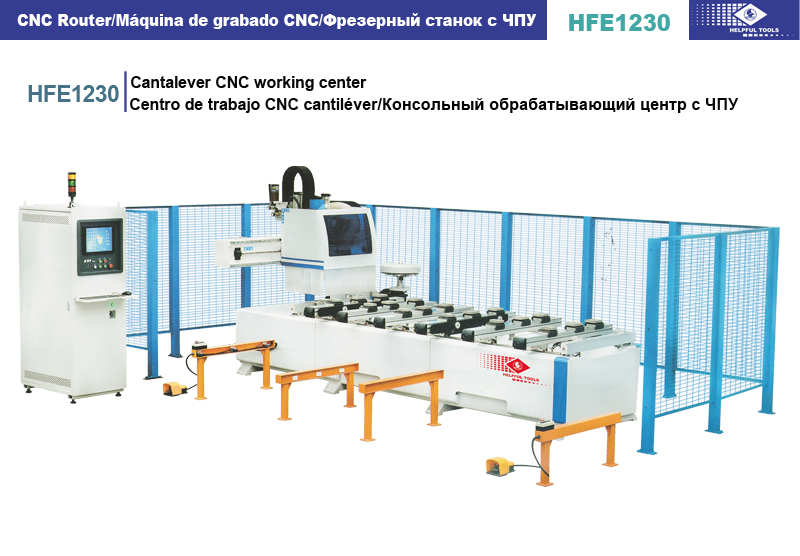

Heavy-Duty Cantilever CNC Machining Center
This high-performance cantilever CNC working center is engineered for precision and efficiency in heavy-duty machining operations. Designed for routing, engraving, and milling, the machine features a robust structure that ensures stability during high-speed processing. It is an ideal solution for industrial applications involving wood, plastics, and composite materials, offering reliable accuracy and repeatability.
Technical Specifications
- Travelling Size
- 3400 x 1640 x 250 mm
- Working Size
- 3250 x 1250 x 135 mm
- Table Size
- 3060 x 1200 mm
Performance Metrics
Key Performance Metrics

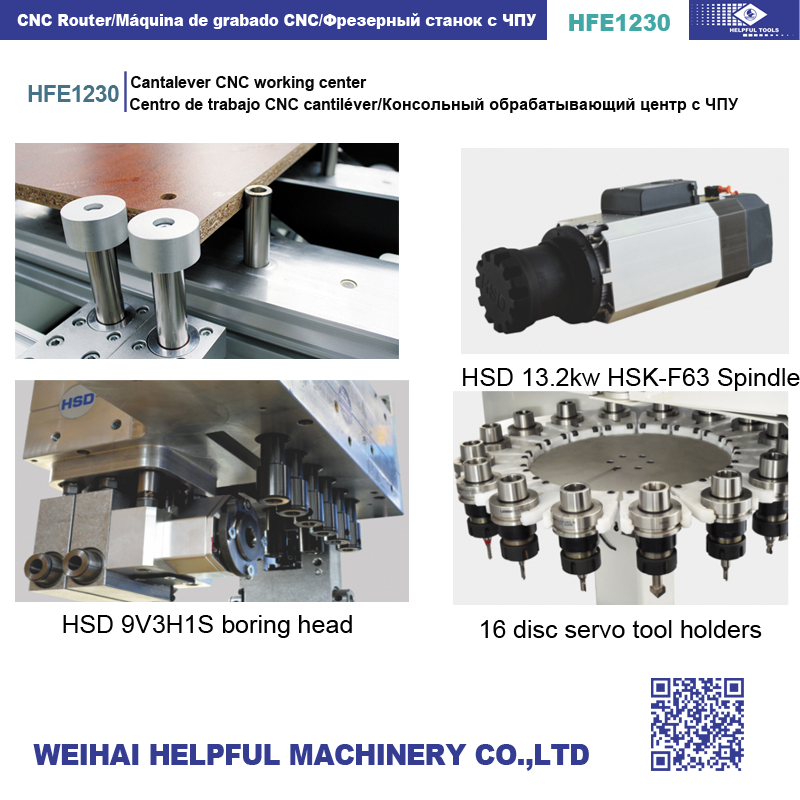

13.2 kw
Spindle Power
24,000 r/min
Max Spindle Speed
80 m/min
Max Travelling Speed
20 m/min
Max Working Speed
System Configuration
- Transmission System
- X/Y Rack and PinionZ Ball Screw
- Driving System
- Yaskawa (Japan)
- Table Structure
- Vacuum Table
Tooling

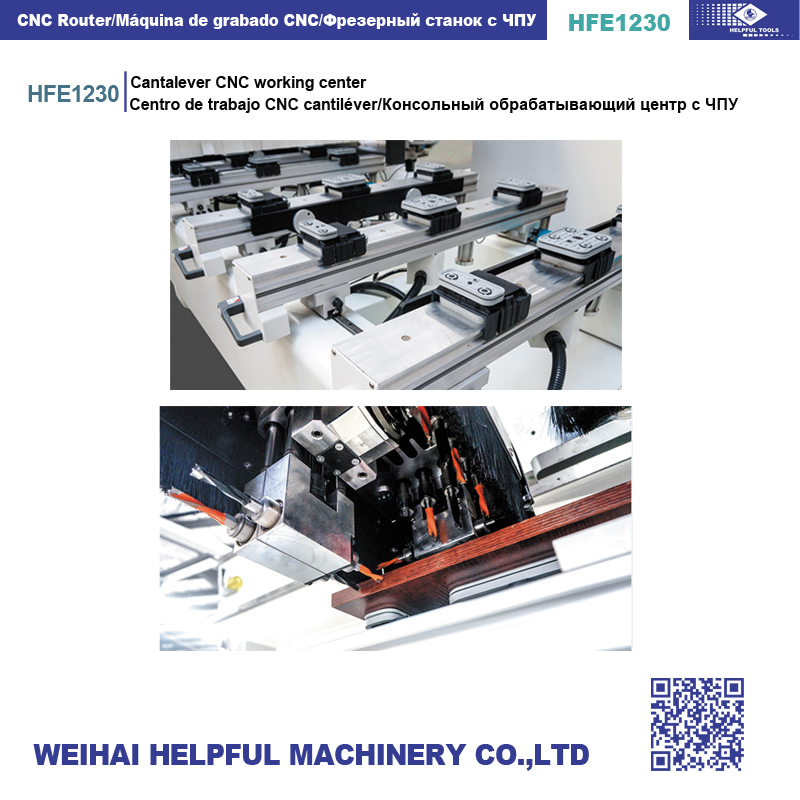

Suction Cup Options
- 12pcs standard suction cup (115mm x 140mm)
- 6pcs medium suction cup (125mm x 75mm)
- Tool Magazine
- Carousel Type (16 pcs)
Power Requirements
- Electrical Requirements
- AC380V / 3PH / 50HZ
