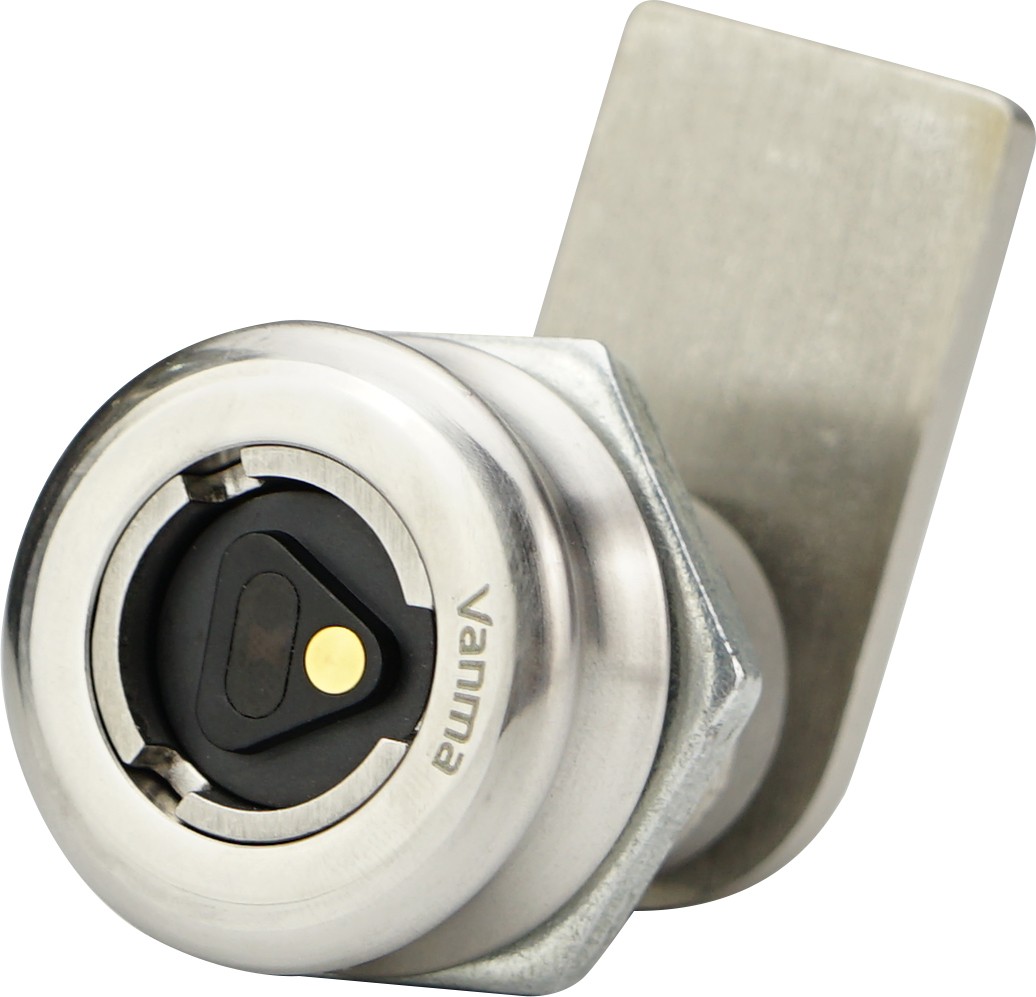

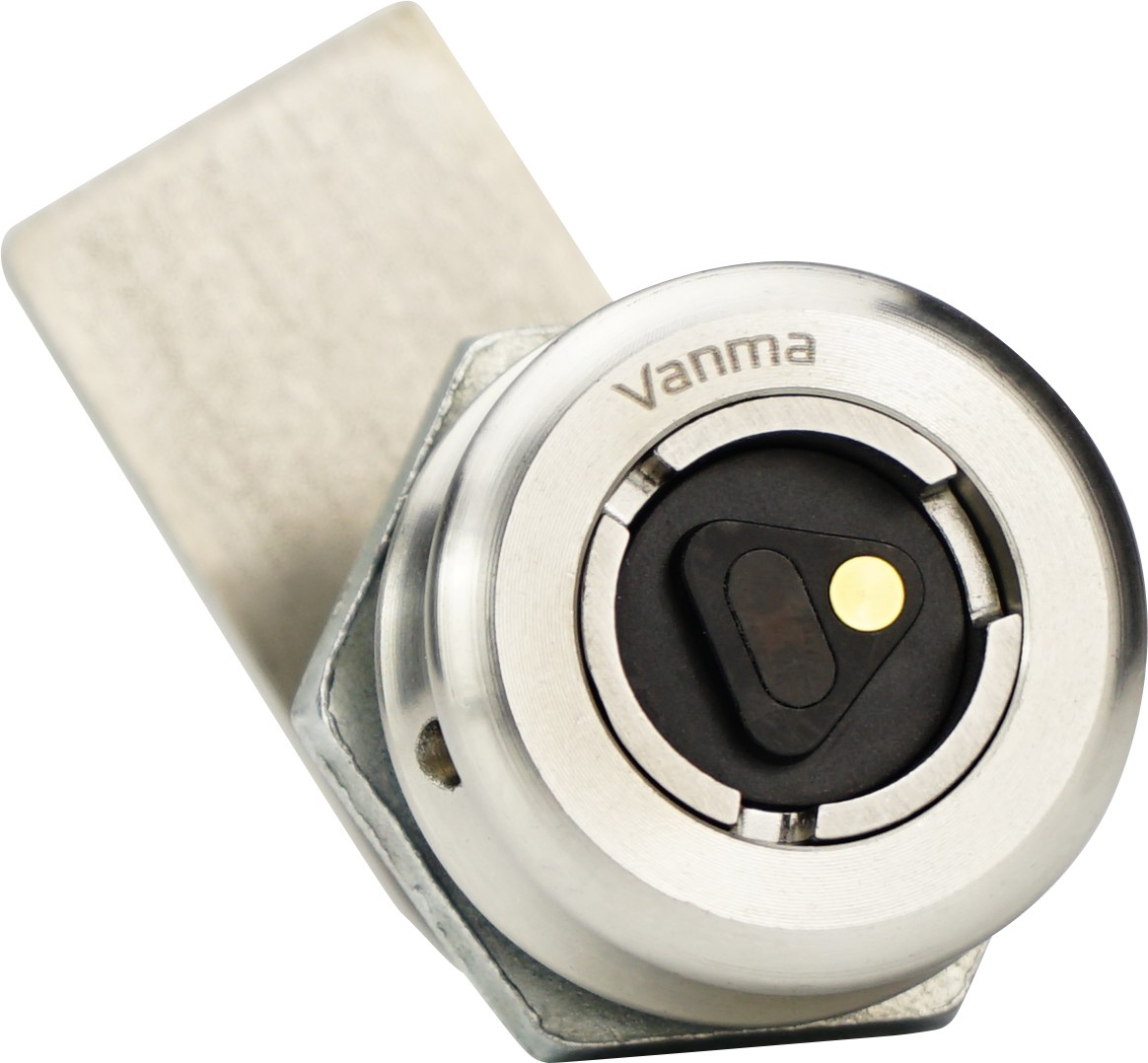

Cam Lock for Tool Boxes
This cam lock is designed for tool boxes and other security applications. It features a durable metal construction with a smooth, reliable locking mechanism for securing drawers, cabinets, and enclosures.
Technical Specifications
Product Overview
Smart Key-Centric Access Control
This advanced cam lock system transforms traditional tool box security into a managed access control solution using smart keys and electronic cylinders. The system eliminates the need for multiple physical keys by allowing one programmable smart key to open various locks, while providing full audit trails of every unlock event. Designed for high-security environments, it requires no wiring or internal power source, making it a maintenance-free choice for industrial and professional storage.

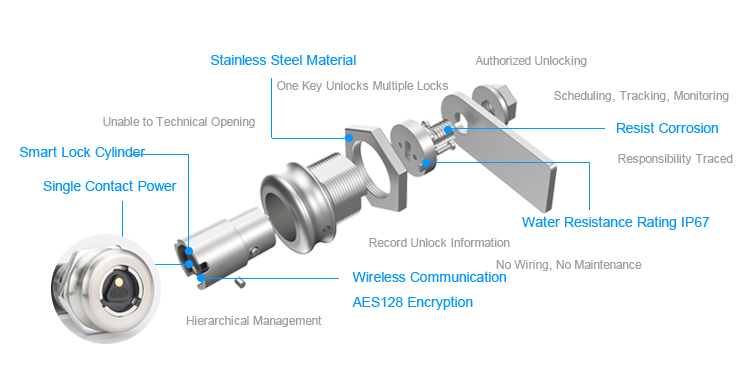

Core Features
Key Features
- One key unlocks multiple locks
- No wiring or external power required (passive lock)
- AES128 encrypted wireless communication
- Programmable access permissions
- Full audit trail and tracking capabilities
- Maintenance-free design
Technical Specifications

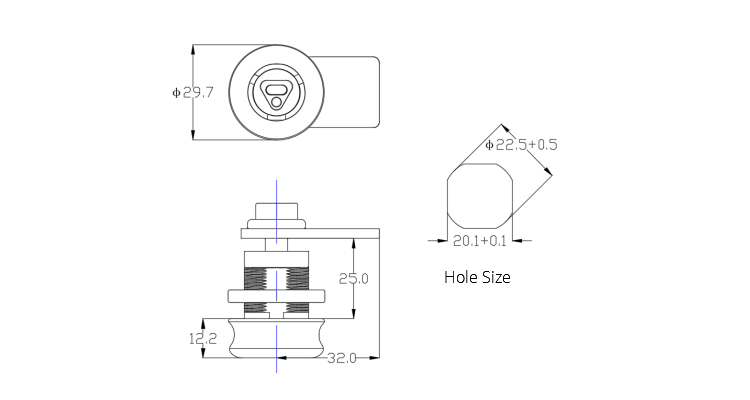

Physical Dimensions
29.7 mm
Face Diameter
25 mm
Cylinder Length
32 mm
Base Diameter
- Installation Hole Size
- 20.1mm x 22.5mm
- Protection Ratings
- IP67 (Lock)IP65 (Key)IK10 (Impact)Anti-Corrosion

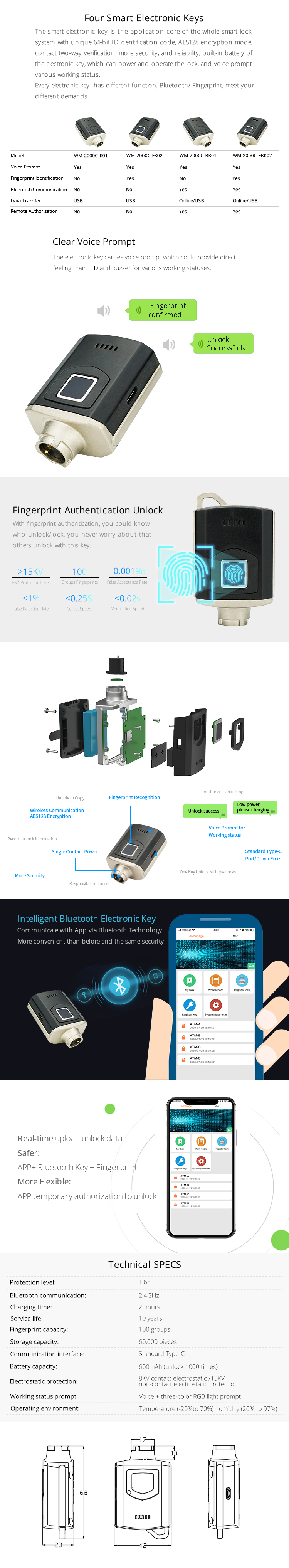

Electronic Key Performance
Biometric Performance
| Metric | Value |
|---|---|
| Fingerprint Capacity | 100 Groups |
| False Acceptance Rate | 0.001% |
| False Rejection Rate | <1% |
| Verification Speed | <0.02s |
| ESD Protection | >15KV |
Battery & Power
600 mAh
Battery Capacity
1,000 times
Unlocks per Charge
2 hours
Charging Time
Management System

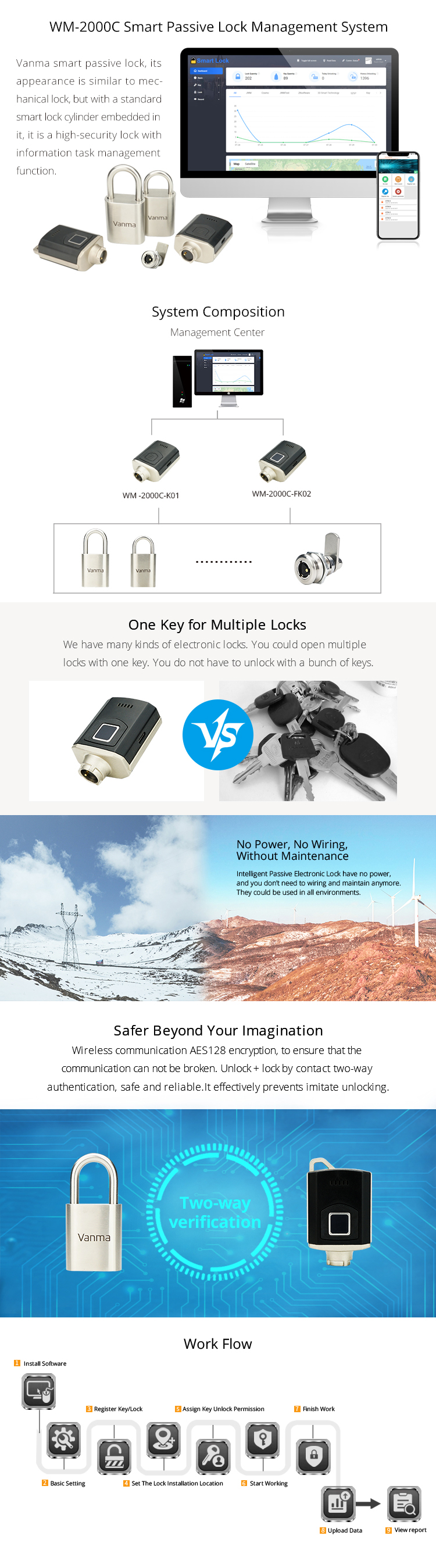

System Workflow
- Install management software
- Register keys and locks in the system
- Assign specific unlock permissions to users
- Perform work and upload unlock data
- Generate and view audit reports
- Event Storage
- 60000 logs
Construction
Material
Stainless SteelDurable Metal Alloy
