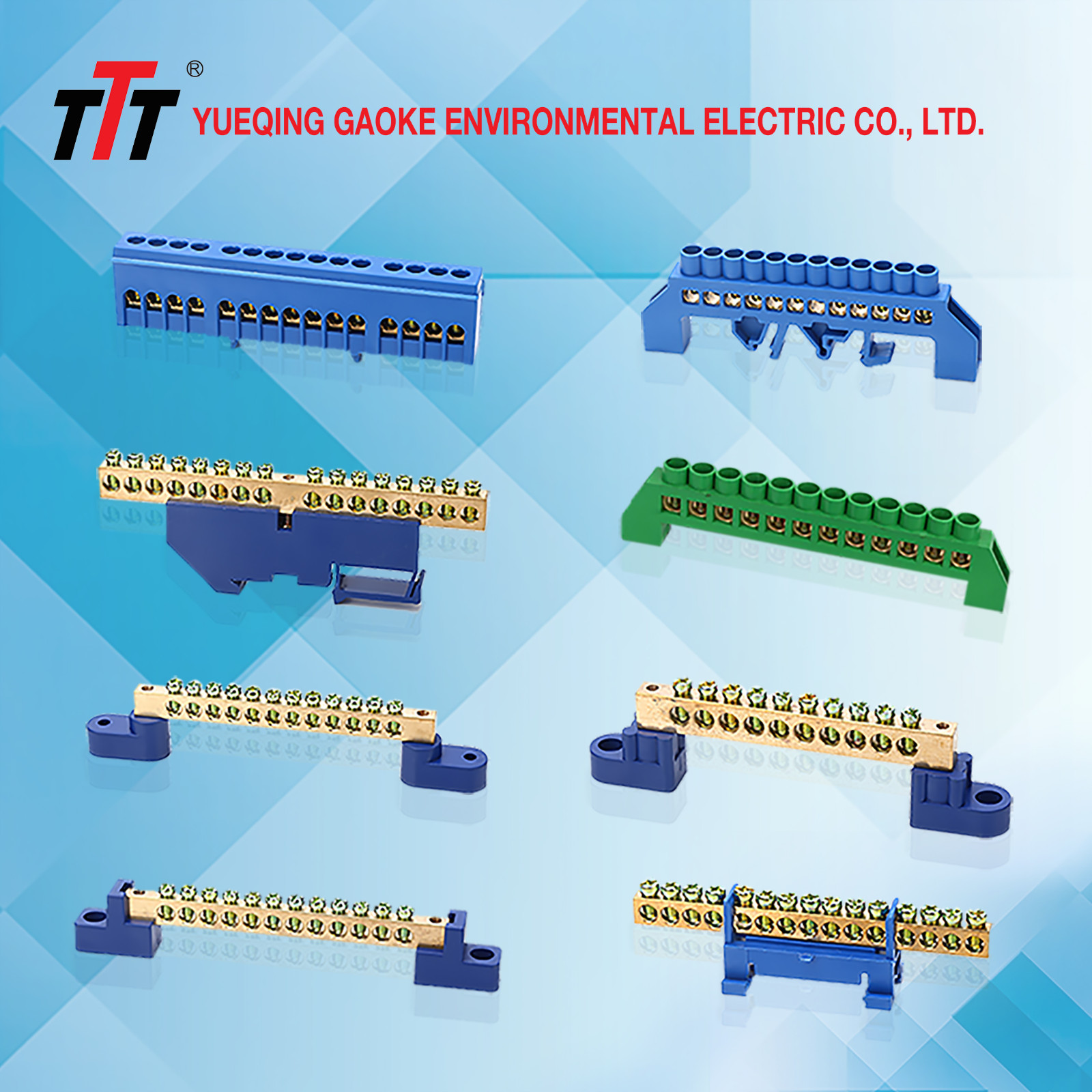

Brass Electrical Terminal Block
These brass terminal blocks are designed for secure and reliable electrical connections. They are available in multiple configurations and sizes to accommodate various wiring applications.
Technical Specifications
Overview
High-Performance Brass Terminal Blocks
These brass terminal blocks are engineered for high-current applications, offering superior conductivity and durability. Manufactured with high-quality brass raw materials and treated with acid-pickling for oxidation resistance, they ensure reliable connections in demanding electrical environments. Their precise construction facilitates convenient wiring and long-term stability, making them an essential component for control panels and power distribution systems.
Technical Specifications
Key Features
High Current CapacityCorrosion ResistantPrecision ManufacturedEasy Installation
Available Brass Cross-Sections
- 6 x 9 mm²
- 8 x 12 mm²
- Material Composition
- High-Quality BrassAcid-Pickled Finish

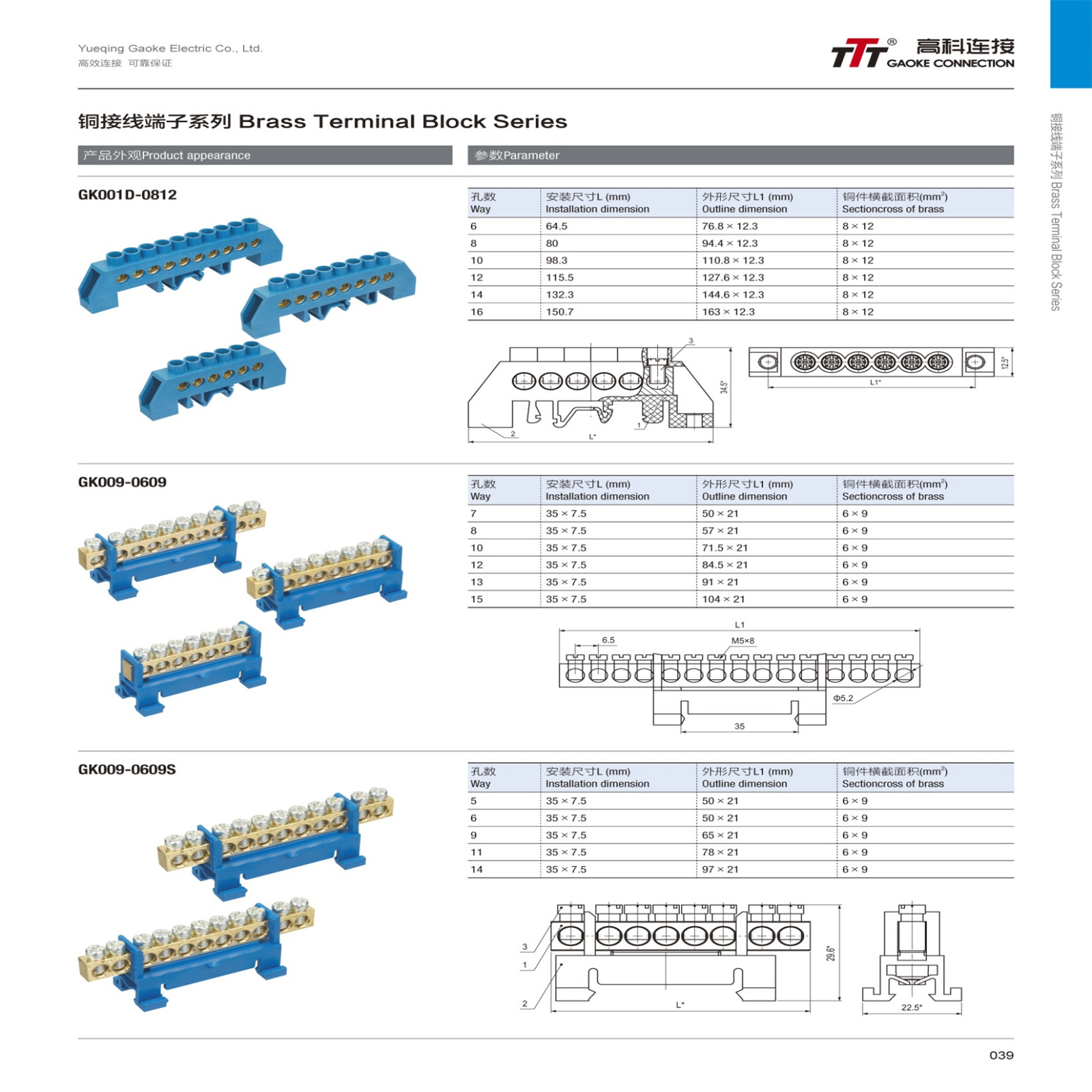

Model Data
Common Model Specifications
| Model Series | Way Range | Cross Section (mm²) |
|---|---|---|
| GK001D-0812 | 6-16 | 8x12 |
| GK009-0609 | 7-15 | 6x9 |
| GK009-0609S | 5-14 | 6x9 |
| GK001-0609 | 4-12 | 6x9 |
| GK001-0812 | 4-12 | 8x12 |
