Bidirectional Air Ventilation System
This bidirectional air ventilation system is designed for both ventilation and air conditioning applications. The system is equipped with dual fans to facilitate bidirectional airflow, ensuring effective air exchange and improved indoor air quality.
Technical Specifications
Overview
High-Efficiency Bidirectional Air Ventilation

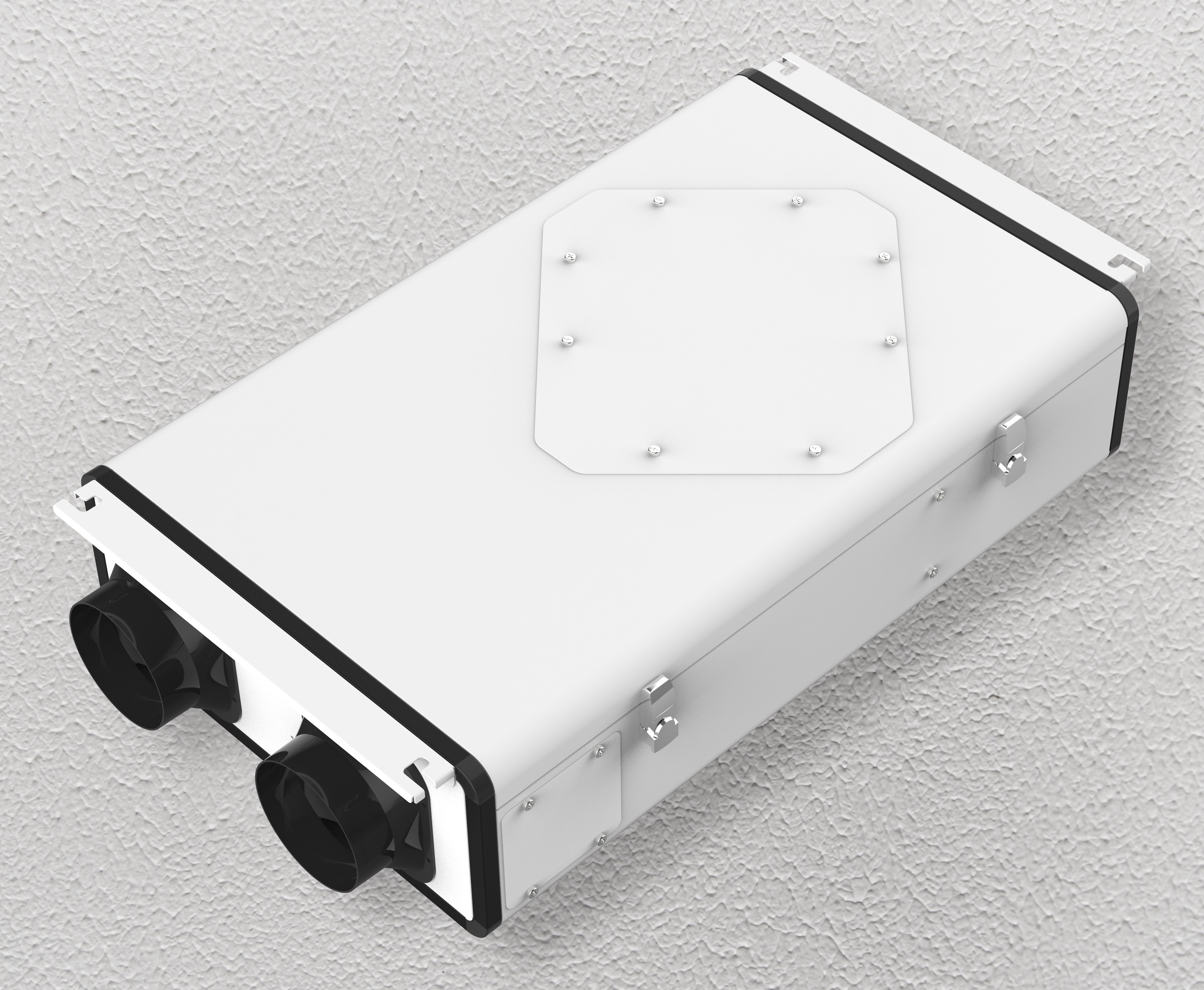

This bidirectional air ventilation system provides comprehensive fresh air exchange with full heat recovery to maintain indoor air quality and energy efficiency. Featuring a sleek arc-shaped design and a durable aluminum alloy frame, it is designed for ceiling-mounted installation in various indoor environments. The system integrates advanced H13-grade filtration and intelligent controls to ensure a healthy, comfortable, and automated living or working space.
Core Performance
Performance Highlights
350 m³/h
Max Airflow
99.9 %
Filtration Efficiency
230 ㎡
Max Coverage Area
Technical Specifications
Model Comparison
| Model | Dimensions (H×W×D) | Fresh Air Volume | Power | Noise Level | Applicable Area |
|---|---|---|---|---|---|
| HFSQ-150DH-A | 940×580×245mm | 150m³/h | 130W | ≤43dB(A) | 60-100㎡ |
| HFSQ-250DH-A | 940×580×245mm | 250m³/h | 230W | ≤44dB(A) | 100-170㎡ |
| HFSQ-350DH-A | 970×620×245mm | 350m³/h | 300W | ≤48dB(A) | 140-230㎡ |
Installation
Ceiling Mounted
- Power Supply
- AC220V / 50Hz
Key Features
System Capabilities
- Bidirectional ventilation with full heat recovery
- Optional DC or AC motor configurations
- Imported heat recovery paper material (antibacterial and flame retardant)
- H13-grade high-efficiency filtration (0.3μm particles)
- Intelligent automated control based on indoor environment
- Sleek arc design with spray-coated aluminum alloy frame
- Optional WiFi remote control support
- Filtration Grade
- H13 High-Efficiency
- Certifications & Standards
- Heat RecoveryAntibacterialFlame RetardantWiFi Optional
