Technical Specifications
Overview
Versatile Precision Machining

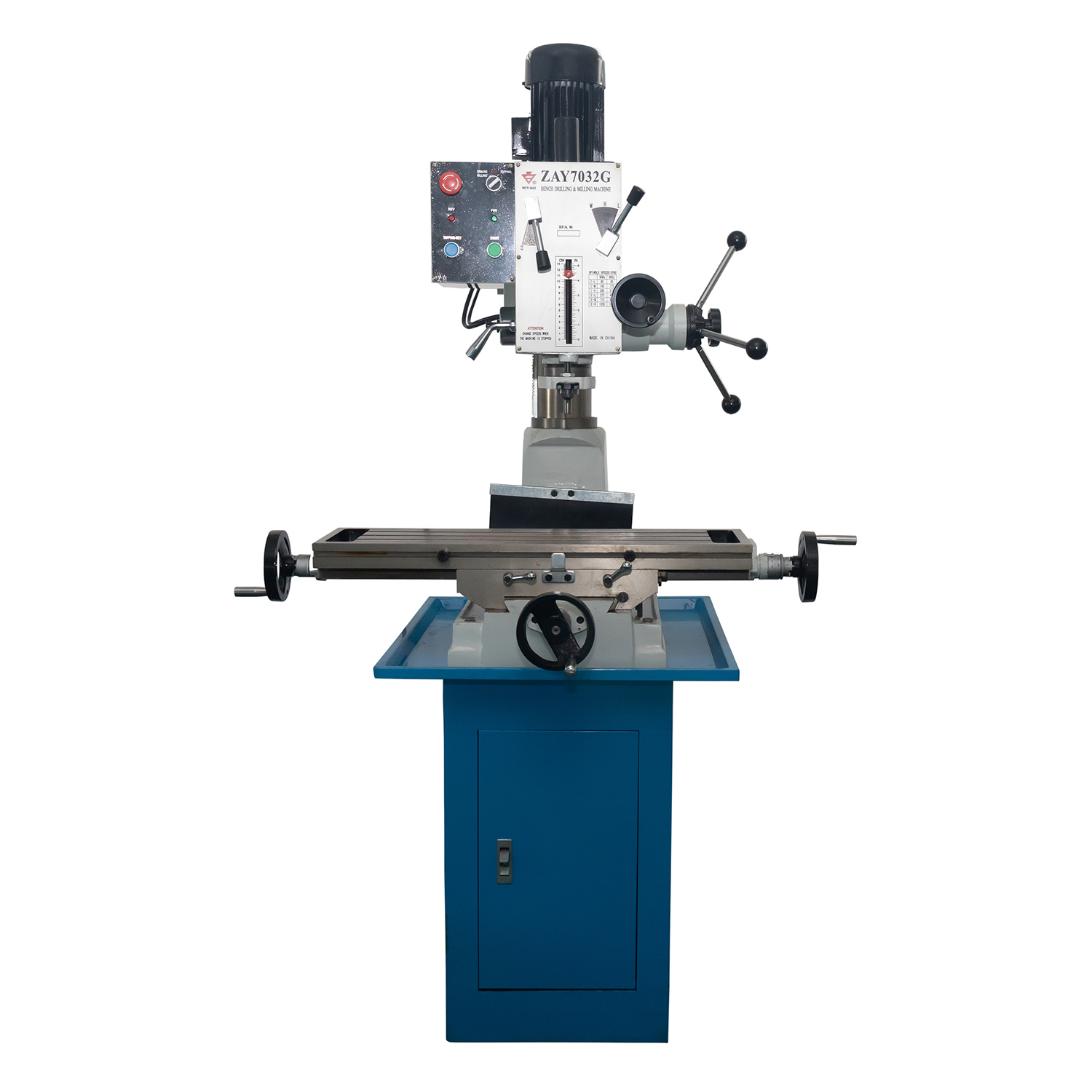

This benchtop drilling and milling machine is engineered for high-precision metalworking, offering robust rigidity and powerful cutting capabilities. It features a versatile headstock that swivels 360 degrees horizontally and a micro-feed system for meticulous depth control. Designed for stability and accuracy, it is an ideal solution for professional workshops requiring drilling, milling, and tapping functionality in a compact footprint.
Performance Highlights
Core Capabilities
360 °
Headstock Swivel
1,250 RPM
Max Spindle Speed
Technical Specifications
Spindle Speeds (50Hz)
| Setting | Speed (RPM) |
|---|---|
| I-L | 80 |
| I-M | 145 |
| I-H | 260 |
| II-L | 375 |
| II-M | 710 |
| II-H | 1,250 |
Spindle Speeds (60Hz)
| Setting | Speed (RPM) |
|---|---|
| I-L | 95 |
| I-M | 175 |
| I-H | 310 |
| II-L | 450 |
| II-M | 850 |
| II-H | 1,500 |
- Model Number
- ZAY7032G
Operational Features
Safety Equipment
- Emergency stop button
- Chuck guard
- Forward/Reverse switch for tapping
- Safety stop button
- Supported Operations
- DrillingMillingTapping
Build & Construction
Machine Construction
- Sturdy base and column for maximum stability
- Adjustable gibs on table for precision maintenance
- Variable speed motor for material-specific optimization
- Tiltable milling head for angled machining
- Multi-axis adjustable worktable
Precision Controls
Micro Feed PrecisionPrecise PositioningStrong Rigidity
