Benchtop Drilling and Milling Machine
This benchtop drilling and milling machine is designed for precision metalworking. It features variable speed control, a robust milling head, and a stable base for accurate drilling and milling operations.
Technical Specifications
Overview
Versatile Benchtop Precision

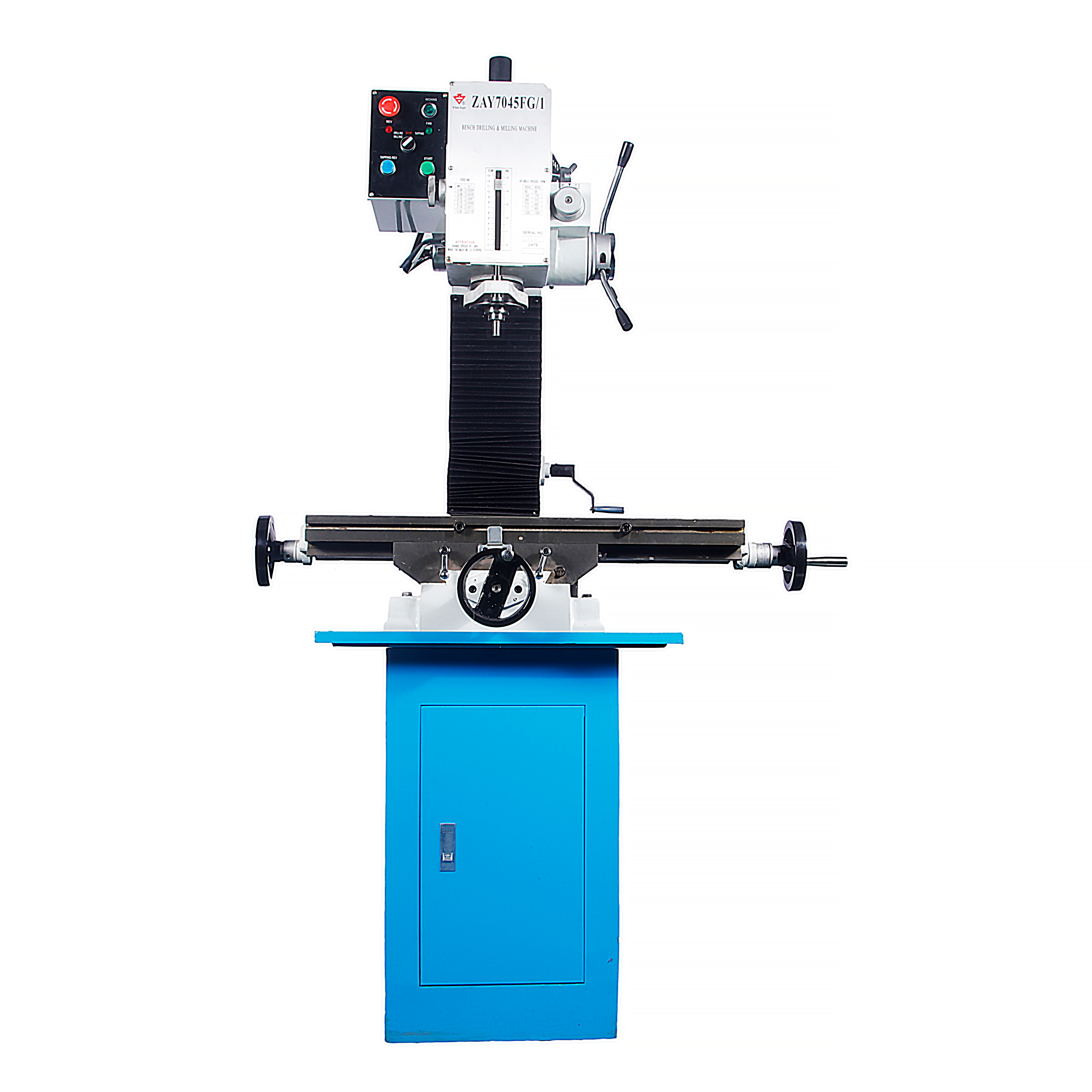

The ZAY7045FG/1 is a robust benchtop drilling and milling machine engineered for precision metalworking tasks including surface cutting, drilling, milling, and tapping. Its heavy-duty construction and precision-machined components make it an ideal choice for skilled operators in small workshops or professional hobbyist settings. This machine offers a stable platform for accurate positioning and controlled operations across various metal materials.
Key Capabilities
- Primary Functions
- Surface CuttingDrillingMillingTapping
Performance Metrics
Spindle Speed Range (RPM)
145 RPM
Low Speed
710 RPM
Mid Speed
1,250 RPM
High Speed
Compatible Materials
Normal SteelCast Iron
Standard Equipment
Standard Accessories
- Allen wrench
- Wedge-Wrenches
- Drill chuck arbor
- Screw
- Draw bar
- Washers
Optional Upgrades
Optional Accessories
- Machine stand
- Power feed
- 90mm parallel vise
- 120mm parallel vise
- Drill chuck
- Milling cutter holder
- Changing sleeve
- Mill chuck
- Auto-tapping electrical
- Boring bar
- Working lamp
- Coolant system
- DRO/XY
Operational Features
Control & Safety
- Inching control
- Tapping-Reverse (REV) function
- Variable speed spindle
- Precision milling table with handwheel controls
- Safety switch
- Adjustable depth stop
Technical Identification
- Model Number
- ZAY7045FG/1
