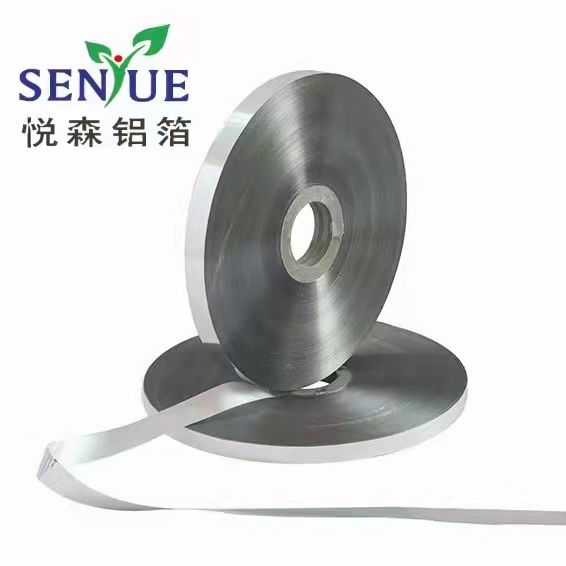

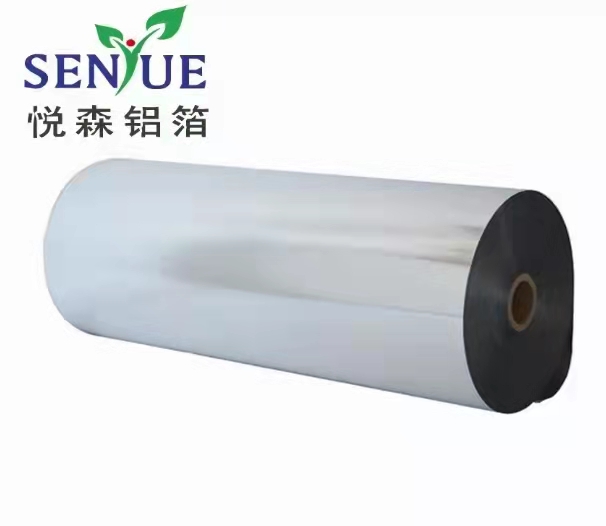

Backed Aluminum Foil for HVAC Flexible Ducting
This backed aluminum foil is a flexible raw material used in HVAC systems. It offers high mechanical strength and flexibility for shrinking air ducts.
Technical Specifications
Product Overview
Professional HVAC Ducting Material
This backed aluminum foil is a flexible raw material engineered specifically for HVAC systems. It offers excellent mechanical characteristics and high flexibility, making it ideal for creating efficient air ducts, ventilation hoses, and industrial tubing. Designed for high utilization rates, this material ensures reliable performance in demanding ventilation applications.
Key Features
- Key Features
- High flexibilityExcellent mechanical strengthCompetitive pricingHigh material utilization
Technical Specifications
Inner Diameter (ID)
- 53mm (2.0in)
- 76mm (3.0in)
- Material Composition
- AL+PET
- Temper
- Soft
- Thickness Range
- 19µm - 150µm
- Width Range
- 9mm - 1300mm
- Outer Diameter (OD)
- 200mm - 600mm
- Color
- Transparent
Applications
Typical Applications
Flexible ductCondition hoseLampblack machine tubeBathroom pipe
Performance Data
Material Performance Metrics
| Structure | Unit Weight | Tensile Strength (N/mm²) | Elongation at Break (%) |
|---|---|---|---|
| AL7+PET15 | 42.9 | ≥75 | ≥35 |
| AL9+PET12 | 44.1 | ≥75 | ≥35 |
| AL9+PET18 | 53.0 | ≥75 | ≥35 |
| AL9+PET23 | 59.5 | ≥75 | ≥35 |
| AL9+PET30 | 69.0 | ≥75 | ≥35 |
| AL12+PET36 | 86.0 | ≥75 | ≥35 |
| AL20+PET25 | 92.0 | ≥75 | ≥35 |
