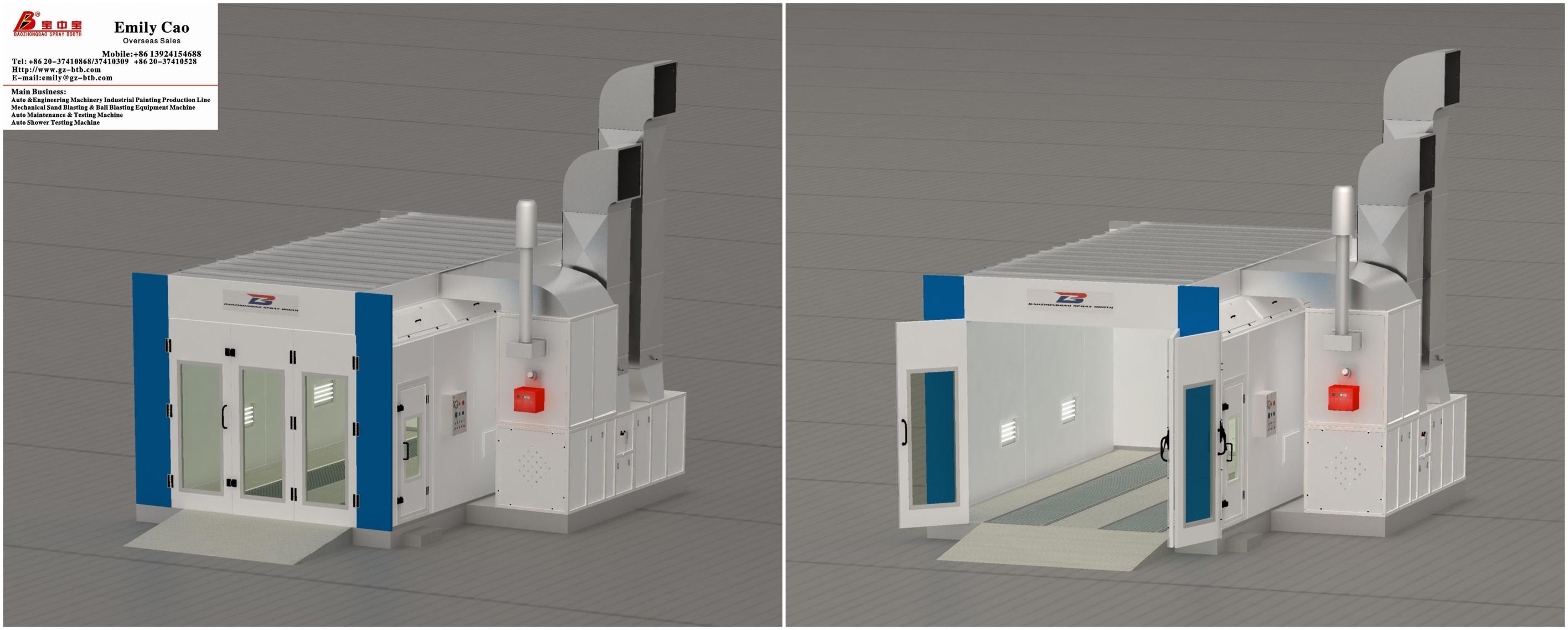

Automotive Spray Booth with Rockwool Panels
This automotive spray booth features 50mm rockwool wall panels and a galvanized steel roof. The light box is designed to open from the outside.
Technical Specifications
Overview
Professional Automotive Spray Booth
This high-performance automotive spray booth is engineered for industrial-grade painting and finishing applications. Featuring a robust, heat-insulated construction and a dual-stage filtration system, it ensures a clean, safe, and efficient working environment. The booth integrates precise climate control and advanced airflow management to deliver superior paint application and curing results.
Dimensions
Booth Dimensions
| Component | Dimensions (mm) |
|---|---|
| Inside Size | 6900 x 4000 x 2650 |
| Outside Size | 7000 x 5700 x 3430 |
| Front Door | 3000 (W) x 2600 (H) |
| Emergency Door | 900 (W) x 1900 (H) |
Performance Metrics
Key Performance Metrics
17 kW
Total Power
0.35 m/s
Load Air Speed
80 °C
Max Temperature
98 %
Filtering Efficiency
Air Circulation
Fan System Capacity
- Inlet Fan: 7.5kW, 25000 m³/h capacity
- Outlet Fan: 5.5kW, 20000 m³/h capacity
- Air recycling frequency: 320 times/h
Heating System
Heating System
- Burner: Italy Riello G20 Diesel burner
- Heating Capacity: 180000 Kcal/h
- Heating Time (20-60°C): 6-8 minutes
- Fuel Consumption: 6-8 kg/vehicle
- Heat Exchanger: 2mm SUS304 stainless steel
Construction
- Construction Materials
- EPS Wall PanelsGalvanized Steel Roof6.3mm Safety GlassAluminum-Alloy FrameAnti-flame Insulation
Lighting
- Lighting Configuration
- 40x 36W Philips ceiling lamps and 16x 36W bottom lamps, providing 1000 Lux total illumination.
Environmental Control
Filtration & Environmental
- Dual-stage filtering structure
- Primary filter: >10 μm granule capture
- Ceiling filter: >4 μm granule capture
- Includes active carbon and multi-layer fiberglass filters
