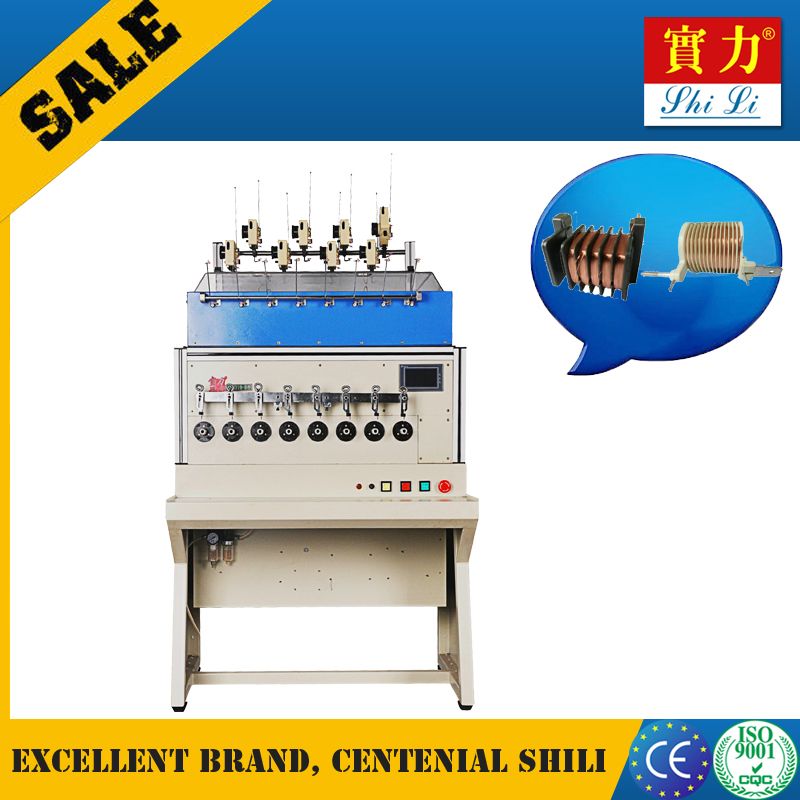

Automatic Twisted Coil Winding Machine
This machine utilizes a programmable logic controller and servo motors for precise control. It is designed for high-speed twisting with low noise and accurate positioning.
Technical Specifications
Overview
High-Precision Twisted Coil Winding Solution
This automatic twisted coil winding machine is engineered for high-speed, high-precision production of various thin wire, twisted, synchronous motor, and ignition coils. Featuring dual servo motor control and a high-precision magnetic tensioning system, it ensures superior winding quality while optimizing copper wire usage. The system integrates advanced PLC controls with a user-friendly touch screen interface, offering reliable performance with low noise and accurate positioning.
Key Components
- Imported Components
- Taiwan PLCTaiwan Servo MotorsJapan NSK/NTN BearingsJapan BANDO BeltsTaiwan TBIA Ball Screws
Features & Capabilities
Core Features
- Unique winding fixture design for rapid setup
- Intuitive touch screen interface for parameter configuration
- Advanced twisted winding capabilities
- Integrated disconnection detection system
- Dual servo motor control for excellence in performance
- High-precision magnetic tension device
Compliance & Standards
CEISO 9001CQC
Application
Suitable Applications
- Thin wire coils
- Twisted coils
- Synchronous motor coils
- Ignition coils
