Technical Specifications
Overview

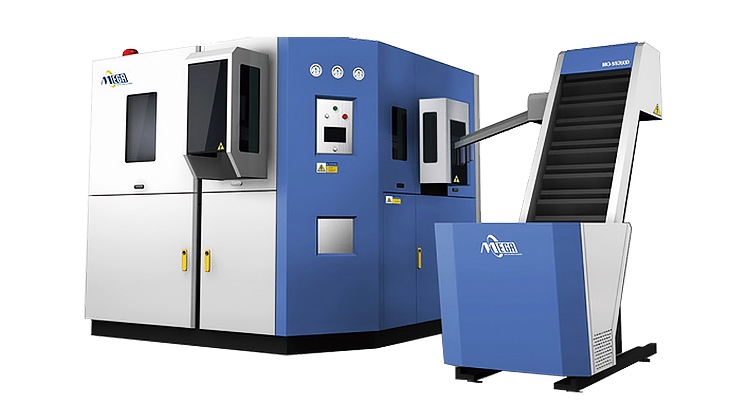

High-Efficiency Linear PET Blow Molding
This series of automatic linear PET blow molding machines is engineered to balance production efficiency with operational simplicity. Designed to reduce energy consumption by up to 30%, these machines provide a cost-effective solution for high-volume bottling needs. The system features advanced PLC control with self-diagnosis and a patented preform spacing mechanism to maximize output performance.
Performance
Maximum Output Capacity
4,500 BPH
Theoretical Output
Technical Specifications
- Supported Container Volume
- 0.1L - 2.5L
- Machine Type
- Automatic Linear PET Blow Molding
- Control System
- PLC Controller with Touch Interface
- Clamping Unit
- Cast molded platen with toggle clamping
Features
Key Features
- Energy-saving design (up to 30% reduction)
- Patented preform spacing system
- Advanced infrared heating system
- Double cylinder stretching unit
- Self-diagnosis PLC alarm system
- Compact space-saving design
Bottle Sample Data
Sample Bottle Specifications
| Type | Capacity | Weight |
|---|---|---|
| Pharmaceutical | 50ml | 10g |
| Detergent | 500ml | 23g |
| Water Bottle | 1000ml | 26g |
| CSD | 3000ml | 54g |
| Edible Oil | 4500ml | 100g |
| PET Jar | 5000ml | 150g |
