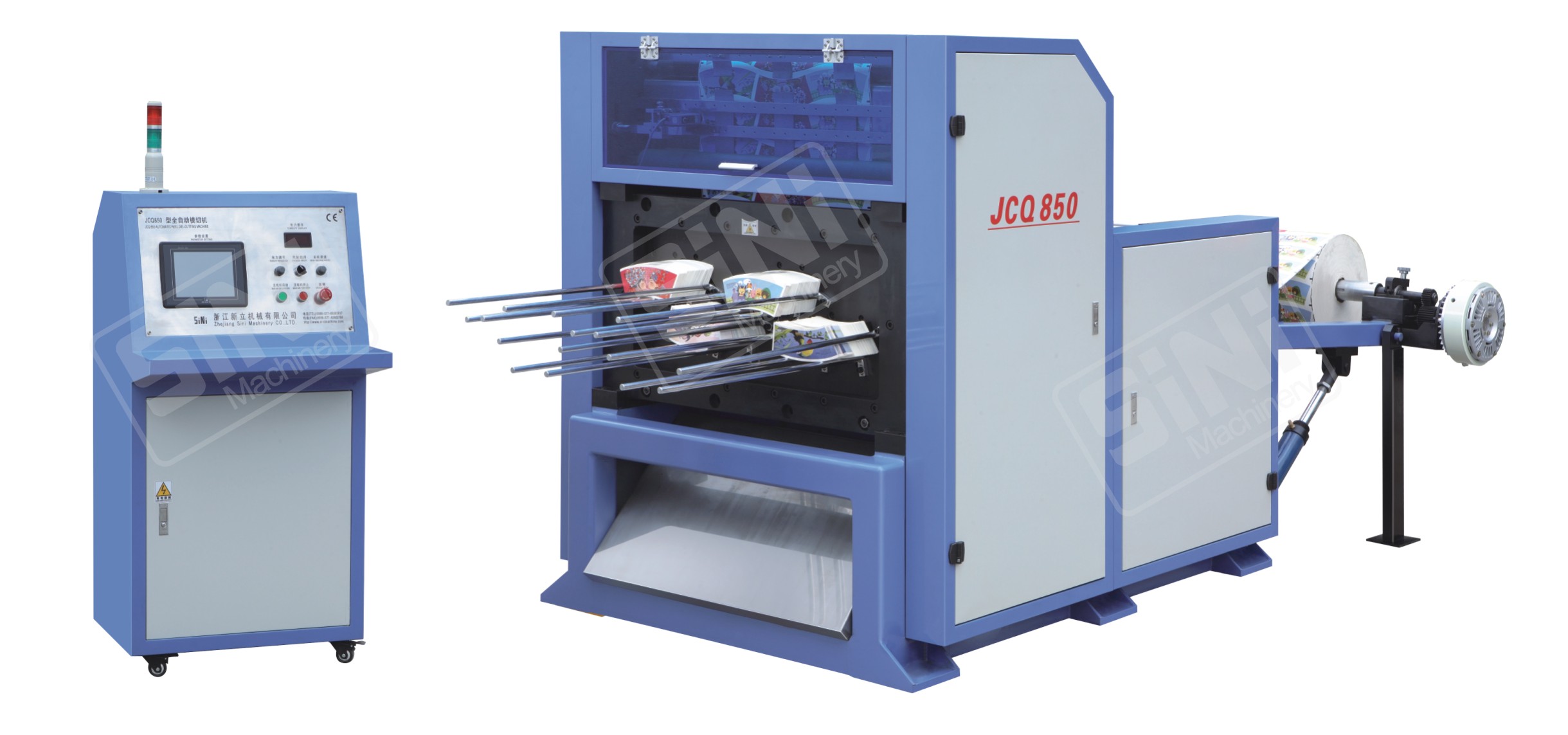

Automatic Paper Roll Punching Machine
This fully automatic die-cutting machine is designed for efficient and precise punching of paper rolls. It is equipped with a safety enclosure and a waste collection system, ensuring consistent quality and minimal material waste.
Technical Specifications
Overview
High-Efficiency Automatic Die Cutting
This automatic paper roll punching machine is engineered for high-volume industrial processing, offering precise die-cutting capabilities for roll paper. Designed for consistent quality and minimal material waste, it features a robust construction suitable for demanding production environments. With its automated feeding and punching mechanisms, it streamlines the manufacturing process for paper-based products.
Performance Metrics
Production Capacity
200 times/min
Max Die Cutting Speed
35 m/min
Min Paper Feed Speed
Technical Specifications
Paper Compatibility
- 125-350g/m2 roll paper
- Width range: 360-850mm
- Roll diameter: <1.5m
Power Requirements
4 kw
Main Power
8.5 kw
Total Power
- Compressed Air
- 0.2mm/min, 0.5MPa
Physical Dimensions
Machine Dimensions
| Component | Dimensions (L x W x H) |
|---|---|
| Main Machine | 2900 x 1400 x 1700 mm |
| Electrical Box | 700 x 700 x 1350 mm |
- Machine Weight
- 3 T
- Roller Surface Length
- 950 mm
Compliance
- Certifications
- CE
