Automatic Paper Plate Forming Machine
This automatic machine efficiently forms paper plates and dishes using multiple working positions. It is designed for economic, high-volume production of disposable paper tableware.
Technical Specifications
Product Overview
High-Efficiency Paper Forming

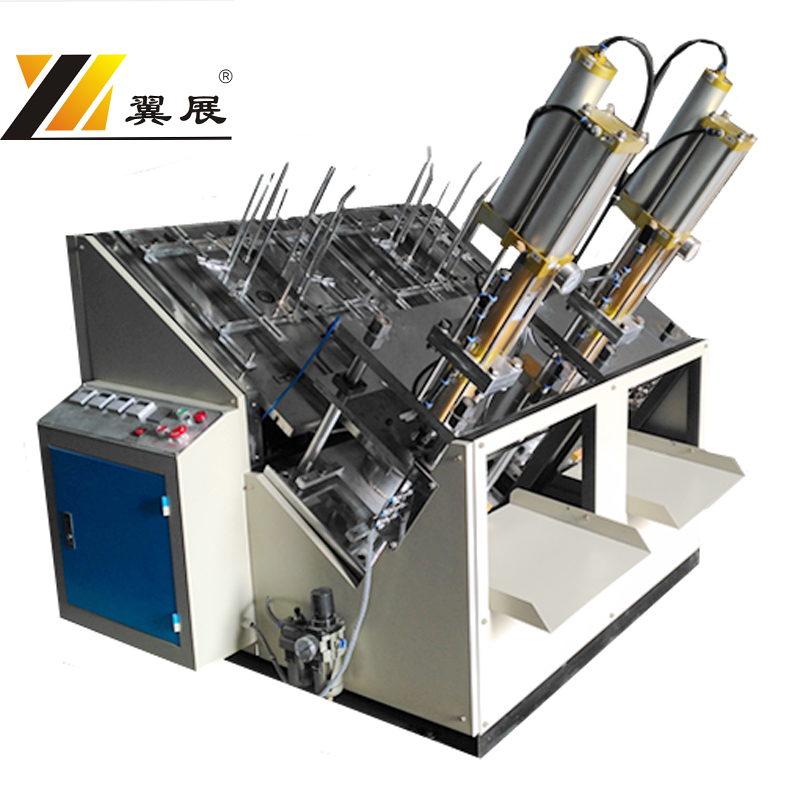

The YZPJ-400 is an automatic, pneumatic paper plate and dish forming machine engineered for economic, high-speed production. It features a dual-mold configuration allowing multiple working positions to operate simultaneously, significantly increasing output efficiency. Designed for safety, ease of operation, and simple maintenance, it serves as a reliable solution for high-volume disposable tableware manufacturing.
Technical Specifications
Production Capacity
80 pcs/min
Max Output
10 inches
Max Plate Size
Dimensions & Weight
| Metric | Value |
|---|---|
| Dimensions (L*W*H) | 1500 x 1350 x 1750 mm |
| Net Weight | 400 kg |
| Gross Weight | 500 kg |
- Compatible Materials
- 180-600gsm CardboardCompound PaperIvory BoardPE Coating Paper
Operational Requirements
Power & Utilities
- Total Power: 3.0 KW
- Voltage Options: 220V (Single Phase) or 380V (Three Phase)
- Frequency: 50 Hz
- Air Pressure: >0.6 MPa
- Air Flow: 0.6 m3/min
