Product Overview
High-Efficiency Paper Lid Production

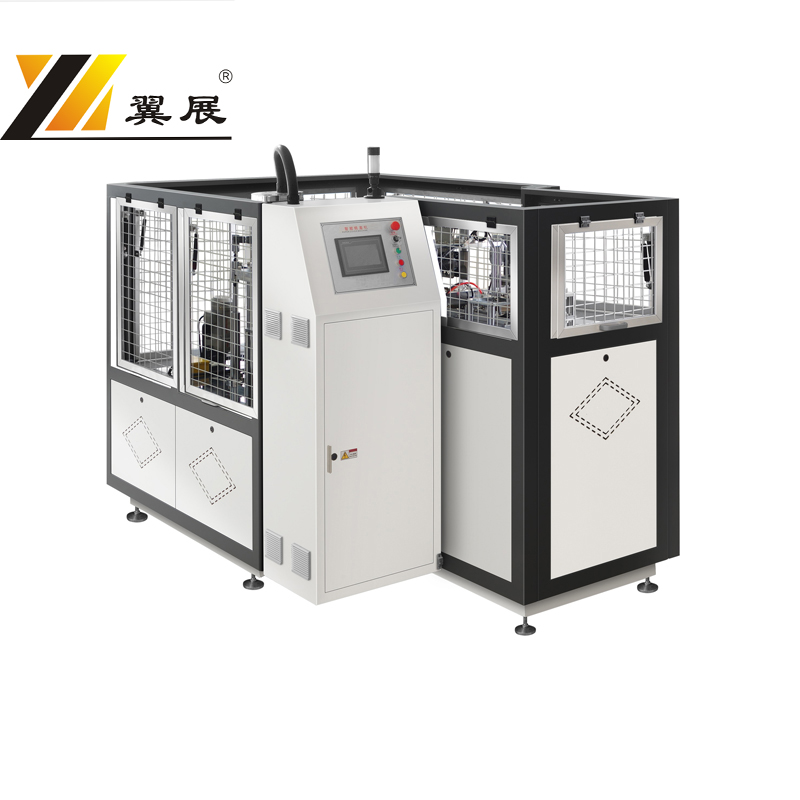

The YZPLM-60 is a specialized automatic forming machine engineered for the rapid production of high-quality paper lids. It is an ideal solution for manufacturing components for coffee cups, instant noodle containers, ice cream tubs, and various fast-food packaging items. Designed for stability and high output, this machine offers a compact footprint that helps maximize your production floor space while maintaining industrial-grade efficiency.
Technical Specifications
Maximum Production Speed
60 Pcs/Min
Output Speed
Supported Materials
- Single PE Coated Paper
- 250-380gsm Paper Thickness
- Lid Size Compatibility
- 65-125mm Diameter, 15-20mm Height
Operational Details
- Power Supply
- 380V / 50Hz / 3PH
- Power Rating
- 7 KW
- Air Consumption
- 0.4MPa 0.12m3/min
Logistics
- Machine Weight
- 3000 kg
- Packing Dimensions
- 2300 x 1700 x 1900mm
Application
- Ideal Applications
- Paper Bowl LidsInstant Noodle ContainersCoffee Cup LidsIce Cream LidsFast-Food Packaging
