Technical Specifications
System Overview
Automated End-of-Line Palletizing
This automatic palletizing system is designed for high-efficiency end-of-line packaging, suitable for bags, cartons, bottles, and cans. The integrated solution includes group organizing, carton pushing, pallet storing, and conveyor systems for both empty and ready pallets. Controlled by a robust PLC and touch screen interface, it ensures consistent and reliable stacking performance for demanding industrial environments.
Performance Metrics
Throughput Capacity
15 units/min
Min Capacity
30 units/min
Max Capacity
- Noise Level
- 75 dB
Technical Specifications
- Power Supply
- 380V AC, 50Hz
- Power Consumption
- 10 KW
- Pneumatic Pressure
- 0.5 - 0.6 MPa
- Air Consumption
- 45 NM3/Hour
Pallet Configuration
- Standard Pallet Size
- 1400 x 1200 x 160 mm
System Components
Included Modules
- Group organizing & pushing machine

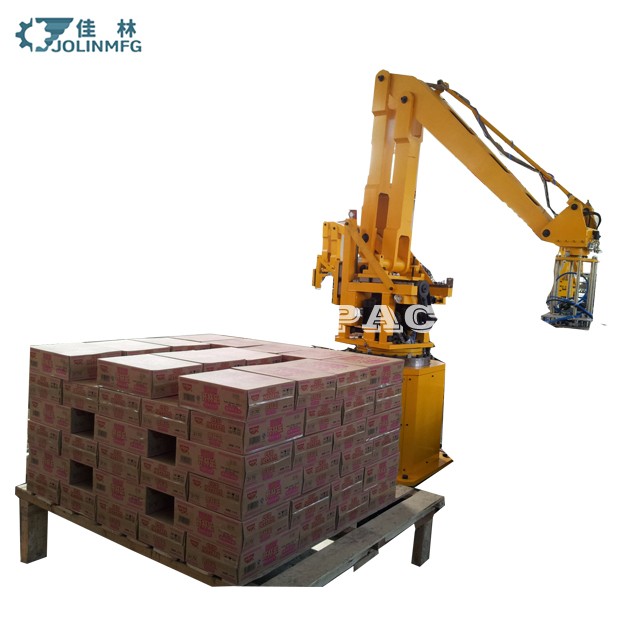

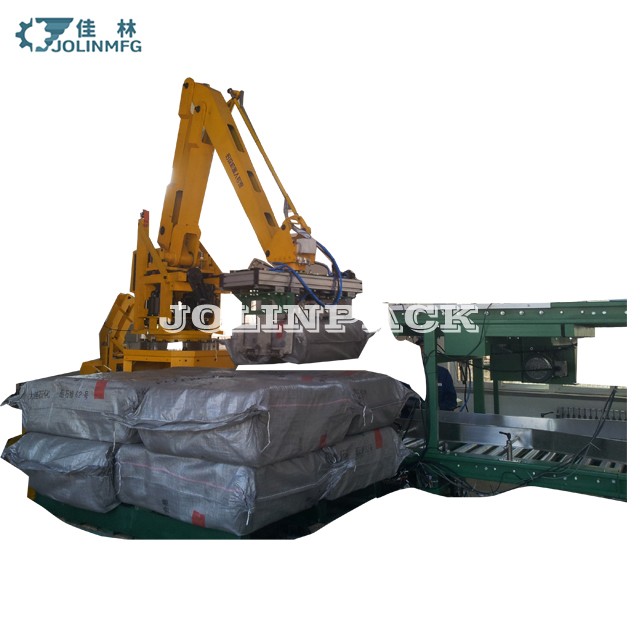

- Palletizing robot
- Pallet storing machine
- Empty pallet conveyor
- Ready pallet conveyor
- Control Infrastructure
- PLCTouch ScreenPneumatic System
