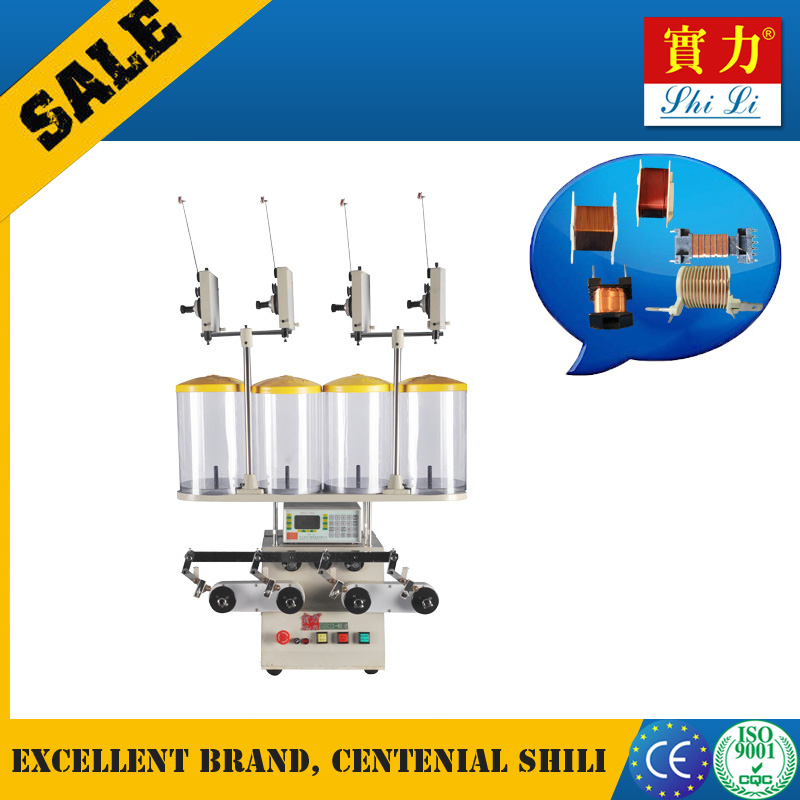

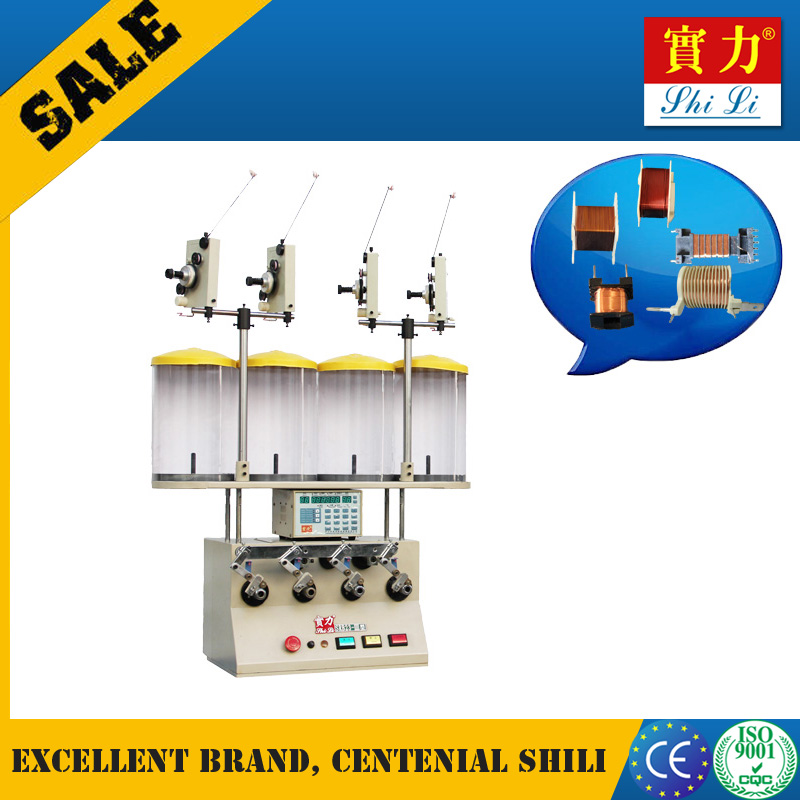

Automatic Multi-Spindle Coil Winding Machine
This machine features a four-spindle synchronous design and a cast iron body. The 32-bit controller chip ensures faster speeds and higher reliability.
Technical Specifications
Product Overview
High-Efficiency Multi-Spindle Winding
This automatic multi-spindle coil winding machine features a four-spindle synchronous design built on a robust cast iron body for high-speed, low-noise operation. Engineered for industrial assembly lines, it utilizes a 32-bit controller chip for superior reliability, high-speed performance, and precise parameter management. With support for bilingual display and power-failure data retention, this machine is an essential tool for manufacturers seeking consistent, high-quality production across a variety of components.
Technical Architecture
- Controller System
- 32-bit digital controller
- Spindle Configuration
- 4 spindles
- Key Imported Components
- Japan NSK BearingsJapan NTN BearingsJapan BANDO BeltsJapan GATES BeltsTaiwan TBI Ball ScrewsTaiwan Transducers
Operational Features
Functional Capabilities
- Self-detection with error monitoring
- Speed tracking and velocity calibration
- Programmable spindle climb-time
- Ruler function for width and start-point measurement
- Data retention during power failure
Certifications
Certifications & Standards
ISO 9001CECQC
Application Range
Suitable Applications
- EE Transformers
- EI Transformers
- Stepping Motors
- Relays
- Auto ABS Components
- Switching Power Transformers
