Automatic Metal Band Saw
This automatic band saw is designed for cutting metal with precision and efficiency. Its features include hydraulic control, automatic material feeding, and adjustable cutting speed.
Technical Specifications
Overview
High-Efficiency Automatic Metal Cutting

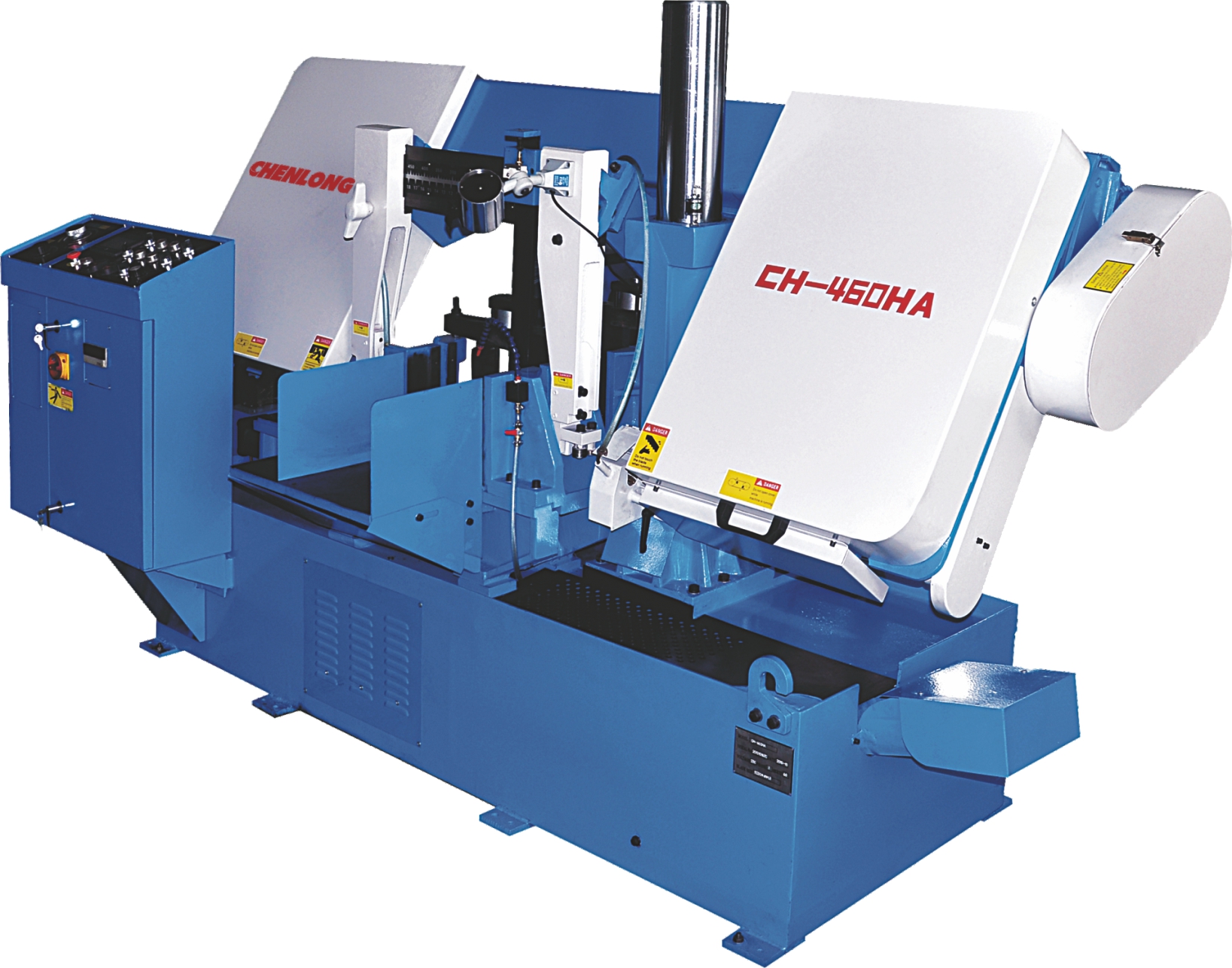

The CH-460HA is a double-column fully automatic band saw designed for high-precision industrial metal cutting. It features a robust construction that ensures stability during high-volume operations, making it ideal for processing various metal profiles. With integrated hydraulic control and automatic material feeding, this machine optimizes workflow efficiency for professional manufacturing environments.
Cutting Capacity
Maximum Cutting Capacity
460 mm
Round Bar
460 mm
Square/Quadrate
- Bundle Cutting Capacity
- 300 × 150 mm
Technical Specifications
Machine Configuration
Double ColumnFully AutomaticHydraulic Control
Power Supply
| Component | Voltage | Frequency | Power |
|---|---|---|---|
| Main Drive | 220 VAC | 50 Hz | 2000 W |
| Control System | 220 VAC | 50 Hz | 200 W |
Material Compatibility
- Supported JIS Materials
- S45CS50CSCMSUS316SUS309SUS304SKS2SKH3SKDSKT
Operational Features
Operational Capabilities
- Automatic material feeding system
- Adjustable cutting speed for different materials
- Precision hydraulic blade tensioning
- Material selection dial for optimized settings
- Stable double-column guide frame
