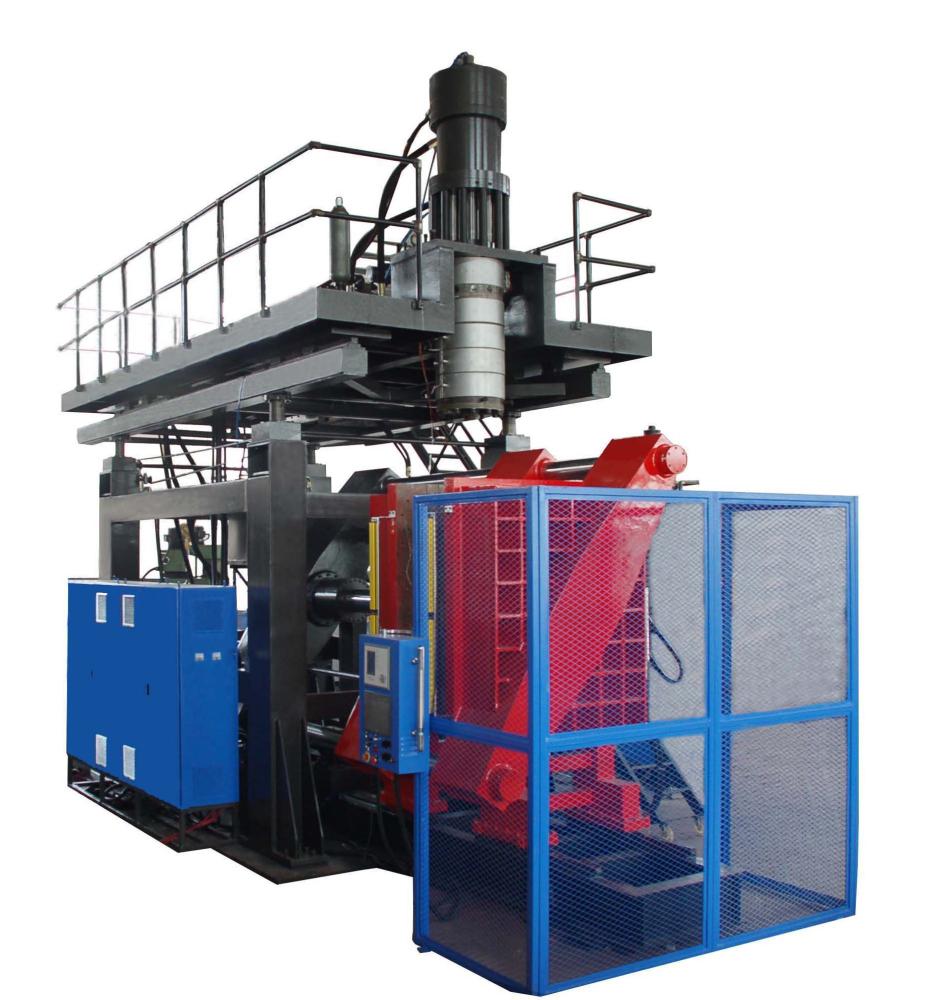

Automatic Extrusion Blow Molding Machine with MOOG Controller
This extrusion blow molding machine is designed for manufacturing hollow plastic products. It features a robust frame, a high-capacity extruder, and a precision molding system.
Technical Specifications
Overview
High-Efficiency Blow Molding Solution
The JWB120Z Automatic Extrusion Blow Molding Machine is engineered for the high-volume production of hollow plastic containers. Equipped with a precision MOOG controller, this robust system ensures consistent quality and operational efficiency. It is designed to handle demanding industrial applications, offering significant plasticizing capacity and versatile molding capabilities for large-scale production needs.
Key Performance Metrics
Performance Highlights
350 L
Max Container Capacity
280 kg/hr
Plasticizing Capacity
1,500 kN
Clamping Force
Technical Specifications
- Machine Dimensions
- 9.1 x 3.6 x 5.6 meters
- Total Weight
- 45 ton
Molding Capabilities
Platen Details
| Specification | Value |
|---|---|
| Platen Opening Stroke | 600-1400 mm |
| Platen Size | 1400 x 1750 mm |
| Max Mould Size | 1110 x 2000 mm |
| Min Mould Thickness | 610-750 mm |
Extruder & Die Head
Extruder Configuration
- Screw Diameter: 120 mm
- Screw L/D Ratio: 24
- Number of Heating Zones: 6
- Extruder Heating Power: 32 kW
- Extruder Driving Power: 90 kW
Die Head Specifications
- Max Die Pin Diameter: 500 mm
- Max Die Capacity: 25 L
- Power of Die Head: 39 kW
Power & Utilities
Energy & Power
- Pump Motor Power: 127.5 kW
- Average Energy Consumption: 152 kW
- Air Pressure: 0.18 MPa x 6
- Air Consumption: 1 m3/min
