Automatic Down and Feather Filling Machine
This automatic filling machine features double nozzles for efficient weighing and filling. It is designed for small to medium home textile manufacturers.
Technical Specifications
Overview
High-Efficiency Automatic Quilt Filling
This double-nozzle automatic weighing and filling machine is an ideal solution for small to medium home textile manufacturers looking to modernize their production. By replacing manual work with precise automatic weighing technology, it handles multi-species orders with high efficiency, specifically designed for down quilts and apparel. It represents an automation revolution for the industry, ensuring consistent quality and significant labor savings.
Performance & Capacity
Production Speed
800 lattices
Lattices per Hour

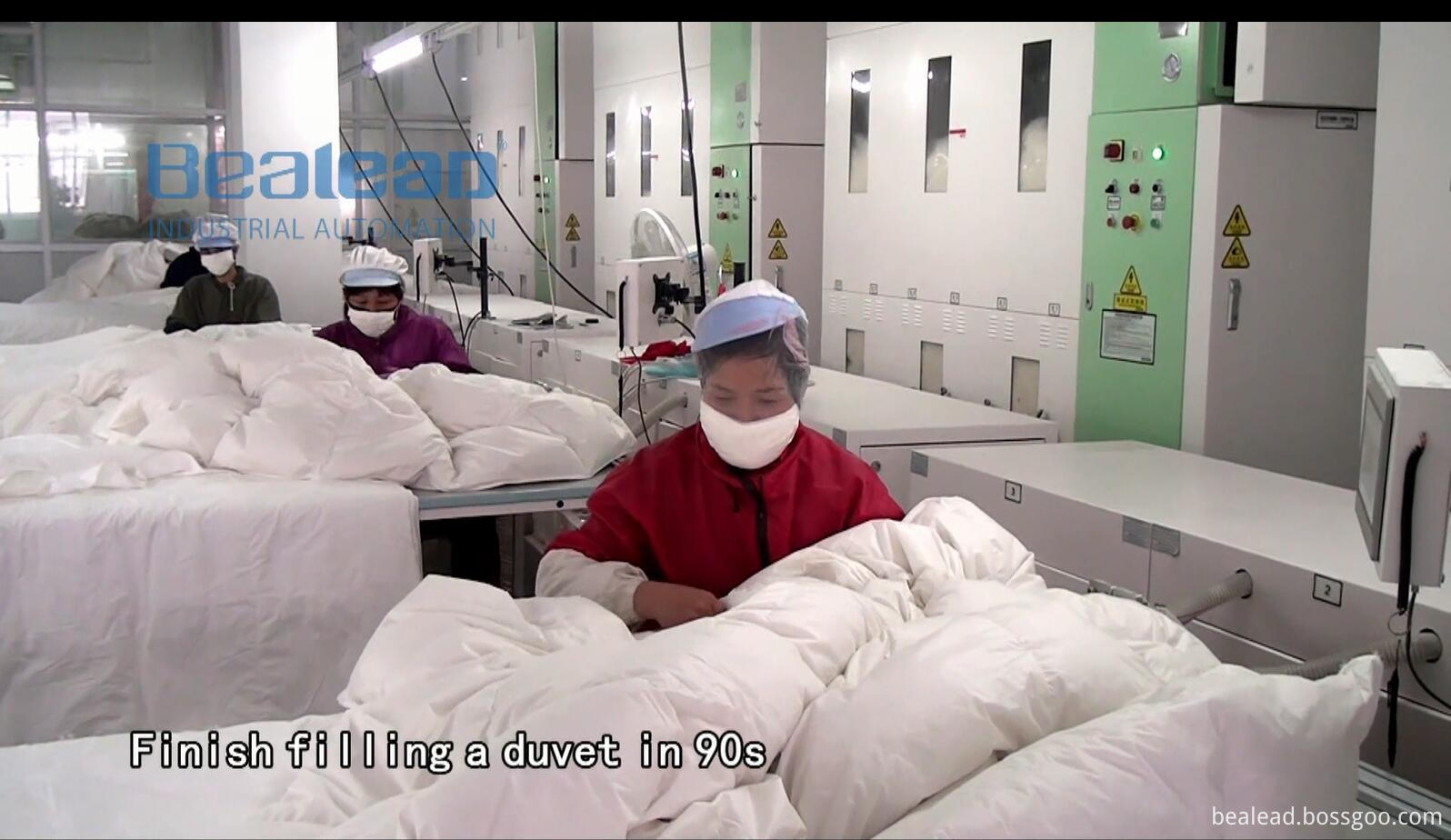

90 s
Duvet Completion
Weighing Precision
0.1 g
Accuracy
1 g
Min. Weight
80 g
Max. Weight
Technical Configuration
System Components
- 1 Feeding Unit
- 3 Weighing Units
- 1 Filling Station
- 2 Filling Pipes
- 3 Scales per filling pipe

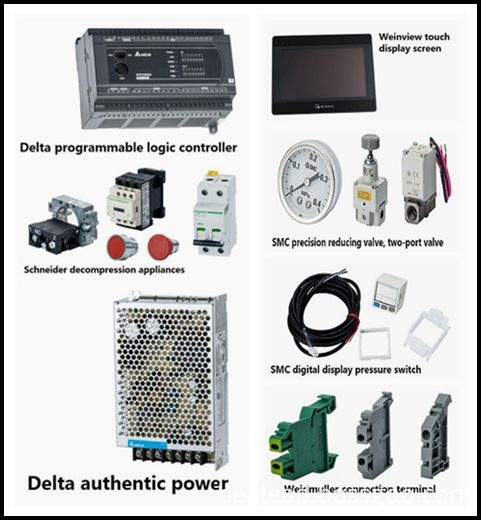

- Control & Components
- PLC Automated OperationTouch Display ScreenPrecision Reducing ValvesDigital Pressure SwitchAir Monitoring System
Material & Application
Target Industries
ApparelHome TextilesCommodity
- Material Compatibility
- 50% - 90% down
Utility Requirements
Power & Pneumatic Requirements
| Parameter | Requirement |
|---|---|
| Voltage | 380V |
| Max Power | 4.5KW |
| Air Compressor Power | 11KW |
| Air Pressure | 0.6 - 0.8 MPa |
| Air Tank Capacity | ≥2m³ |
| Air Compressor Exhaust | ≥1.6m³/min |
Physical Dimensions
- Overall Dimensions
- 2.9m * 4.7m * 3.7m
- Machine Weight
- 1300 kg
- Minimum Site Area
- 6m * 7m
Compliance
- Standards & Compliance
- CETUVEN 61000-6-4:2011EN 61000-6-2:2005
