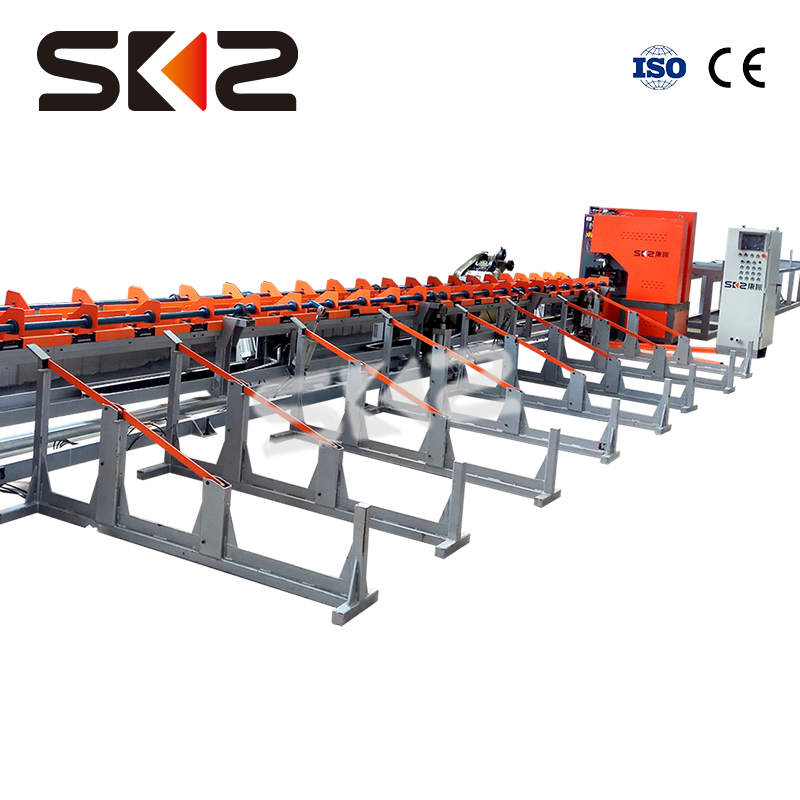

Automated Rebar Cutting Line
This automated rebar cutting line is designed for cutting rebar to specific lengths with precision. It utilizes an automated feeding and cutting process, ensuring efficient rebar processing for construction and manufacturing applications.
Technical Specifications
Product Overview
Automated Rebar Cutting Line

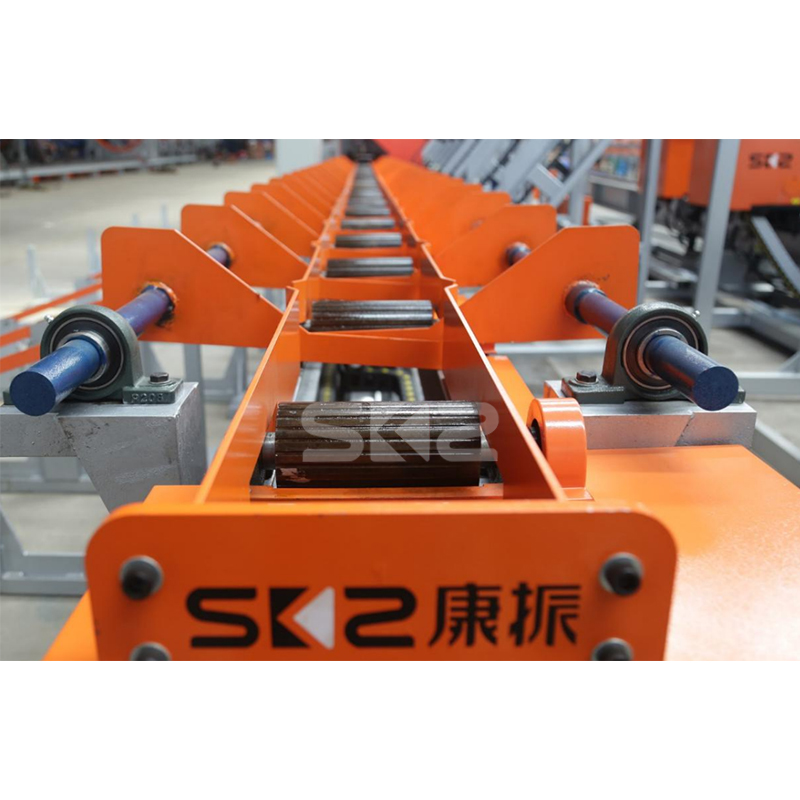

This high-performance rebar shear-line is engineered for precise cutting of large-diameter and high-strength steel bars. Designed for efficiency in construction and highway projects, it automates the cutting, sorting, and storage processes to reduce manual labor costs. The machine delivers high accuracy and consistent lengths, making it ideal for both large-scale production and small-batch processing requirements.
Technical Specifications
Max Shear Force
1,750 KN
Max Shear Force
Performance Metrics
500 Mpa
Max Yield Strength
60 m/min
Conveying Speed
25 KW
Power Rating
Cutting Capacity Table
| Diameter (φ) | Quantity |
|---|---|
| 10 | 15 |
| 12 | 12 |
| 14 | 11 |
| 16 | 9 |
| 18 | 8 |
| 20 | 7 |
| 22 | 7 |
| 25 | 5 |
| 28 | 4 |
| 32 | 3 |
| 36 | 2 |
| 40 | 2 |
Physical Dimensions
Physical Dimensions
- Weight: 8500 KG
- Dimensions (L*W*H): 25000 * 3500 * 2000 mm
Service & Support
- Standard Services
- 1-Year GuaranteeOverseas Technical SupportFree Repair ServiceProcess Design Assistance
