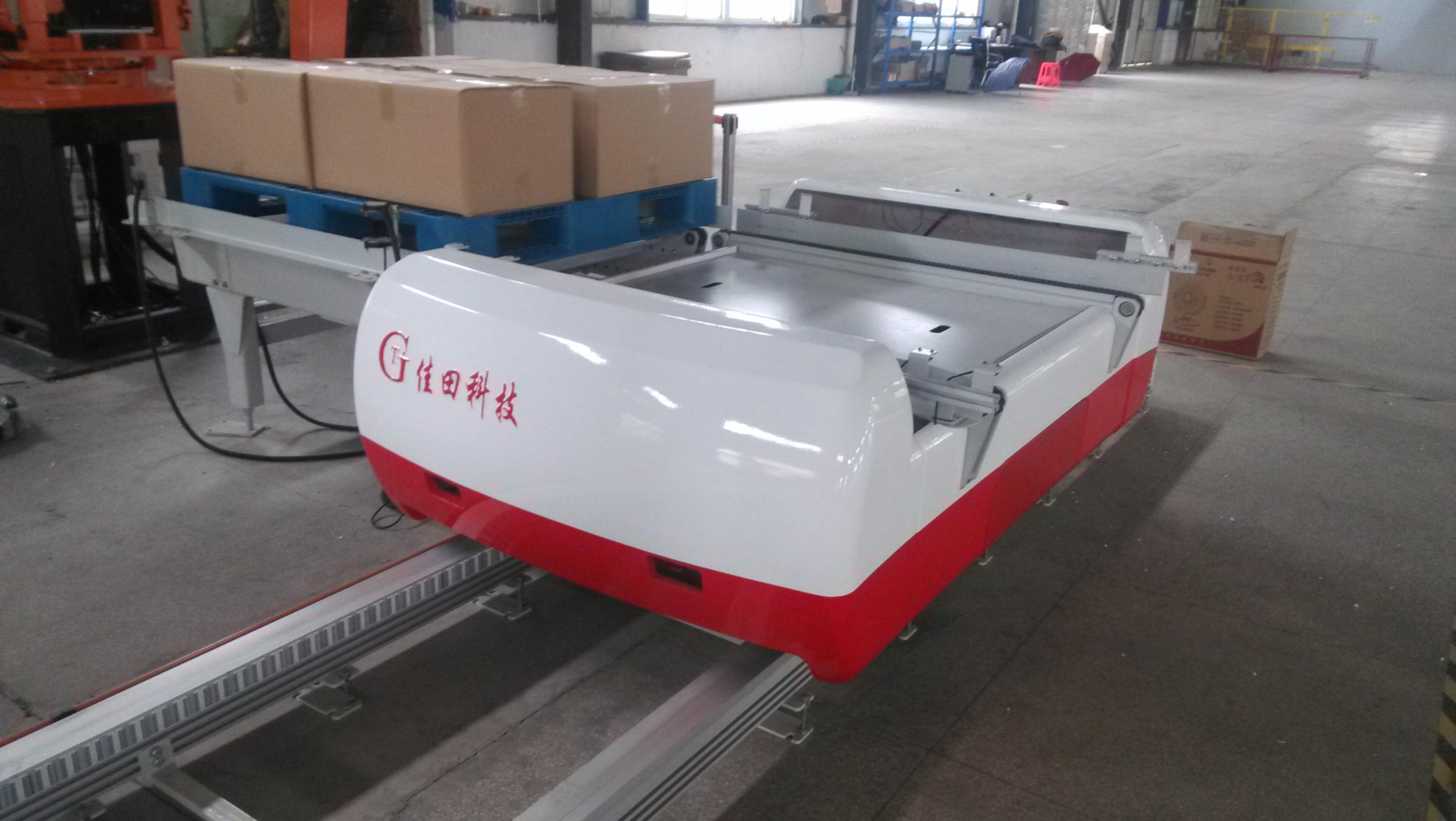

Automated Rail Guided Vehicle
Rail guided vehicle logistics equipment includes shuttle car handling and shuttle-type storage systems. The cart runs on a fixed orbit in reciprocating or loopback mode, shipping goods to the designated location or access device.
Technical Specifications
Product Overview
Automated Rail Guided Vehicle
This automated rail guided vehicle provides a highly stable and efficient solution for continuous industrial material transit. Utilizing advanced technology and high-quality imported key components, the system ensures precision through a responsive electronic control system. Designed with a triple-layered safety protection system, it offers reliability for high-speed material handling in demanding environments.
Performance Metrics
Operational Performance
2,000 kg
Max Loading Capacity
280 m/min
Max Running Speed
30 m/min
Max Transferring Speed
Technical Specifications
Positioning Accuracy
| Movement Type | Accuracy |
|---|---|
| Running | ±3mm |
| Transferring | ±5mm |
Max Acceleration
- Running: 0.8m/s²
- Transferring: 0.4m/s²
System Design
Safety Systems
- Triple-level protection (mechanical, electrical, software)
- Rubber deceleration at ends
- Wireless optical communication
- Rail & Construction
- Fixed RailSimplified StructureAluminium or Steel Options
Operational Details
Operation Modes
AutomaticSemi-automatic
