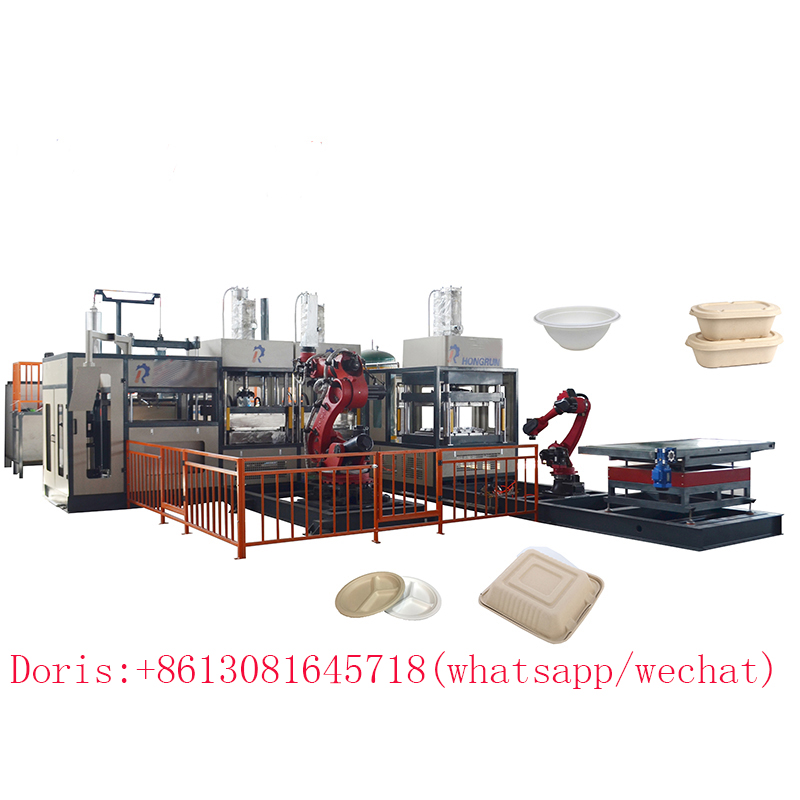

Automated Pulp Molding Tableware Production Line
This automated pulp molding machine is designed for producing disposable tableware. The system integrates pulp molding, robotic handling, and automated stacking to efficiently manufacture eco-friendly plates, bowls, and containers.
Technical Specifications
Product Overview
Automated Pulp Molding Tableware Production Line
This fully automatic intelligent production line integrates advanced robotics with a precision molding system to transform plant fiber pulp into high-quality disposable tableware. Designed for efficiency and sustainability, the system utilizes raw materials such as reed, straw, bagasse, bamboo, and wood to create biodegradable products. With PLC-controlled operations and automated handling, it provides a flexible, safe, and stable solution for the food processing and catering industries.
Performance Metrics
Key Performance Indicators
600 kg/day
Design Capacity
28 tons
Max Boost Pressure
100 mm
Max Product Height
Technical Specifications
Compatible Raw Materials
- Reed
- Straw
- Bagasse
- Bamboo
- Wood pulp
- Template Dimensions
- 880 x 880 mm
- Heating Options
- Thermal oilElectricSteam
Equipment Composition
System Components
| Component | Quantity |
|---|---|
| Six-axis Robot | 1 |
| Four-axis Robot | 1 |
| Reciprocating Molding Machine | 1 |
| Hot Pressing Machine | 2 |
| Automatic Trimming Machine | 1 |
| Automatic Counting Stacker | 1 |
Operations
- Control System
- PLC + touch screen control (Siemens components)
- Transfer Method
- External robot automatic transfer
Applications
Applicable Industries
Food processingFood supplyCatering
