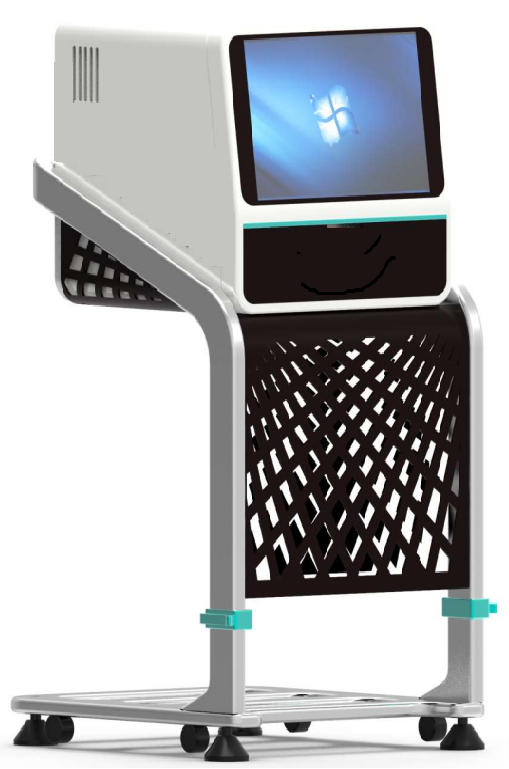

Automated Optical Inspection System for PCB Assembly
This automated optical inspection (AOI) system is designed for printed circuit board (PCB) component verification. The system uses dual CCD cameras and software to identify and verify the presence and correct placement of components.
Technical Specifications
Overview
High-Precision Automated Optical Inspection
This automated optical inspection system is engineered for PCB assembly lines, providing reliable visual verification and quality control. By leveraging advanced image analysis and adaptive learning algorithms, it minimizes manual labor while maximizing inspection accuracy for components like capacitors, inductors, and integrated circuits. The system supports seamless integration with higher-level automation systems for real-time data exchange and traceability.
Inspection Capabilities
- Core Inspection Tasks
- Component Presence VerificationCorrect Placement CheckDimension MeasurementBarcode ReadingCharacter Inspection

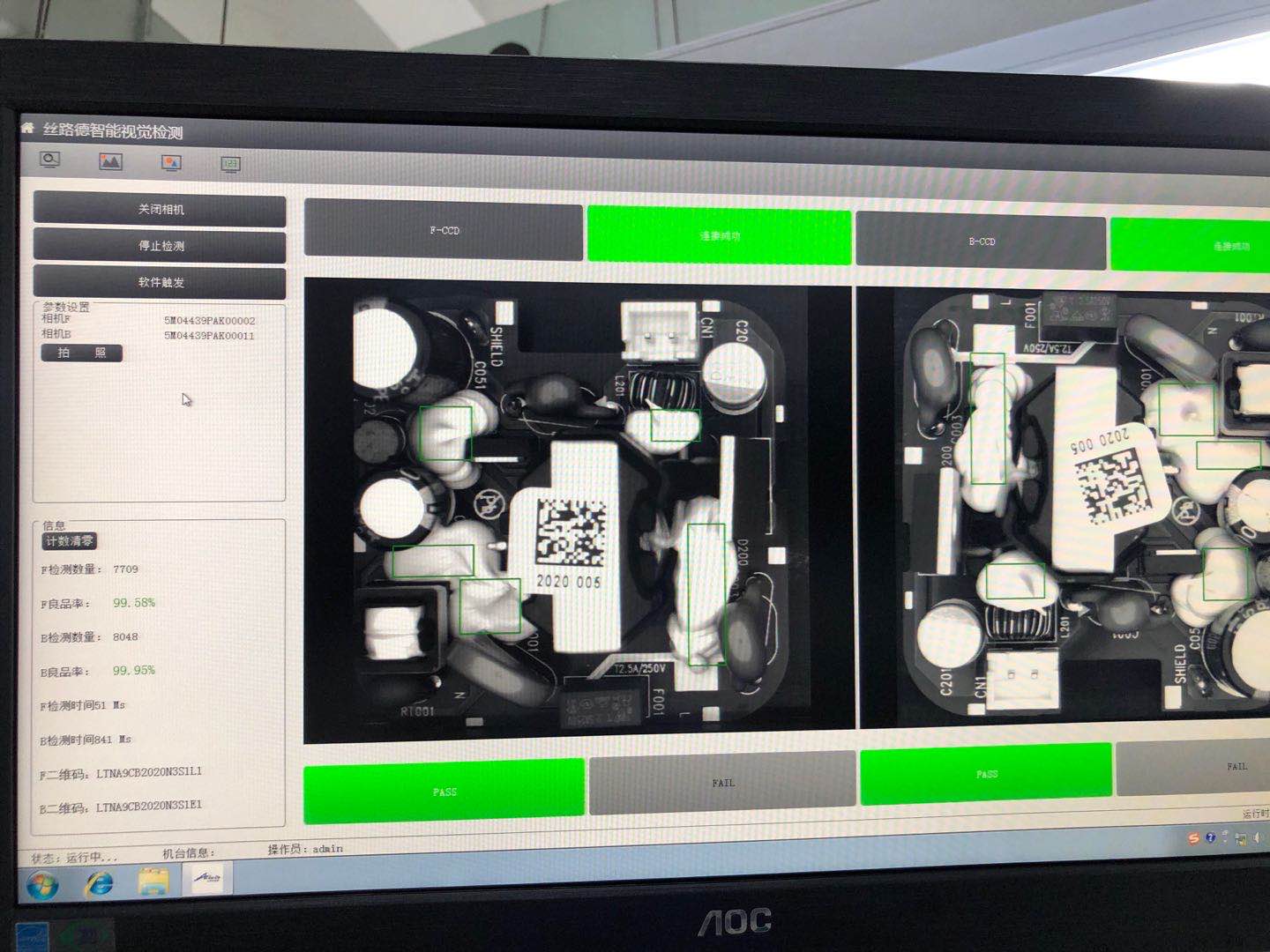

Performance Metrics
Operational Performance
99.71 %
F-Side Yield Rate
99.84 %
B-Side Yield Rate
176 Ms
F-Side Inspection Time
814 Ms
B-Side Inspection Time
System Features
Key Features
- Independent operation and judgment
- Adaptive learning algorithm for performance improvement
- Data mining and simulation modeling
- Information exchange with automation systems
- High-speed component verification
System Status
RunningConnectedAutomated
Technical Specifications
Camera Configuration
| Component | Role |
|---|---|
| F-CCD | Front-side image capture |
| B-CCD | Back-side image capture |
