Automated Optical Inspection (AOI) System for PCBAs
This automated optical inspection system is designed for printed circuit board assemblies (PCBAs). The system utilizes dual cameras to perform visual checks of component placement, orientation, and potential defects, providing real-time feedback.
Technical Specifications
System Overview
Advanced Automated Optical Inspection
This Automated Optical Inspection (AOI) system is designed for high-precision inspection of printed circuit board assemblies (PCBAs). It utilizes dual-camera technology to provide reliable, automated visual checks for component presence, placement, and orientation. By integrating advanced learning algorithms and data mining, the system offers adaptive performance improvements, reduces manual labor, and significantly enhances overall production quality.
Key Features
Inspection Capabilities
- Accurate positioning and alignment
- Component presence and orientation inspection
- Dimension measurement
- Barcode reading
- Character inspection
- Defect detection
- Operational Benefits
- Reduced manual workLower operation costsImproved work efficiencyAdaptive learning algorithmsAutomated data logging
Performance Metrics

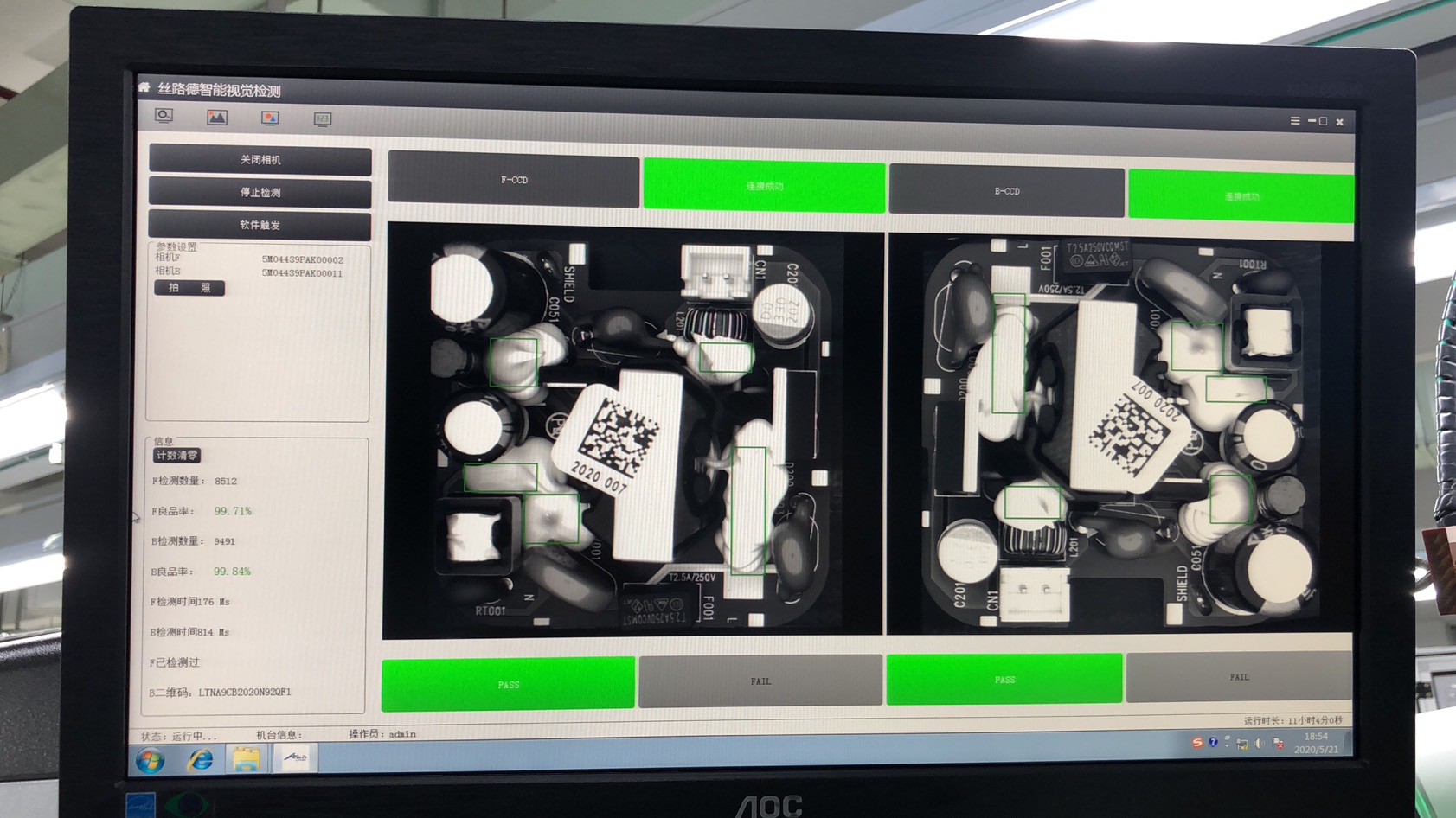

Live Inspection Statistics
99.71 %
Front Camera Yield Rate
99.84 %
Back Camera Yield Rate
176 ms
Front Inspection Time
814 ms
Back Inspection Time
Technical Specifications
Hardware Configuration
| Component | Specification |
|---|---|
| Imaging System | Dual Camera (F-CCD and B-CCD) |
| Design | Mobile cart with adjustable height |
| Interface | High-resolution display |
| Connectivity | Automation system integration ready |
