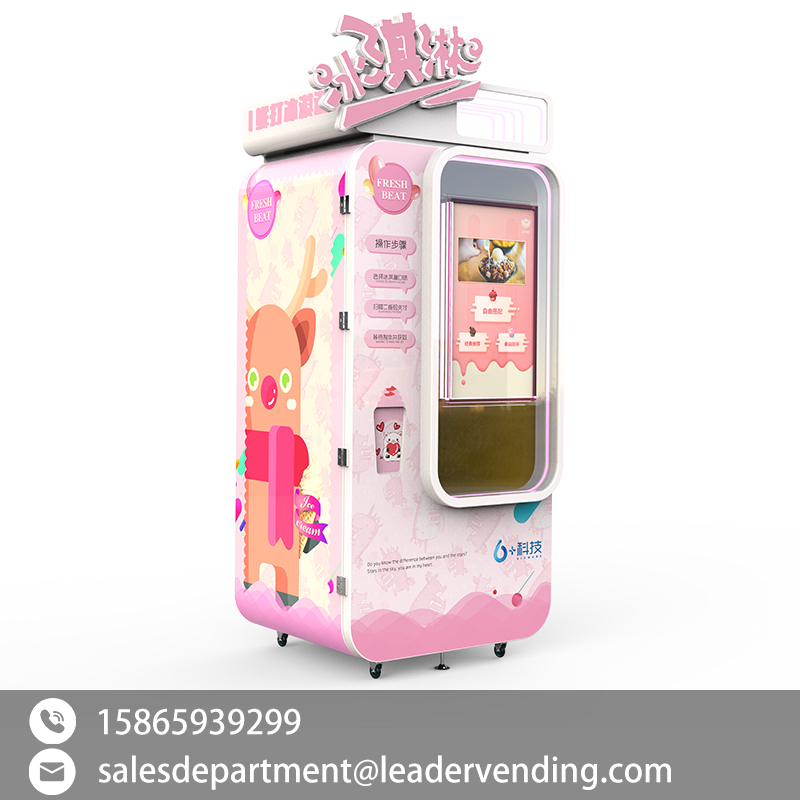

Automated Ice Cream Vending Machine
This automated ice cream vending machine offers a convenient and efficient way to dispense frozen treats. Featuring a user-friendly interface with a touchscreen display, it allows customers to easily select and purchase their desired ice cream products.
Technical Specifications
Overview
Automated Ice Cream Vending Solution
This high-performance automated ice cream vending machine is designed to deliver consistent, high-quality frozen desserts with minimal human intervention. Featuring a proprietary puffing system and advanced refrigeration, it ensures a superior taste profile that rivals traditional ice cream parlors. With integrated smart cloud management, remote fault diagnosis, and a robust mechanical arm system, this machine offers a reliable and profitable solution for high-traffic commercial locations.
Technical Specifications
Power Requirements
2,000 W
Max Output
200 W
Standby Power
10 A
Current
- Bare Machine Dimensions
- 960mm (W) x 880mm (D) x 1950mm (H)
- Dimensions (with Top Sign)
- 960mm (W) x 880mm (D) x 2230mm (H)
- Net Weight
- 360 KG
Performance & Capacity
Dispensing Modules
- 1 Milk Slurry/Powder Device
- 3 Jam Devices
- 3 Condiment Devices
- Production Capabilities
- 14 Sundae Types120 Ice Cream Variations15s Preparation Time
- Cup Capacity
- 300 cups
Smart Features
Cloud Platform Functions
Remote Fault DiagnosisReplenishment RemindersBig Data AnalysisAdvertisement ManagementMembership SystemCoupon Generation
- Payment Integration
- WeChat PayAlipayBanknote CollectorCoin CollectorCard Reader
Safety & Compliance
Safety Protection
- 3-Way Security Protection
- Intelligent Anti-Pinch Devices
- UV Timed Sterilization
- Pasteurization Module (Pro Version)
Components
Component Brands
| Component | Brand/Origin |
|---|---|
| Compressor | Embraco |
| Sensor | Omron |
| Switching Power | MEANWELL |
| LCD Display | BOE |
