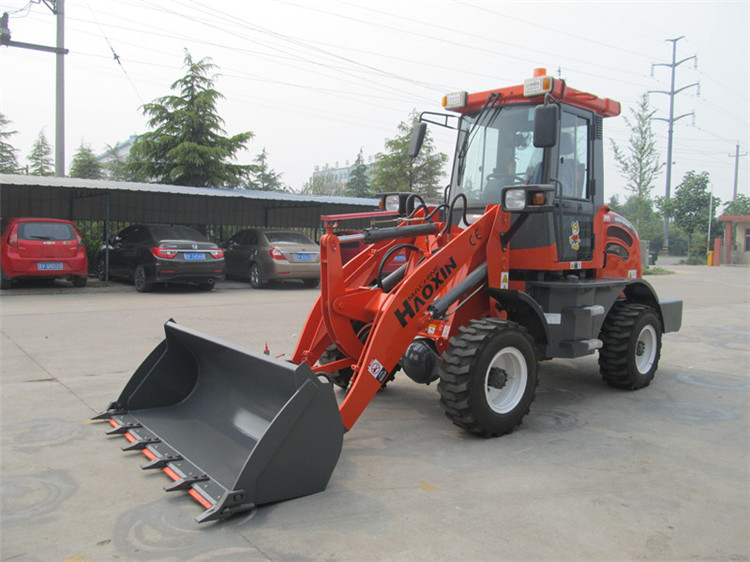

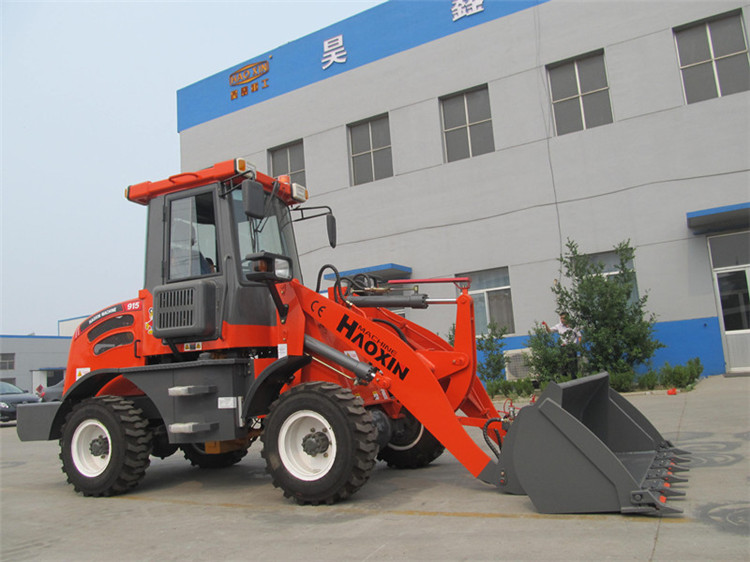

Articulated Mini Wheel Loader with 0.7 CBM Bucket
This articulated mini wheel loader has a 0.7 CBM bucket capacity. It is powered by a Xinchai 498 or Yunnei 490 engine and offers a 2900mm dumping height.
Technical Specifications
Overview
Versatile Articulated Mini Wheel Loader
This articulated mini wheel loader features a streamlined design and robust construction, ideal for construction, agricultural, and landscaping applications. Equipped with a high-capacity 0.7 CBM bucket and powerful hydraulic systems, it offers excellent maneuverability in confined spaces. The operator cabin is designed for comfort and safety, featuring adjustable seating and optional climate control for enhanced productivity.
Key Performance Metrics
Performance Highlights
1,500 kg
Rated Load
43 KN
Max Breakout Force
2,900 mm
Max Dump Height
Technical Specifications
Dimensions
| Parameter | Value |
|---|---|
| Overall Weight | 3500 kg |
| Bucket Capacity | 0.7 CBM |
| Min Turning Radius | 3000 mm |
Engine Specifications
- Model: XINCHAI498 (EURO III)
- Type: In-line, Water cooling, four-stroke
- Rated Power: 36.8 kw
- Rated Speed: 2200 r/min
Transmission & Steering
- Torque Converter: YJ240 (Single-phase single-stage radial-inward turbine triplex)
- Gearbox: Fixed-spindle power shift
- Gears: 2 ahead, 2 astern
- Steering: Articulated hydraulic
- Turning Angle: 30±1°
Features & Compatibility
Cabin Comfort & Safety
Adjustable seatAdjustable steering wheelAir conditioner (optional)Back camera (optional)
- Compatible Attachments
- Pallet forkPipe forkSnow bladeSweeperLawn mower
- Bucket Automation
- Yes
