Animal Feed Pellet Mill

This flat die pellet machine is designed for pelletizing coarse fibers and materials difficult to shape. It can also be used for granulation of low-temperature materials like biological bacterial fertilizer, organic fertilizer, and compound fertilizer.

Request a Quote Download PDFPDF

Animal feed making equipment pellet mill for feed - Image 1

Technical Specifications

Overview

Versatile Flat Die Pellet Solution

The 9KJ Series Flat Die Pellet Machine is engineered for the efficient pelletizing of challenging materials with low bonding rates, such as sawdust, rice husk, and various crop straws. Beyond animal feed production, it is highly effective for processing household refuse, waste plastics, and organic fertilizers. This robust machine is an ideal choice for small to medium-sized feed mills and compound fertilizer factories looking for reliable, low-temperature granulation.

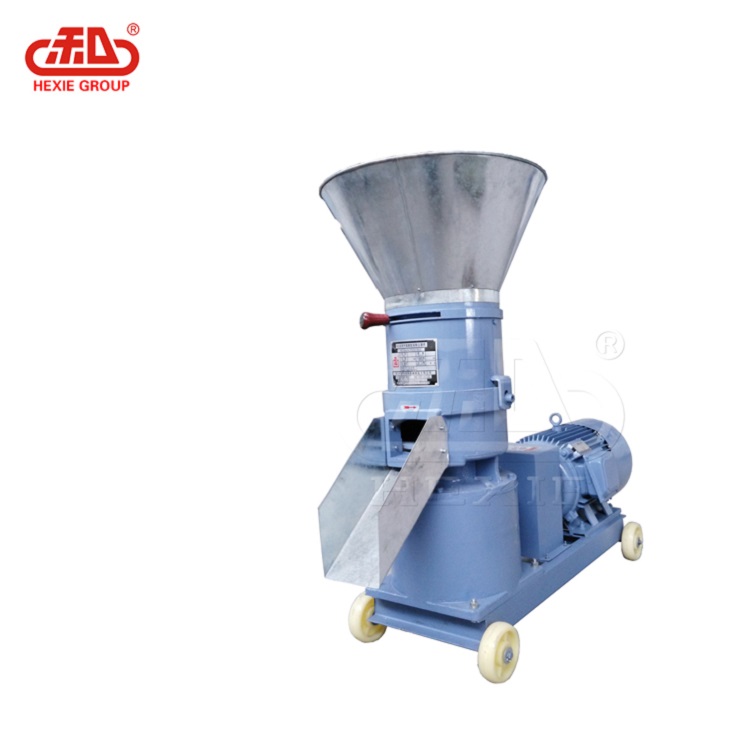

Flat Die Pellet Mill Unit — A robust flat die pellet mill featuring a feeding hopper and wheeled base for mobility.

Technical Specifications

Model Performance Data

Model	Power (kW)	Drive Mode	Rollers (pcs)	Capacity (t/h)
9KJ-200	7.5	Gear Driving	2	0.2-0.4
9KJ-260	15/18.5	Gear Driving	2	0.4-0.7
9KJ-350	22/30	Gear Driving	3	0.6-1.2
9KJ-400	37	Inclined tooth surface reducer	3	0.4-0.6

Condition

New

Mill Type: Flat Die Pelletizer

Applications

Processable Materials: SawdustRice huskCotton stalkCotton seed hullWeedsCrop strawHousehold refuseWaste plasticsBiological bacteriaOrganic fertilizer
